When choosing a Mini Junction Box, several key aspects must be considered.
View More
Made from Nylon PA66 can resistant to Salt water, gasoline, alcohol, oil, grease, easter keyton ether, benzine, common solvent, weak acids & weak alkalies.
Inquiry Now >>

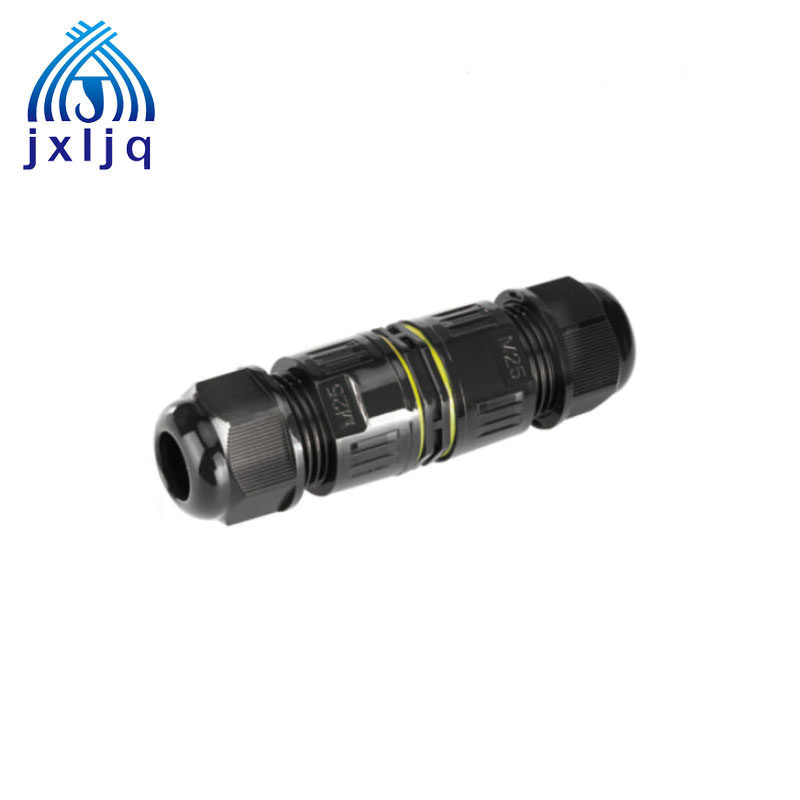

JX-XM25
|
Model |
M25-21 5-8 |
M25-22 9-12 |
M25-23 10-14 |
M25-24 5-8 |
M25-25 9-12 |
M25-26 10-14 |
M25-27 5-8 |
M25-28 9-12 |
M25-29 10-14 |
M25-30 5-8 |
M25-31 9-12 |
M25-32 10-14 |
|
Quantity/bag |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
|
core |
2芯 core |
2芯 core |
3芯 core |
3芯 core |
3芯 core |
4芯 core |
4芯 core |
4芯 core |
5芯 core |
5芯 core |
5芯 core |
5芯 core |
|
Cable range(mm) |
5-8 |
9-12 |
10-14 |
5-8 |
9-12 |
10-14 |
5-8 |
9-12 |
10-14 |
5-8 |
9-12 |
10-14 |
|
Per Pcs weight (g) |
44.2 |
40.8 |
39.6 |
44.2 |
42.8 |
41.6 |
46.2 |
44.8 |
43.6 |
48.2 |
47 |
45.8 |
|
one carton weight (kg) |
16.3 |
5.8 |
15.4 |
17 |
16.6 |
16.1 |
17.7 |
17 |
16.8 |
18.5 |
18 |
17.6 |

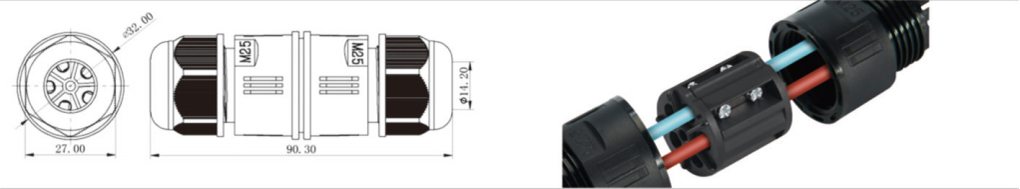

1.Insert the wire into the hole of the copper piece, then fasten the handle (as shown)
2.Install the locking torque of 0.6-0.8 N.M, not too large torque, affect product performance
3,Assembly gap should be less than 0.2 mm, assembly should be tight, not loose

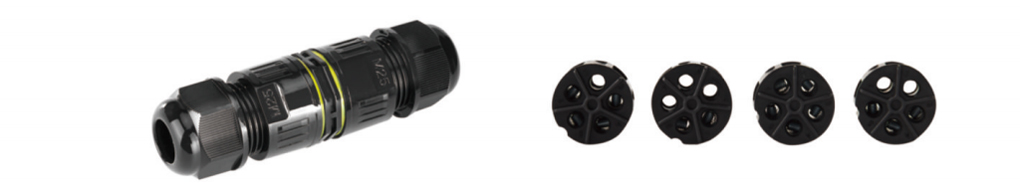

4, Optional wire clip plug specifications (as shown in Figure )
Protection Grade: lP68
temperature resistance: -40°℃ to 105°℃
storagetemperature: room temper
main material: nylon PA66 (flame retardant)
o-ring material: silicone (environmental protection material)
applicable cable scope: Φ3-6.5 Φ9-12 Φ10-14
wiring method: screw crimping
conductor material: Y2 brass nickel plated high quality stainless steel
Applicable Line Square number: 0.5~2.5mm
test voltage: 2500v
rated voltage/current: 400V/25A
flame retardant grade: V0
package quantity: 10pcs per bag,24 bags per carton,carton size: 49cm*35cm*23cm
