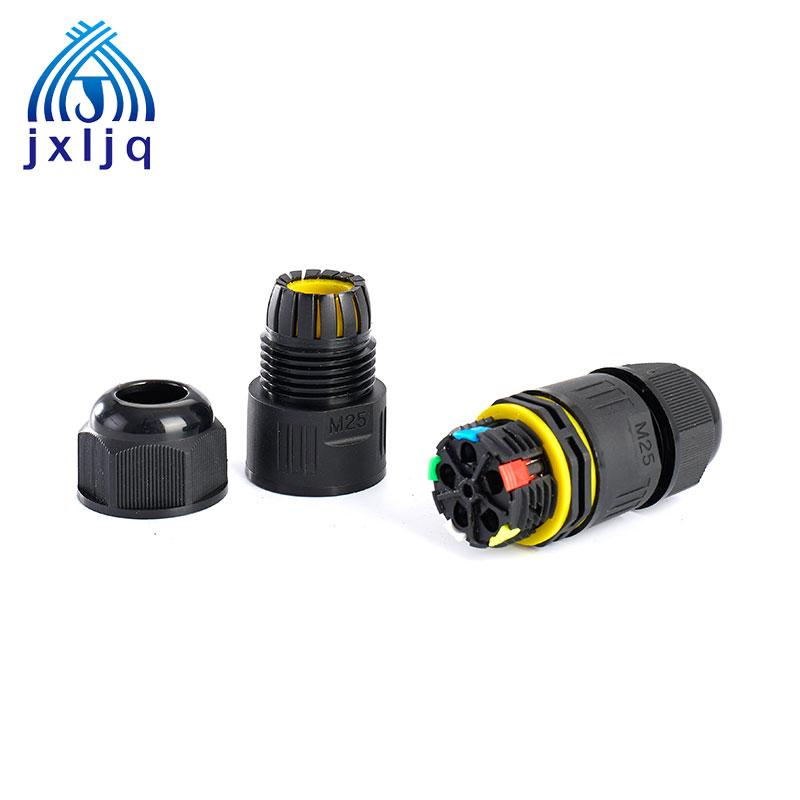

RUSealing Nut
To reach the high quality production standard, we make each step of production strictly. The inner thread is smooth without burr.
Made from Nylon PA66 can resistant to Salt water, gasoline, alcohol, oil, grease, easter keyton ether, benzine, common solvent, weak acids & weak alkalies.

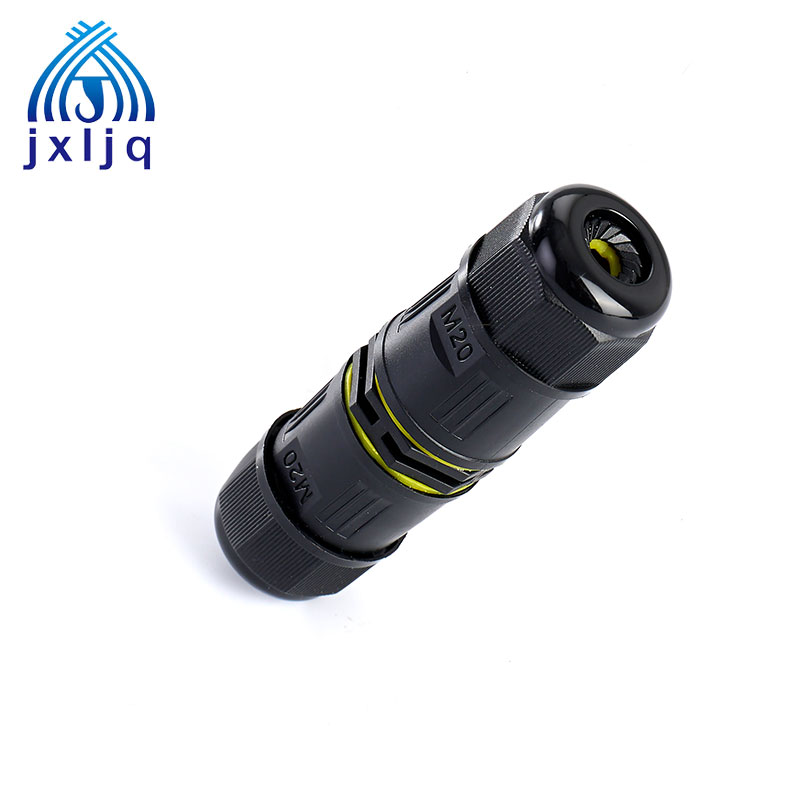

| ltem Name | IP68 Waterproof Cable Connector |
| Material | Nylon PA66 + Silicon Rubber |
| Approvals | IP68, ISO9000, CE, UL-94VO |
| Working Temperature | -40°C~+105°C |
Inquiry Now >>
Excellent Materials
Simple installation

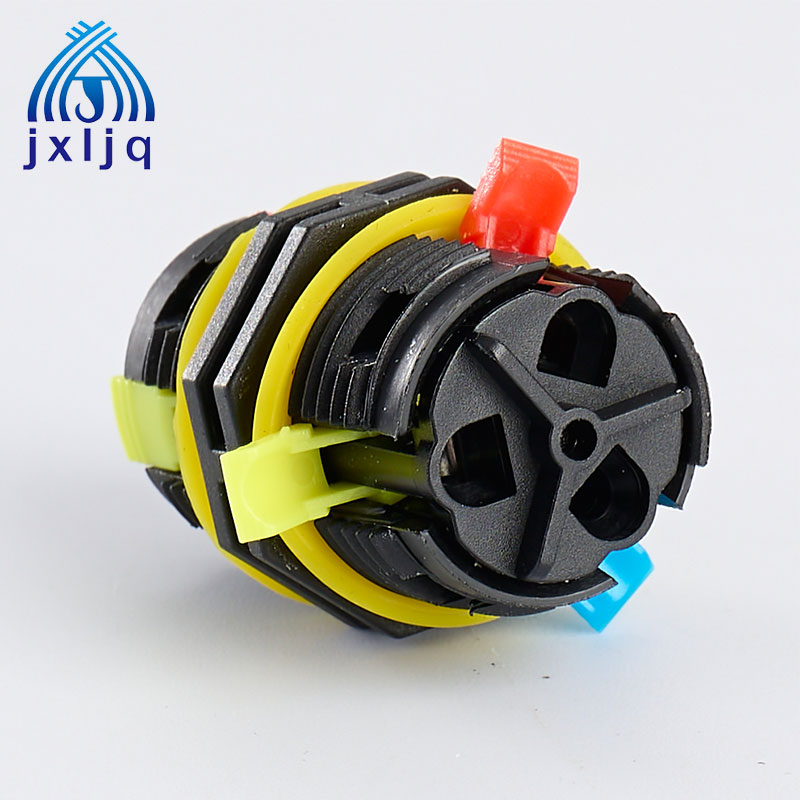

Tension locking
Waterproof,Dustproof
Efficient work
Precision design

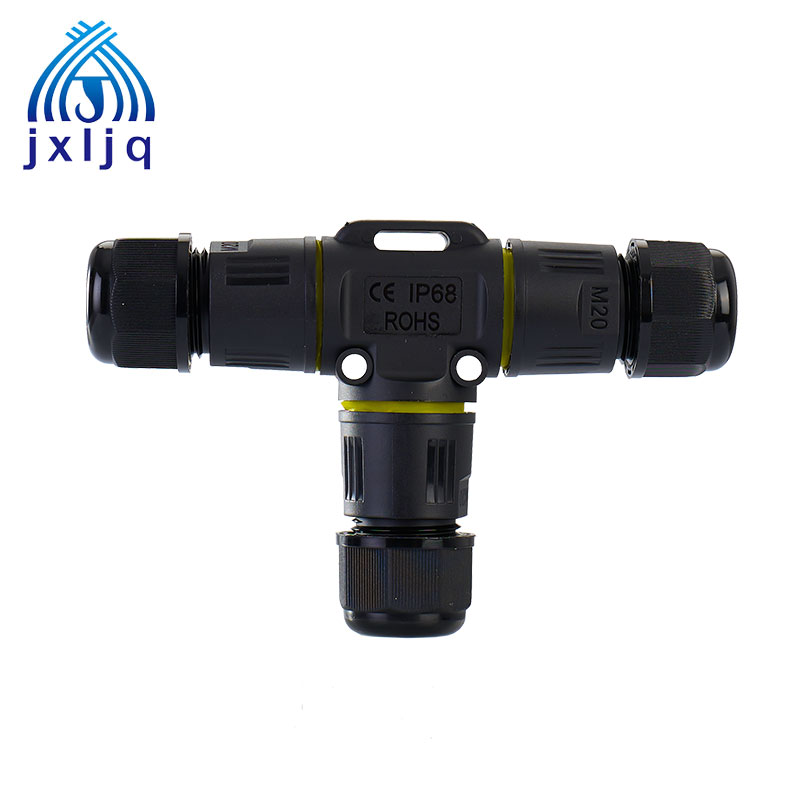

The waterproof cable connector allows a workaround for open air splices. It allows for the easy extension of wires, while adhering to the building code. Jixiang Connector is the leading manufacturer in China, we supply high quality waterproof cable connector which are made of durable plastic and copper alloy and will withstand all of the outdoor elements.
The waterproof cable connector as a cost effective solutions, designed to connect in a quick and dafety way in permanent and temporary installations, can be applied in PV inverter, Electric vehicle, Medical equipment, Interactive Smart Grid, Automation machine, Industrial PC, Marine device, Outdoor LED display, Outdoor LED lighting, etc.
| Model Size | cores | Voltage | Electric Current | Cross Section | Cable Range | Length |
| M16 | 2P/3P | 400V | 7.5A | 0.5-1.5m㎡ | 3-6.5mm 7-10mm |
|
| M20 | 2P/3P | 400V | 24A | 0.5-2.5m㎡ 0.3-1.5m㎡ |
5-8mm 9-12mm |
87.7mm |
| M25 | 2P/3P 4P/5P |
400V | 24A | 2P/3P/4P: 0.5-2.5m㎡ 5P:0.5-2.5m㎡ |
5-8mm 9-12mm 10-14mm |
100mm |
| M25-T | 2P/3P | 400V | 24A | 0.5-6.0m㎡ | 5-9mm 9-12m 10-14m |
100mm |
To reach the high quality production standard, we make each step of production strictly. The inner thread is smooth without burr.
Smooth surface without burr Can work underwater for a long time Protect from being corrupted.
Guarantee the safety of connection simple to tight the screw.

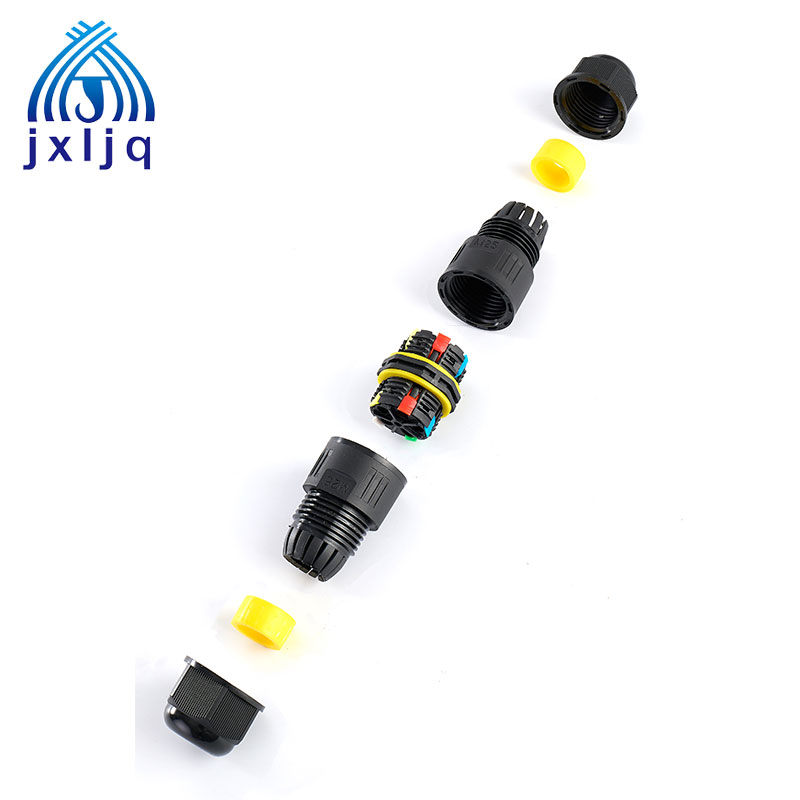

Easy to assemble seal and clamp
Can clamp the wires tightly Have a strong tensile resistance Bigger cable range
