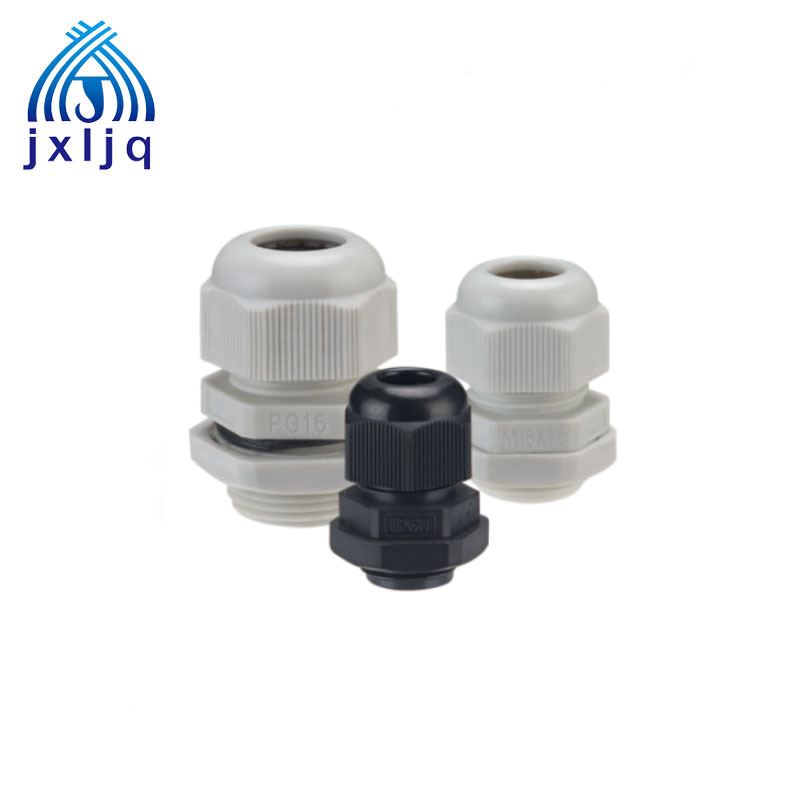

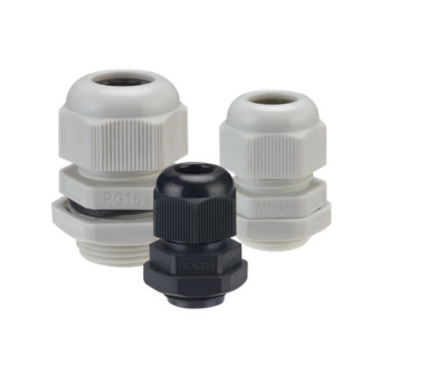

Standard Nylon Cable Gland

Material: Nylon PA66,NBR

Thead specification: Metric,PG,G,NPT.

Working temperature:-40℃ to 1000C instatic state, instantaneous heat resistance up t0 1200℃,-20℃ to 80℃ in dynamic state, instantaneous heat resistan up to 100℃.

Characteristics: Special design of clamping dia and rubber part, large range in clamping cable,ultra-strong stretching resistance,waterproof, dustpoof,and high ability to resist, salt, acid,alkali, alcohol, grease and common slovent.

Color:Black, grey as special colors(white,red,blue,dark grey)that can be designed at request.

Model

Thread O.D. mm

Hole size(mm)

Thread Length mm

Body Thickness mm

Cable RangeΦ(mm)

Spanner Size A&F(mm)

JX-PG7

12.5

Φ12.6-13

9

3

3.5~6.5

18/16

4JX-PG9

15.2

Φ15.3-15.5

9

3

4~8

22/19

JX-PG11

18.6

Φ18.7-19

9

3

5~1o

24/22

JX-PG13.5

20.4

Φ20.5-21

9

4

6~12

27/24

JX-PG16

22.5

Φ22.6-23

10

5

10~14

30/27

JX-PG19

24

Φ24.2-24.5

10

5

12~16

30/28

JX-PG21

28.3

Φ28.5-29

12

5

13~18

36/33

JXx-PG25

30

Φ30.2-30.5

12

6

16~21

37/35

Jx-PG29

37

Φ37.2-37.5

12

6

18~25

45/42

Jx-PG36

47

Φ47.3-48

17

7

22~32

58/52

Jx-PG42

54

Φ54.5-55

19

7

32~38

65/60

Jx-PG48

59.3

Φ60-61

19

7

37~44

70/69

Jx-PG63

71

Φ71.5-72

27

19

42~51

83/75

Model

Thread O.D. mm

Holesize (mm)

Thread Length mm

Body Thickness mm

Cable Range Φ (mm)

SpannerSize A&F(mm)

JX-M12

M 12x1.5

Φ12.2-12.5

9

3

3-6.5

18/16

JX-M16

M16x 1.5

Φ16.2-16.5

9

3

4~8

22/19

JX-M18

M18X1.5

Φ18.2-18.5

9

3

5-10

24/22

JX-M20

M20X 1.5

Φ20.2-20.5

9

5

6~12

27/24

JX-M22

M22X1.5

Φ22.2-22.5

10

5

10-14

30/27

JX-M24

M24X1.5

Φ24.2-24.5

10

5

12-15

33/28

JX-M25

M25 xl.5

Φ25.2-25.5

10

5

13-15

33/28

JX-M25

M25 xl.5

Φ25.2-25.5

12

5

13-18

33/30

JX-M25

M25 xl.5

Φ25.2-25.5

12

5

9-16

33/33

JX-M27

M27X1.5

Φ27.2-27.5

12

5

13-18

35/33

JX-M30

M30X1.5

Φ30.2-30.5

12

6

16-21

37/37

JX-M32

M32X1.5

Φ32.2-32.5

12

6

16-21

39/35

JX-M36

M36X1.5

Φ36.2-37

12

6

18-25

45/42

JX-M40

M40X1.5

Φ40.2-41

17

7

22-30

52/52

JX-M50

M50X1.5

Φ50.5-51

19

10

32-38

60/60

JX-M63

M63 xl.5

Φ63.5-64

19

10

37-44

74/69

JX-M72

M72X1.5

Φ72.5-73

27

10

45-50

88/78

JX-M75

M75X2

76

26

10

45-50

88/78

JX-M80

M80X2

81

28

11

60-70

90/97

JX-M88

M88X2

89

28

11

60-70

98/97

JX-M100

M100X2

102

29

11

80-90

110/115

JX-MU4

M114X2

116

29

11

80-90

122/115
