When choosing a Mini Junction Box, several key aspects must be considered.
View More
Special design of clamping claws and clamping ring, wide range of clamping cable, strong tensile strength, waterproof, dustproof, salt-resistant, weak acid, alcohol, oil, grease and general solvents.
Inquiry Now >>
Working temperature:-40°C to +130°C
Product material: PA nylon new material

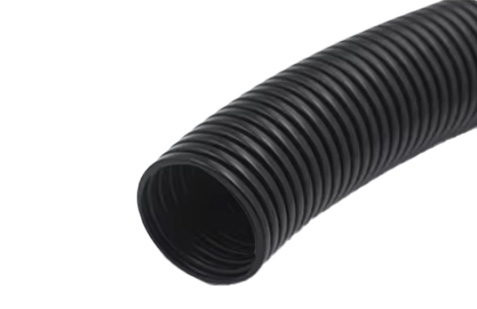

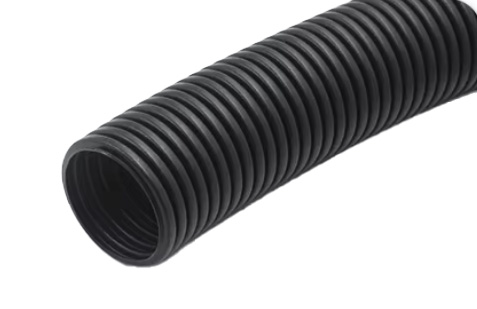

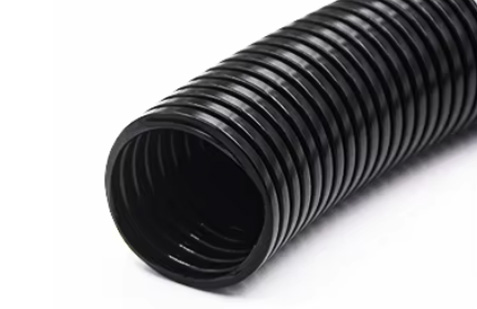

How touse:Quick coupling is a supporting product of wave tube, which can be connected to the equipment box,
lt can also be used according to the selection of thread access to the inlet and outlet of the internal thread of the electric equipment,
All you need is the hose insertion connector.
|

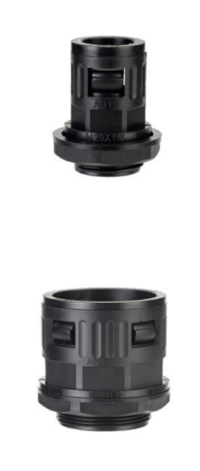

Hose connector
|
AD adapter hose |
Thread metric |
Package pcs/bag |
|
JX-AD10 |
M10*1.5 |
100 |
|
|
JX-AD10 |
M12*1.5 |
100 |
|
|
JX-AD10 |
M16*1.5 |
100 |
|
|
JX-AD13 |
M12*1.5 |
100 |
|
|
JX-AD13 |
M16w1.5 |
100 |
|
|
JX-AD13 |
M18*1.5 |
100 |
|
|
JX-AD13 |
M20w1.5 |
100 |
|
|
JX-AD15.8 |
M16*1.5 |
100 |
|
|
JX-AD15.8 |
M18#1.5 |
100 |
|
|
JX-AD15.8 |
M20*1.5 |
100 |
|
|
JX-AD18.5 |
M20*1.5 |
50 |
|
|
JX-AD21.2 |
M20*1.5 |
50 |
|
|
JX-AD21.2 |
M24*L5 |
50 |
|
|
JX-AD21.2 |
M25*1.5 |
50 |
|
|
JX-AD25 |
M25*1.5 |
50 |
|
|
JX-AD28.5 |
M25*L5 |
50 |
|
|
JX-AD28.5 |
M27*1.5 |
50 |
|
|
JX-AD28.5 |
M30*L5 |
50 |
|
|
JX-AD34.5 |
M32*1.5 |
20 |
|
|
JX-AD34.5 |
M36*1.5 |
20 |
|
|
JX-AD42.5 |
M40*1.5 |
10 |
|
|
JX-AD42.5 |
M48*L5 |
10 |
|
|
JX-AD54.5 |
M50*1.5 |
10 |
|
|
JX-AD54.5 |
M60*L5 |
10 |
|
|
JX-AD54.5 |
M63，L5 |
10 |
|
Product name |
AD adapter hose |
Thread specification |
Package pcs/bag |
|
Hose connector
|
JX-AD10 |
PG7 |
100 |
|
JX-AD13 |
PG9 |
100 |
|
|
JX-AD15.8 |
PG11 |
100 |
|
|
JX-AD18.5 |
PG13.5 |
50 |
|
|
JX-AD21.2 |
PG16 |
50 |
|
|
JX-AD25 |
|
50 |
|
|
JX-AD28.5 |
PG21 |
50 |
|
|
JX-AD34.5 |
PG29 |
20 |
|
|
JX-AD42.5 |
PG36 |
10 |
|
|
JX-AD54.5 |
PG48 |
10 |
|
|
Fixed support
|
JX-AD10 |
PG7 |
100 |
|
JX-AD13 |
PG9 |
100 |
|
|
JX-AD15.8 |
PG11 |
100 |
|
|
JX-AD18.5 |
PG13.5 |
100 |
|
|
JX-AD21.2 |
PG16 |
100 |
|
|
JX-AD25 |
|
100 |
|
|
JX-AD28.5 |
PG21 |
50 |
|
|
JX-AD34.5 |
PG29 |
50 |
|
|
JX-AD42.5 |
PG36 |
50 |
|
|
JX-AD54.5 |
PG48 |
25 |
