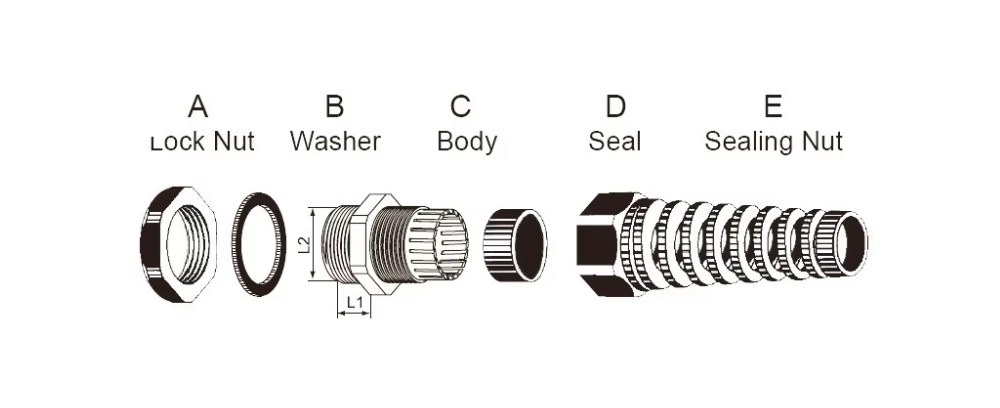

Nylon Flexible Cable Gland

Code

Model

Cable Range(mm)

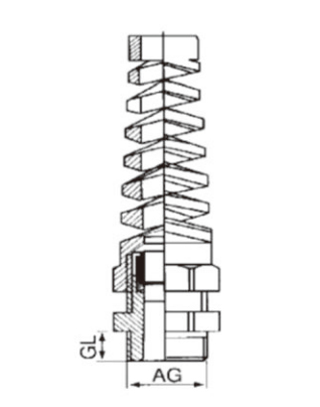

Thread O.D. AG(mm)

Thread engt GL(mm)

Spanner size(mm)

JX-PG7-NFL

PG7

3~6.5

12.5

8

16

JX-PG9-NFL

PG9

4~8

15.2

8

19

JX-PG11-NFL

PG11

5~10

18.6

8

22

JX-PG13.5-NFL

PG13.5

6~12

20.4

9

24

JX-PG-16NFL

PG16

10~14

22.5

10

27

JX-PG21-NFL

PG21

13~18

28.3

10

33

JX-M12-NFL

M12

3~6.5

12

8

16

JX-M16-NFL

M16

4~8

16

8

19

JX-M18-NFL

M18

5~10

18

8

22

JX-M20-NFL

M20

6~12

20

9

24

JX-M22-NFL

M22

10~14

22

10

27

JX-M25-NFL

M25

13~18

25

10

33

JX-M27-NFL

M27

13~18

27

10

33

Material: Nylon PA66

Sealing material:Nitrile butadiene rubber(nbr), weathering resistance rubber(epdm)

Working temperature;-40°C to 100c in static state, short time to 120°C;

- 20°C to 8o°℃ in dynamic state, short time to100°c

Protection degree:IP68(rotate the part,and use o ring)

Color:black(ral9005);light grey(ral7035);special color can feel free to contact us
