Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature: -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.
Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.
More options: Customization is accept.Welcome to inquire.
| United Structure Nylon Cable Gland-- Metric thread | |||||
| Product Code | Thread AG | Cable range(mm) | Thread O.D. C1(mm) | Thread length GL(mm) | Spanner Size (mm) |
| JX-NLM8-UN | M8*1.25 | 2-4.8 | 8 | 7.5 | 43447 |
| JX-NLM10-UN | M10*1.5 | 3-6 | 10 | 8 | 15/13 |
| JX-NLM12A-UN | M12*1.5 | 3-6.5 | 12 | 8.5 | 18/15 |
| JX-NLM12B-UN | 3-6.5 | 12 | 15 | 18/15 | |
| JX-NLM12C-UN | 3-5.5 | 12 | 8.5 | 18/19 | |
| JX-NLM12D-UN | 4-8 | 12 | 8.5 | 18/19 | |
| JX-NLM12E-UN | 3-5.5 | 12 | 15 | 18/19 | |
| JX-NLM12F-UN | 4-8 | 12 | 15 | 18/19 | |
| JX-NLM16A-UN | M16*1.5 | 4-8 | 16 | 10 | 22/19 |
| JX-NLM16B-UN | 4-8 | 16 | 15 | 22/19 | |
| JX-NLM16C-UN | 3-7 | 16 | 10 | 22/22 | |
| JX-NLM16D-UN | 5-10 | 16 | 10 | 22/22 | |
| JX-NLM16E-UN | 3-7 | 16 | 15 | 22/22 | |
| JX-NLM16F-UN | 5-10 | 16 | 15 | 22/22 | |
| JX-NLM18A-UN | M18*1.5 | 3-7 | 18 | 10 | 24/22 |
| JX-NLM18B-UN | 5-10 | 18 | 10 | 24/22 | |
| JX-NLM18C-UN | 3-7 | 18 | 15 | 24/22 | |
| JX-NLM18D-UN | 5-10 | 18 | 15 | 24/22 | |
| JX-NLM20A-UN | M20*1.5 | 6-12.5 | 20 | 10 | 27/24 |
| JX-NLM20B-UN | 5-11 | 20 | 11 | 27/27 | |
| JX-NLM20C-UN | 8.5-14 | 20 | 11 | 27/27 | |
| JX-NLM20D-UN | 5-11 | 20 | 15 | 27/27 | |
| JX-NLM20E-UN | 8.5-14 | 20 | 15 | 27/27 | |
| JX-NLM22A-UN | M22*1.5 | 5-11 | 22 | 11 | 27/27 |
| JX-NLM22B-UN | 8.5-14 | 22 | 11 | 27/27 | |
| JX-NLM24A-UN | M24*1.5 | 5-11 | 24 | 11 | 27/27 |
| JX-NLM24B-UN | 8.5-14 | 24 | 11 | 27/27 | |
| JX-NLM25A-UN | M25*1.5 | 8.5-14 | 25 | 11.6 | 33/27 |
| JX-NLM25B-UN | 7-13 | 25 | 11.6 | 33/33 | |
| JX-NLM25C-UN | 12.5-18 | 25 | 11.6 | 33/33 | |
| JX-NLM25D-UN | 7-13 | 25 | 15 | 33/33 | |
| JX-NLM25E-UN | 12.5-18 | 25 | 15 | 33/33 | |
| JX-NLM32A-UN | M32*1.5 | 11-17.5 | 32 | 15 | 36/42 |
| JX-NLM32B-UN | 14-22 | 32 | 15 | 41/42 | |
| JX-NLM32C-UN | 17-25 | 32 | 15 | 41/42 | |
| JX-NLM36A-UN | M36*1.5 | 14-22 | 36 | 12 | 45/42 |
| JX-NLM36B-UN | 17-25 | 36 | 12 | 45/42 | |
| JX-NLM40A-UN | M40*1.5 | 18-25 | 40 | 15 | 50/52 |
| JX-NLM40B-UN | 23-32 | 40 | 15 | 50/52 | |
| JX-NLM50A-UN | M50*1.5 | 25-32 | 50 | 15 | 62/62 |
| JX-NLM50B-UN | 30-41 | 50 | 15 | 62/62 | |
| JX-NLM63A-UN | M63*1.5 | 29-38 | 63 | 18 | 75/65 |
| JX-NLM63B-UN | 35-46 | 63 | 18 | 75/65 | |

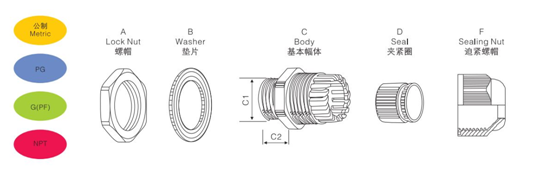

The Drawing of United Structure Nylon Cable Gland
