Waterproof cable connector manufacturer

product description

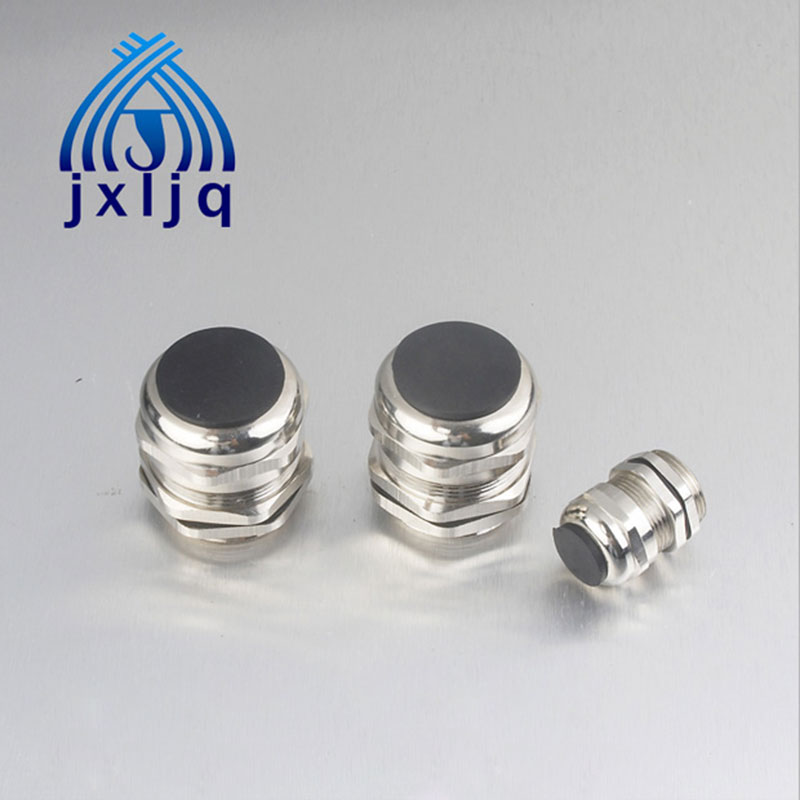

1. Waterproof Brass Cable Gland G ,NPT

Waterproof Brass Cable Gland G, NPT's body parts are made of brass, the clamping parts are made of nylon (PA), and the seals and O-rings are made of nitrogen rubber (NBR).

Certificates: CE, IP68, ISO9001, TUV.

Protection Degree: In the specific cable range, and the use of O-ring helps tighten head so that to reach IP68-10 bar.

Working Temperature:

static: -40 DEG to 100 DEG C, short time of up to 120 DEG C.

Dynamic: - 20 DEG to 80 DEG C, short time of up to 100 DEG C

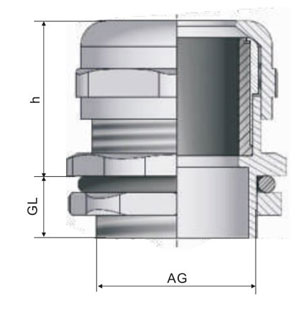

Thread Length: The short thread is suitable for holes in thin board holes or equipment with inner thread, while the long thread is available for thick plate. Threaded extension can be customized.

Features: The cable gland is the product of high tensile strength, waterproof, dustproof, salt resistance, acid and alkali, alcohol, oil and solvent resistance.

Function: Waterproof metal cable gland is the product forms a complete set of the cable, connector cable can be cable lock, the other end can access the devices through the box body, also can choose thread access according to the entry and outlet of the internal thread electric equipment.

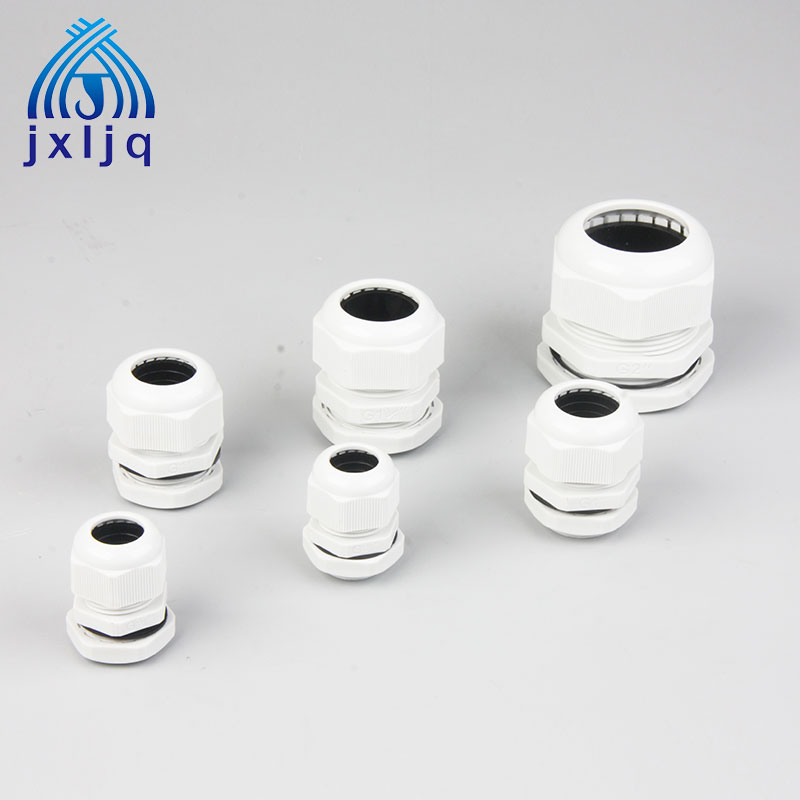

2. Nylon Cable Gland United Structure -PG Thread

Thread Size: PG Thread

Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).

Product Certification: CE certification, ROHS certification and ISO9001.

Protection Degree: IP68- 10 BAR

Working temperature:  -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.

Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.

Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.

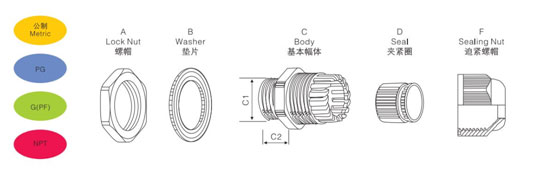

The Drawing of United Structure Nylon Cable Gland

Manufacturer information introduction

Yueqing Jixiang Connector Co., Ltd. is a professional manufacturer of various card cover gland and cable connectors. It integrates R&D, production and sales in Hong Kong. The main products are metal cable connectors and nylon cable connectors. We firmly believe that the market is the key to business development. Therefore, we always regard high quality as our basic principle.

The company's products are widely used in electronics, machinery, instruments, electrical and other industrial fields. They are also certified to CE, IP68, ROHS, EX, ATEX, TUV and ISO9001. Auspicious cable glands are exported to Southeast Asia and other developed countries and regions with their superb technology and excellent quality.
