Stainless Steel Cable Gland Supplier
Supplier Information
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.
Tel: +86-577-61118056
Fax: +86-577-61118055
Mobile: +86-18958708338
Email: jx@jxljq.com

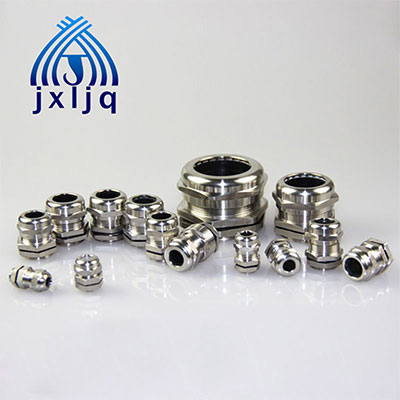

Stainless Steel Cable Gland PG Thread
Thread Size: PG Thread
Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Working temperature: -40℃ to 100℃ short time to 120℃
Function: Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured. These cable glands are designed to withstand water,dust,salt,acid-based,alcohol, oil and common solvent.
More options: Customization is acceptable.Welcome to inquire.

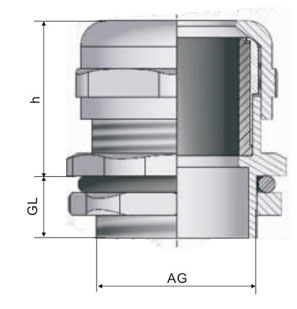

The Drawing of Stainless Steel Gland
Material: Brass with nickel plated or Aluminum material.
Product Certification: CE certification,ROHS and UL.
Protection Degree: The Depth of Waterproof to 3-5 M, The O-ring up to IP68 Waterproof Level: Anti-Vibration and shock tested IEC-60077-1999,according with ROHS
Working temperature: -40℃to 120℃, short time up to 150℃.
Function:
1. Waterproof and dustproof.
2.Vent,protect the inside equipment operation normally and long in the serious environment.
3.Heat dissipation,replace or assist in heat sink to lower inside temperature.
4.Prolong the product’s service life.
Brass Breathable Vent Plug - Metric Thread
| uct Code | Thread AG | Air Permeability | Thread O.D.(mm) | Total Length (mm) | Thread length GL(mm) | Spanner Size (mm) | Packing (pcs) |
| JX-M12-BVP | M12*1.5 | 260ml/Min | 12 | 19 | 9 | 16 | 50 |
| JX-M8-BVP | M8*1.25 | 147ml/Min | 8 | 16 | 7 | 12 | 100 |
| JX-M6-BVP | M6*1 | 60ml/Min | 6 | 11.6 | 6 | 10 | 200 |
| JX-M5-15-BVP | M5*0.8 | 60ml/Min | 5 | 15 | 6 | 10 | 200 |
| JX-M5-BVP | M5*0.8 | 60ml/Min | 5 | 11.6 | 6 | 10 | 200 |
