Specifications and parameters of waterproof Brass Cable Gland

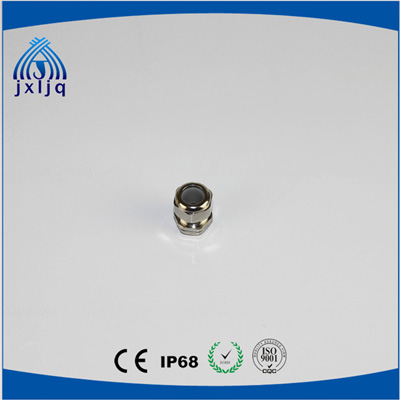

Brass cable waterproof joint control thread G type series

product description

Thread specification: Regulatory G type
Product material: The main part of the joint is made of nickel-plated brass, the clamping part is made of nylon plastic (PA), and the seal and O-ring are made of nitrile rubber (NBR).
Product certification: European CE certification, European ROHS certification
Protection level: Within the specified range of the bayonet, and use the O-ring to tighten the tight head, reaching IP68-10 bar pressure.
Working temperature: Static: -40°C to 100°C, up to 120°C for a short time. Dynamic: -20°C to 80°C, up to 100°C for a short time
Thread length: short threads are suitable for opening holes in thin machine plates or equipment with internal threads, and long threads are suitable for joining thick machine plates. Thread extension can be customized.
Product features: Wide range of clamping cables, strong tensile strength, waterproof, dustproof, salt-resistant, acid-alkali-resistant, alcohol, grease and general solvents.
How to use: The metal cable waterproof joint is a supporting product of the cable. The joint can lock the cable, and the other end can be connected to the equipment box, or it can be connected to the electric equipment with internal thread at the entrance and exit according to the selected thread.

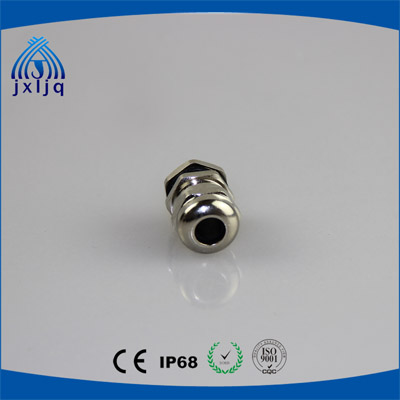

Brass Cable Gland American Thread NPT Series

product description

Thread specification: NPT series
Product material: The main part of the joint is made of nickel-plated brass, the clamping part is made of nylon plastic (PA), and the seal and O-ring are made of nitrile rubber (NBR).
Product certification: European CE certification, European ROHS certification
Protection level: Within the specified range of the bayonet, and use the O-ring to tighten the tight head, reaching IP68-10 bar pressure.
Working temperature: Static: -40°C to 100°C, up to 120°C for a short time. Dynamic: -20°C to 80°C, up to 100°C for a short time
Thread length: The short thread is suitable for opening holes in thin machine plates or equipment with internal threads, and the long thread is suitable for joining thick machine plates. Thread extension can be customized.
Product features: Wide range of clamping cables, strong tensile strength, waterproof, dustproof, salt-resistant, acid-alkali-resistant, alcohol, grease and general solvents.
How to use: The metal cable waterproof joint is a supporting product of the cable. The joint can lock the cable, and the other end can be connected to the equipment box, or it can be connected to the electric equipment with internal thread at the inlet and outlet according to the selected thread.

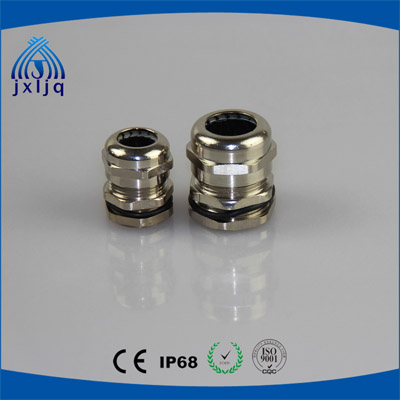

Specifications and parameters of brass cable waterproof joints_Silicone series of brass cable waterproof joints

product description

Material: copper, nickel plated
Claws: Silicone rubber
Sealing ring: silicone rubber
Certification: CE, ROHS, REACH
Temperature resistance: -60℃~250℃
Application fields: Connecting wires for automotive/shipping equipment, lighting equipment, refrigeration and air conditioning, household appliances and measuring equipment, and connecting outdoor wires in harsh environments.
