Recommended for nylon cable connector manufacturers
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.
To create a better brand image, JIXAING takes good faith for the business, keeps innovative through development and completely implements good service. Strongly believe that our company will be presented itself as a brand-mew image among the enterprises in our country or even in the world.
Tel: +86-577-61118056
Fax: +86-577-61118055
Mobile: +86-18958708338
Email: jx@jxljq.com

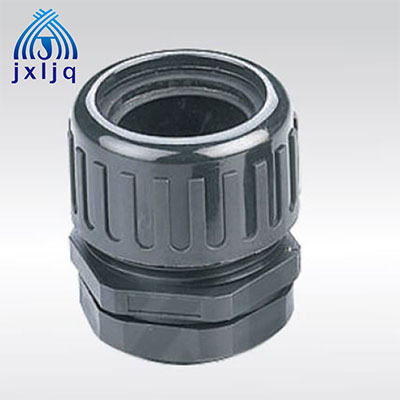

product description
Material: UL approved Nylon PA66 ( Flammability UL 94V-2) for A.C.F parts; (accept to make flammability UL V-0).
EPDM Rubber for B.D parts: (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali, etc).
Protection Degree: IP68-10 BAR
Working temperature: -40°C to 100°C in static state, or instantaneous heat resistance up to 120°C, -20°C to 80°C in dynamic state, or instantaneous heat resistance up to 100°C.
Thread: Metric, PG and G Thread
Features: The Powerful Watertight Fitting build the best tightening power by a very high and active compression force to resist the ingress of high pressure water jet for any angle which can provide 100% dynamic waterproof and airtight performance over the widest range of corrugated tubing.
Note: Special size and type, please contact us without hesitation.
The drawing:

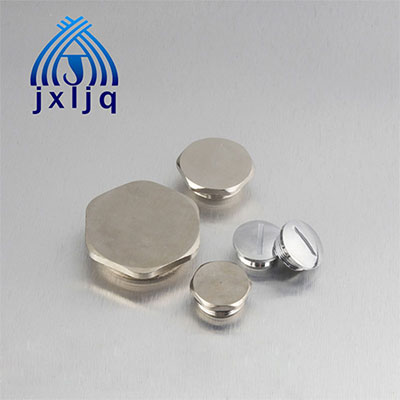

Hexagon brass nuts are made of nickel-plated brass. Brass has good thermal conductivity. If it is embedded with a heated copper nut, on the one hand, the copper nut can heat up quickly to speed up the work efficiency. On the other hand, the heated copper nut can quickly transfer heat to the plastic part. The periphery of the plastic hole is softened, which facilitates pressing into the hole.
Shape: Hexagonal
Features: In order to close the reserved holes or extra holes, make the product beautiful,it can keep waterproof, dust-proof, salt, acid, alcohol, oil and solvent resistant
Protection: IP65
Certificate: CE,IP68
The Drawing of Hexagonal Brass Screw Cap:
