Nylon Cable Gland Vendor Recommend
Company Profile
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.
To create a better brand image, JIXAING takes good faith for the business, keeps innovative through development and completely implements good service. Strongly believe that our company will be presented itself as a brand-mew image among the enterprises in our country or even in the world.
Tel: +86-577-61118056
Fax: +86-577-61118055
Mobile: +86-18958708338
Email: jx@jxljq.com
product description

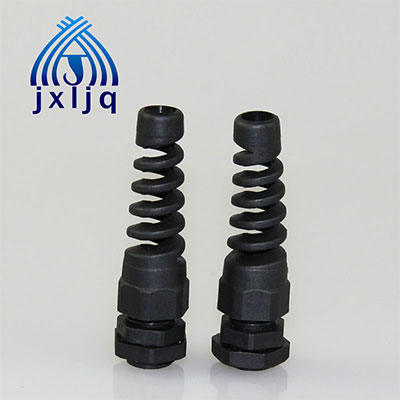

Nylon Cable Gland With Strain Relief PG Thread
Material: Adopting Nylon PA66 certificated by UL
Product Certification: CE certificationand ISO9001.
Protection Degree: IP68
Working temperature: -40℃to 100℃, short time up to 120℃.
Colors: Black (RAL9005),Gray(RAL7035), other colors are available upon requests.
Function:
1.Can be used in flexible metallic conduit or liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.
2.Use to positively bond the conduit to a box or enclosure.
Technical Parameter:
| Product Code | Thread AG | Cable range(mm) | Thread O.D AG (mm) | Thread length GL(mm) | Spanner Size (mm) |
| JX-PG7A-NFL | PG7 | 3-6.5 | 12.5 | 8 | 16 |
| JX-PG7B-NFL | PG7 | 2-5 | 12.5 | 8 | 16 |
| JX-PG9A-NFL | PG9 | 4-8 | 15.2 | 8 | 19 |
| JX-PG9B-NFL | PG9 | 2-6 | 15.2 | 8 | 19 |
| JX-PG11A-NFL | PG11 | 5-10 | 18.6 | 8 | 22 |
| JX-PG11B-NFL | PG11 | 3-7 | 18.6 | 8 | 22 |
| JX-PG13.5A-NFL | PG13.5 | 6-12 | 20.4 | 9 | 24 |
| JX-PG13.5B-NFL | PG13.5 | 5-9 | 20.4 | 9 | 24 |
| JX-PG16A-NFL | PG16 | 10-14 | 22.5 | 10 | 27 |
| JX-PG16B-NFL | PG16 | 7-12 | 22.5 | 10 | 27 |
| JX-PG21A-NFL | PG21 | 13-18 | 28.3 | 10 | 33 |
| JX-PG21B-NFL | PG21 | 9-16 | 28.3 | 10 | 33 |

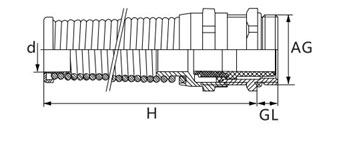

The Drawing of Flexible Cable Gland:

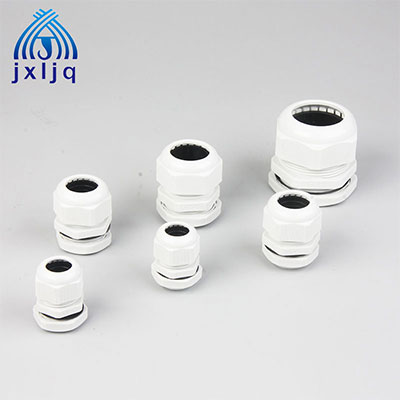

Nylon Cable Gland United Structure-PG Thread
Thread Size: PG Thread
Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature: -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.
Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.

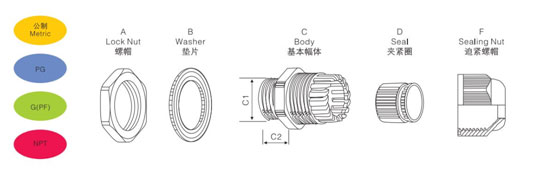

The Drawing of United Structure Nylon Cable Gland:
