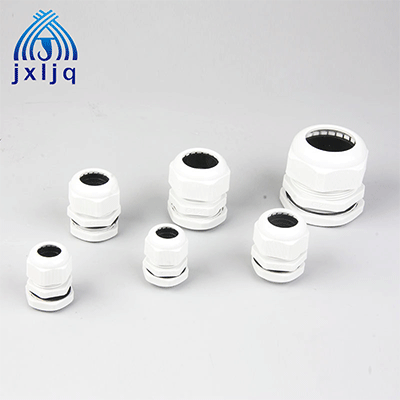

Nylon Cable Gland Divided Structure - PG Thread
Thread Size: PG Thread
Material:

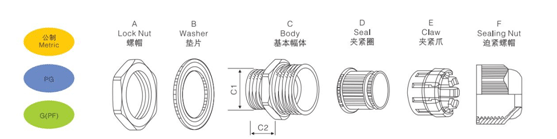

UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.E.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature:
-40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics:
The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.
Colors: Black(RAL9005), Gray(RAL7035), other colors are available upon requests.
Technical Parameter:
| Product Code | Thread AG | Cable range(mm) | Thread O.D. C1(mm) | Thread length GL(mm) | Spanner Size (mm) |
| JX-NLPG7A-DS | PG7 | 3-5.5 | 12.5 | 8 | 17/19 |
| JX-NLPG7B-DS | 4.5-7.8 | 12.5 | 8 | 17/19 | |
| JX-NLPG9A-DS | PG9 | 3-5.5 | 15.2 | 8.2 | 22/19 |
| JX-NLPG9B-DS | 4.5-7.8 | 15.2 | 8.2 | 22/19 | |
| JX-NLPG11A-DS | PG11 | 4-7 | 18.6 | 10 | 24/22 |
| JX-NLPG11B-DS | 6-10 | 18.6 | 10 | 24/22 | |
| JX-NLPG13.5A-DS | PG13.5 | 5-8.8 | 20.4 | 10 | 27/24 |
| JX-NLPG13.5B-DS | 7-12.5 | 20.4 | 10 | 27/24 | |
| JX-NLPG16A-DS | PG16 | 6-11 | 22.5 | 10.8 | 30/27 |
| JX-NLPG16B-DS | 9-14 | 22.5 | 10.8 | 30/27 | |
| JX-NLPG21A-DS | PG21 | 10-16 | 28.3 | 12 | 36/33 |
| JX-NLPG21B-DS | 13-18 | 28.3 | 12 | 36/33 | |
| JX-NLPG29A-DS | PG29 | 15-22 | 37 | 12 | 46/41 |
| JX-NLPG29B-DS | 18-25 | 37 | 12 | 46/41 | |
| JX-NLPG36A-DS | PG36 | 20-26 | 47 | 14 | 57/52 |
| JX-NLPG36B-DS | 24-31 | 47 | 14 | 57/52 | |
| JX-NLPG42A-DS | PG42 | 25-33 | 54 | 15 | 64/62 |
| JX-NLPG42B-DS | 31-41 | 54 | 15 | 64/62 |
The Drawing of Divided Structure Nylon Cable Gland:

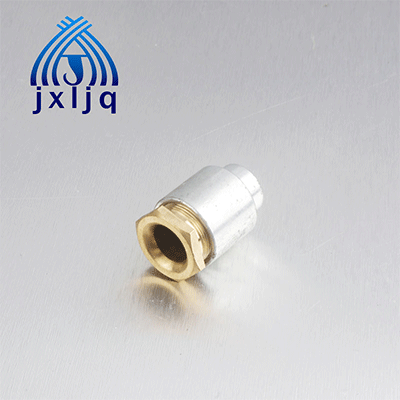

Thread Size: TH
Material: Brass, chromium plated
Product Certification: CE certificationand ISO9001.
Protection Degree: IP54
Working temperature: -40℃to 110℃, short time up to 120℃.
Function:
Can be used in meter,machines,transportation,medicine,and all types of unarmored marine electrical cable fittings.
Technical Parameter:
| Product Code | Cable Range (mm) | d (mm) | D (mm) | d1(mm) | D1(mm) | J(mm) | J1(mm) |
| JX-TH8 | 5-7 | 8 | M16*1 | 13 | 20 | 32 | 3 |
| JX-TH13 | 6-12 | 13 | M20*1 | 17 | 24 | 35 | 8 |
| JX-TH16 | 11-15 | 16 | M27*1.5 | 22 | 32 | 40 | 8 |
| JX-TH19 | 14-18 | 19 | M30*1.5 | 24 | 35 | 42 | 8 |
| JX-TH24 | 17-23 | 24 | M35*1.5 | 30 | 41 | 44 | 8 |
| JX-TH28 | 22-27 | 28 | M42*2 | 35 | 49 | 46 | 8 |
| JX-TH34 | 26-33 | 34 | M47*2 | 42 | 53 | 49 | 8 |
| JX-TH42 | 32-41 | 42 | M55*2 | 50 | 60 | 54 | 8 |
| JX-TH50 | 40-49 | 50 | M62*2 | 58 | 69 | 56 | 8 |
| JX-TH58 | 48-57 | 58 | M71*2 | 66 | 80 | 56 | 8 |
The Drawing of Divided Structure Nylon Cable Gland:
