Marine Cable Gland supplier
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.
Phone:+0086 13506778019
Email:marion@karionbelt.com
product description
Thread Size: TJ
Material: Brass, chromium plated
Product Certification: CE certificationand ISO9001.
Protection Degree: IP54
Working temperature: -40℃to 110℃, short time up to 120℃.
Function: Can be used in meter,machines,transportation,medicine,and all types of unarmored marine electrical cable fittings.
More options: Customization is accept.Welcome to inquire.

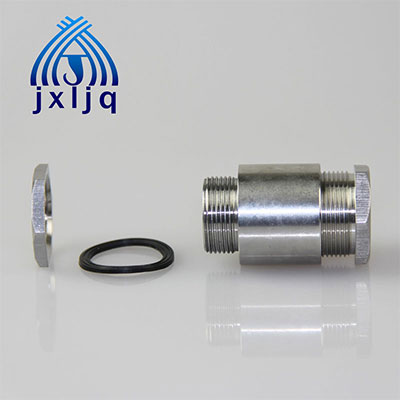

Marine Stuffing Box- TJ Clamping Type
| Product Code | Cable Range (mm) | d (mm) | D (mm) | d1(mm) | D1(mm) | H1(mm) | H(mm) |
| JX-TJ8 | 5-7 | 8 | M16*1 | M14*1 | 20 | 9 | 32 |
| JX-TJ13 | 6-12 | 13 | M20*1 | M18*1 | 24 | 10 | 35 |
| JX-TJ16 | 11-15 | 16 | M27*1.5 | M22*1.5 | 31.5 | 12 | 40 |
| JX-TJ19 | 14-18 | 19 | M30*1.5 | M27*1.5 | 34.5 | 12 | 42 |
| JX-TJ24 | 17-23 | 24 | M35*1.5 | M30*1.5 | 39.6 | 12 | 44 |
| JX-TJ28 | 22-27 | 28 | M42*2 | M36*1.5 | 46.5 | 15 | 46 |
| JX-TJ34 | 26-33 | 34 | M47*2 | M42*2 | 54 | 15 | 49 |
| JX-TJ42 | 32-41 | 42 | M55*2 | M52*2 | 62 | 15 | 54 |
| JX-TJ50 | 40-49 | 50 | M62*2 | M58*27 | 68.5 | 15 | 56 |
| JX-TJ58 | 48-57 | 58 | M71*2 | M68*2 | 77.5 | 20 | 56 |

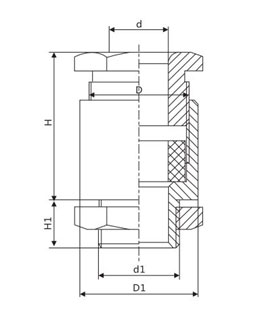

The Drawing of Marine Cable Gland:

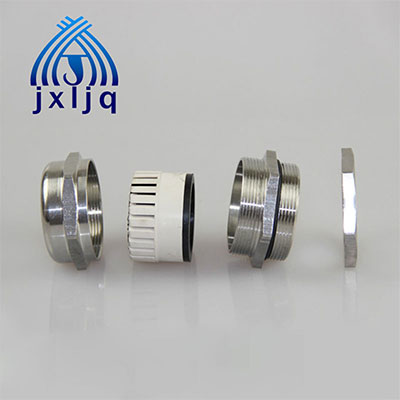

Stainless Steel Cable Gland - Metric Thread
Thread Size: Metric Thread
Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Working temperature: -40℃to 100℃ short time to 120℃
Function: Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured. These cable glands are designed to withstand water,dust,salt,acid-based,alcohol, oil and common solvent.

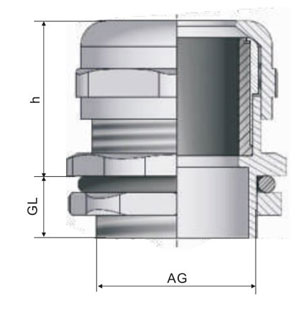

The Drawing of Stainless Steel Gland
