Marine Cable Gland manufacturer
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.
To create a better brand image, JIXAING takes good faith for the business, keeps innovative through development and completely implements good service. Strongly believe that our company will be presented itself as a brand-mew image among the enterprises in our country or even in the world.
Tel: +86-577-61118056
Fax: +86-577-61118055
Mobile: +86-18958708338
Email: jx@jxljq.com
product description
Thread Size: TH
Material: Brass, chromium plated
Product Certification: CE certificationand ISO9001.
Protection Degree: IP54
Working temperature: -40℃to 110℃, short time up to 120℃.
Function: Can be used in meter,machines,transportation,medicine,and all types of unarmored marine electrical cable fittings.
More options: Customization is accept.Welcome to inquire.

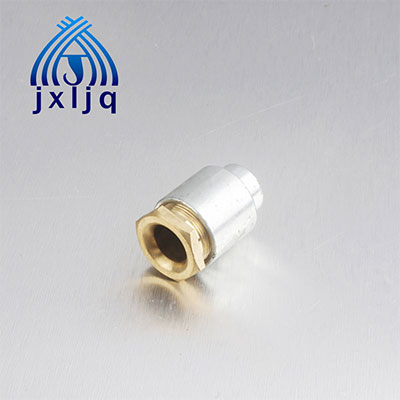

Marine Stuffing Box- TH Clamping Type
| Product Code | Cable Range (mm) | d (mm) | D (mm) | d1(mm) | D1(mm) | J(mm) | J1(mm) |
| JX-TH8 | 5-7 | 8 | M16*1 | 13 | 20 | 32 | 3 |
| JX-TH13 | 3-6.5 | 13 | M20*1 | 17 | 24 | 35 | 8 |
| JX-TH16 | 3-6.5 | 16 | M27*1.5 | 22 | 32 | 40 | 8 |
| JX-TH19 | 14-18 | 19 | M30*1.5 | 24 | 35 | 42 | 8 |
| JX-TH24 | 17-23 | 24 | M35*1.5 | 30 | 41 | 44 | 8 |
| JX-TH28 | 22-27 | 28 | M42*2 | 35 | 49 | 46 | 8 |
| JX-TH34 | 26-33 | 34 | M47*2 | 42 | 53 | 49 | 8 |
| JX-TH42 | 32-41 | 42 | M55*2 | 50 | 60 | 54 | 8 |
| JX-TH50 | 40-49 | 50 | M62*2 | 58 | 69 | 56 | 8 |
| JX-TH58 | 48-57 | 58 | M71*2 | 66 | 80 | 56 | 8 |
The Drawing of Marine Cable Gland:

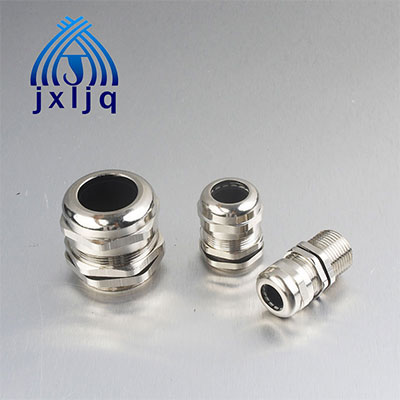

Longer Thread Brass Cable Gland-Metric Thread
Thread Size: Metric Thread
Material: Brass with nickel plated
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification,TUV and ISO9001.
Patent: National Utility Model Patent No is ZL201020530888.7
Protection Degree: IP68
Working temperature: -40℃to 100℃short time to 120℃
Thread Length: Standard thread type is used for the equipment which has inner thread or for the thin board. Longer thread type is used for the thick board.Longer thread type can be produced as your requests.
Function: Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured. These cable glands are designed to withstand water,dust,salt,acid-based,alcohol, oil and common solvent.

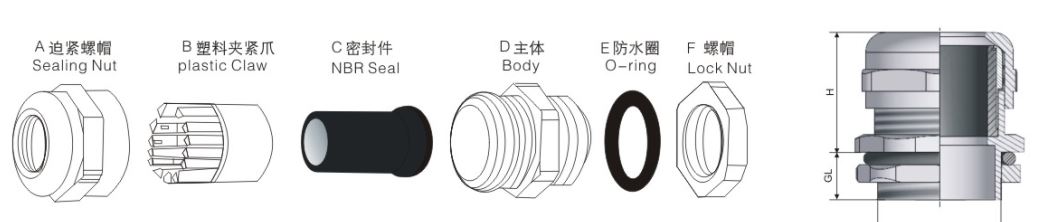

The Structure Diagram of Longer Thread Cable Gland:
