Hose connector supplier

Supplier introduction

YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.

To create a better brand image, JIXAING takes good faith for the business, keeps innovative through development and completely implements good service. Strongly believe that our company will be presented itself as a brand-mew image among the enterprises in our country or even in the world.

Tel: +86-577-61118056

Fax: +86-577-61118055

Mobile: +86-18958708338

Email: jx@jxljq.com

product description

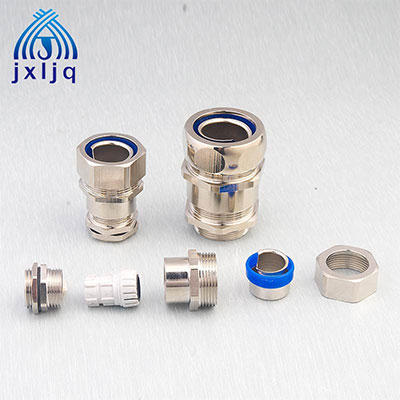

                       Metal Tighten Hose Connector

Metal Tighten Hose Connector is made of Brass and nickel plated.Brass is an alloy of copper and zinc. Brass has good mechanical properties and wear resistance, high strength, good plasticity, and can withstand cold and hot pressure processing.

Material: Brass / Brass with nickel Plated

Seal: NBR,PA6

Ferrule: Brass

Sealing Ring: Thermoplastic elastomer or PTEE

Protection Degree: IP65

Working Temperature: static--  -40 Deg to 100 Deg, short time to 120 Deg

                                       Dynamic--  -20 Deg to 80 Deg, short time to 100 Deg

Thread Type: Metric,PG

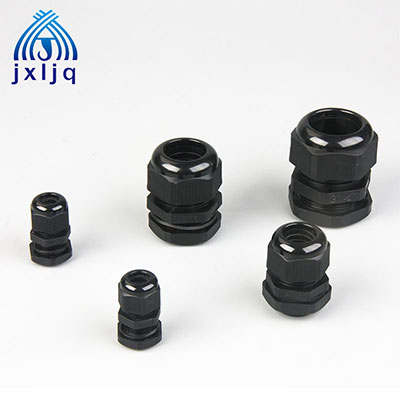

               Nylon Cable Gland Standard PG Thread

Material: Adopting Nylon PA66 certificated by UL

Product Certification: CE certification, ROHS certification and ISO9001.

Protection Degree: IP68- 10 BAR

Working temperature:  -40℃ to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state, or instantaneous heat resistance up to 100℃.

Characteristics: IP68 (Rotate the part and use O ring)

Colors: Black (RAL9005),Gray(RAL7035), other colors are available upon requests.
