Explosion-Proof Cable Gland Supplier

YUEQING JIXIANG CONNECTOR CO.,LTD  is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.

To create a better brand image, JIXAING takes good faith for the business, keeps innovative through development and completely implements good service. Strongly believe that our company will be presented itself as a brand-mew image among the enterprises in our country or even in the world.

Tel: +86-577-61118056

Fax: +86-577-61118055

Mobile: +86-18958708338

Email: jx@jxljq.com

product description

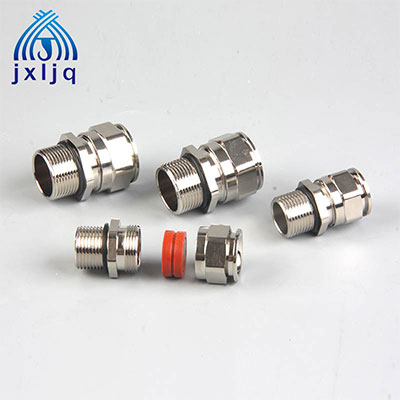

Non Armored Explosion-Proof Cable Gland

Material: SU304 for Body, brass with nickel plated

Seal: High Temperature silicone

Protection Class: Within the clamping range, it can reach to IP66

Temperature Range: Min-30 °C，Max 100 °C, short time to 120°C

Features: high-end design, practical, increase flood control external meter seal.

Ex Degree: Exd II

Thread Options: Metric, G, PG, NPT

Application: Zone 1 hazardous locations and IIA IIB IIC explosive gas atmospheres,

Explosion-proof electrical equipment connections, chemicals, petroleum, various sectors of electricity, light industry, machinery, etc, especially for automation engineering line installation.

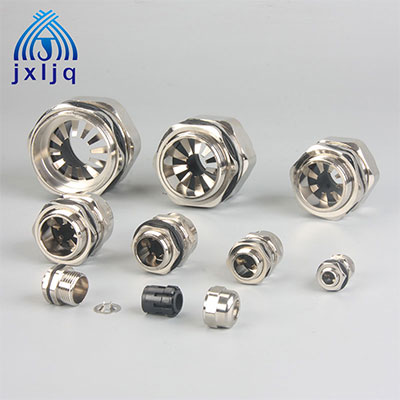

EMC Cable Gland - E Series Metric Thread

Material:

• Cap nut: Brass with nickel Plated
• Gland Body: Brass with nickel plated
• Certificate: CE, IP68, ISO9001, TUV
• Protection Class : IP68-10 BAR
• Operating Temperature: -40 DEG to +100 DEG, (short time to 120 DEG); -20 DEG to 80 DEG, (short time to 100 DEG)

Features:

The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.When shielded cable entries through this cable gland, the brass material contact chips attached in the cable gland will contact with the metal isolated network in the cable, Then the interfering electromagnetic wave will be leaded to the grounding wire, thus the interference source of electromagnetic wave will be evacuated.

Function:

Metal Cable Gland is cable supporting products, connector cable  can be locked, the other end of the device can access the device through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.

Brass EMC Cable Gland E Series- Metric thread
