product description

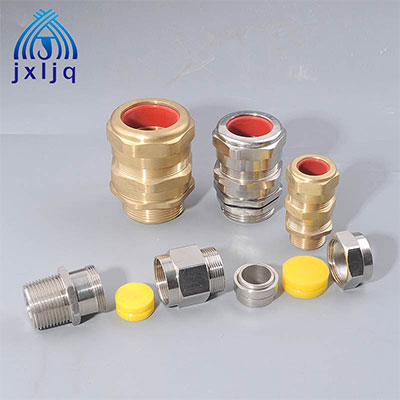

Ex Standard Cable Gland JX6 Series

Material: Brass or stainless steel, brass with nickel plated

Cable: With packing seal

Protection Class: IP66

Explosion Mark: Exd II

Features:

With quick installation, safety, reliability and other characteristics of good protection.

1. It is Made of copper or stainless steel material;

2. Cable is sealed with gasketing;

3. With reliable installation, good protection and explosion-proof function;

4. Isolating gasket tube in suitable for clamping and fixing steel wire knit of armored  cable, it is cable core and enclosure gas sealing protection most be lP66

Function:

Suitable for clamping and fixing various types of armored cable.

1. Can be used in Hazardous division 1&2;

2. Can be used in Explosive gas atmosphere;

JX6 DOES NOT HAVE cover ring (6).

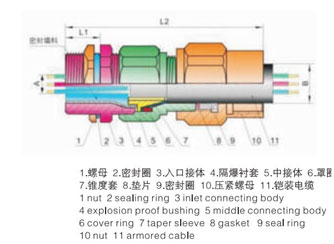

The Drawing:

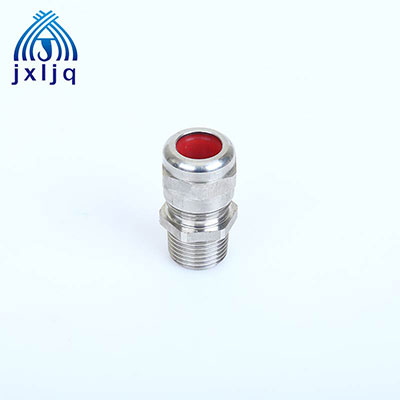

Explosion-Proof Cable Gland JX1 Series

Material: H62, SS304,316

Surface Treatment: Nickel Plating, passivation

Sealing Material: silastic, Neoprene

Explosion-proof Mark: Exd II

Fireproof Classification: V0 (UL94)

Protection Grade: IP66-10 Bars, (screwed – on part)

Working Temperature:

Static from -40°C to 100°C, short time to 120°C

Dynamic from -20°C to 80°C, short time to 100 without halide

Environmental Conditions: High-temperature and atrocious.

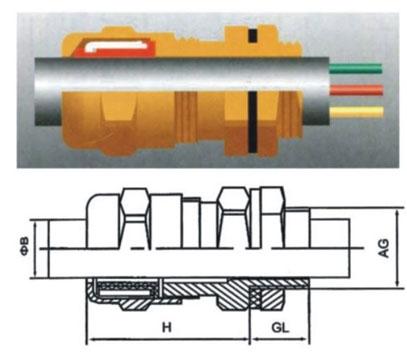

The Drawing :
