Elbow Conduit Fittings manufacturer

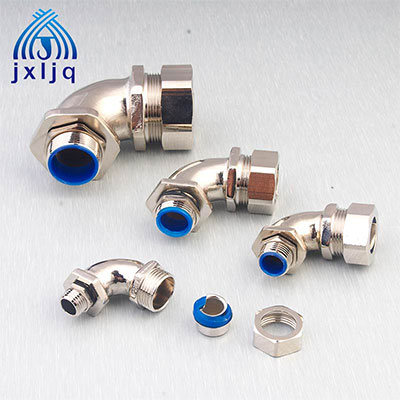

                  90 Degree Elbow Conduit Fittings

90 Degree Elbow Conduit Fittings is made of Brass and nickel plated. Brass is an alloy of copper and zinc. Brass has good mechanical properties and wear resistance, high strength, good plasticity, and can withstand cold and hot pressure processing.

Protection Degree:  IP67

Thread Type:  Metric, but PG & G Thread can also be produced

Function:

• 1. Can be used in flexible metallic conduit or liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And it protects the electrical wire or cable outside the construction and plant.
• 2. Use to positively bond the conduit to a box or enclosure.

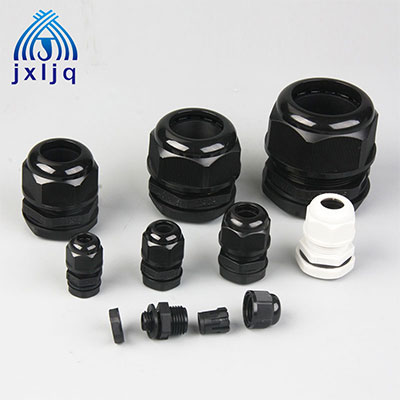

           Nylon Cable Gland Divided Structure G Thread

Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.E.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).

Product Certification: CE certification, ROHS certification and ISO9001.

Protection Degree: IP68- 10 BAR

Working temperature:  -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.

Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.

Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.

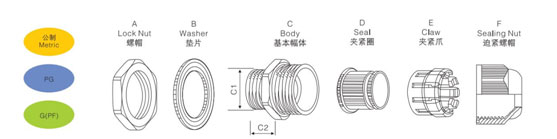

The Drawing of Divided Structure Nylon Cable Gland

Manufacturer introduction

YUEQING JIXIANG CONNECTOR CO.,LTD  is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.
