product description

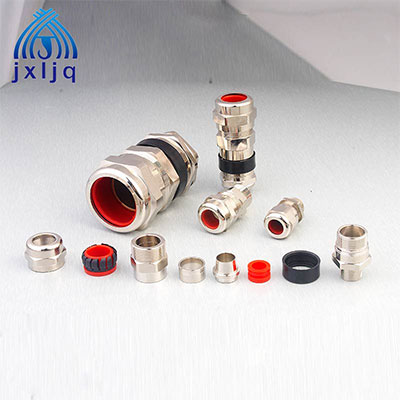

Explosion-Proof Brass Double Sealed Cable Gland JX2 Series

Material: H62,SS304,316

Surface Treatment: Nickel plating, passivation

Sealing material: plastic, Neoprene

Explosion-proof Mark: Exd IIC GB

Fireproof classification: V0(UL94)

Protection Class: Within the clamping range, it can reach to IP66

Temperature Range: Min-60 °C，Max 100 °C, short time to 120°C

Environmental Conditions: High-temperatire and atrocious

Thread Options: Metric, NPT, G Thread

Note: According the customer’s requirements, the extended GL screws are available.

The Drawing:

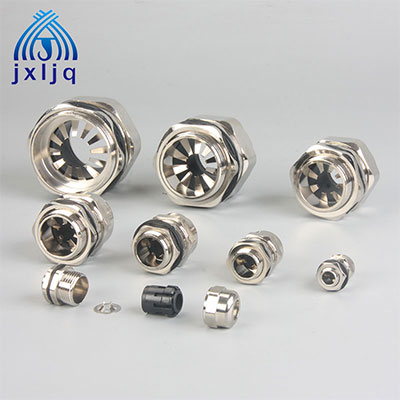

EMC Cable Gland - E Series Metric Thread

Material:

• Cap nut: Brass with nickel Plated
• Gland Body: Brass with nickel plated
• Certificate: CE, IP68, ISO9001, TUV
• Protection Class : IP68-10 BAR
• Operating Temperature: -40 DEG to +100 DEG, (short time to 120 DEG); -20 DEG to 80 DEG, (short time to 100 DEG)

Features:

The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.When shielded cable entries through this cable gland, the brass material contact chips attached in the cable gland will contact with the metal isolated network in the cable, Then the interfering electromagnetic wave will be leaded to the grounding wire, thus the interference source of electromagnetic wave will be evacuated.

Function:

Metal Cable Gland is cable supporting products, connector cable  can be locked, the other end of the device can access the device through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.
