product description

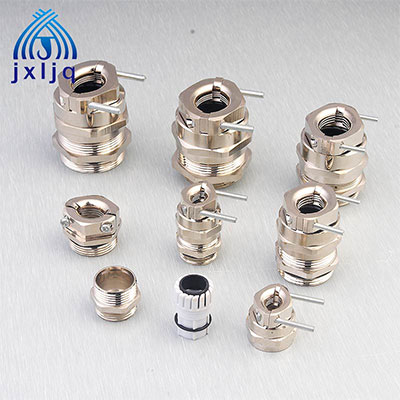

                   Brass Double-Locked Cable Gland

Double-Locked Cable Gland Vendor_Double-Locked Cable Gland

Material: Brass with nickel plated

Clamping part: Nylon PA (UL File No: E240925). Refer to Ul94-V2

Sealing element: NBR

Thread Type: PG according to DIN40430

Test Standard: EN50262/EN62444

Protection Class: IP68

Working Temperature: -40 deg to 100 deg

Product Certification: CE certification and ISO9001.

Function: Suitable for all sealing, fixed, non-slip, the occasion of high temperature requirements.

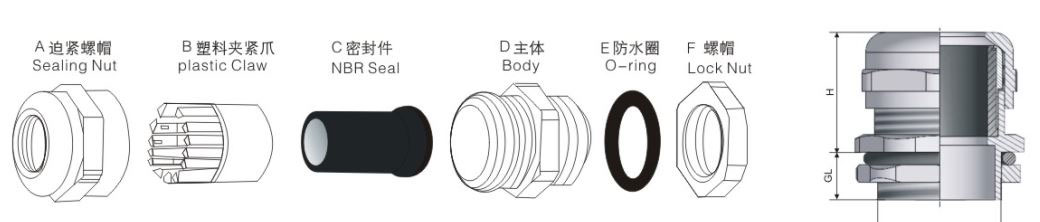

The Drawing of Double-Locked Cable Gland:

Double-Locked Cable Gland Vendor_Cable Gland drawing

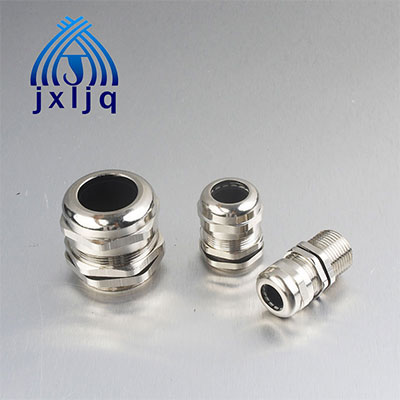

         Longer Thread Brass Cable Gland-Metric Thread

Double-Locked Cable Gland Vendor_Brass Cable Gland

Thread Size: Metric Thread

Material: Brass with nickel plated

Claw: PA

Sealing and sealing ring: NBR

Product Certification: CE certification,TUV and ISO9001.

Patent: National Utility Model Patent No is ZL201020530888.7

Protection Degree: IP68

Working temperature:  -40℃to 100℃short time to 120℃

Thread Length:

Standard thread type is used for the equipment which has inner thread or for the thin board. Longer thread type is used for the thick board.Longer thread type can be produced as your requests.

Function:

Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured. These cable glands are designed to withstand water,dust,salt,acid-based,alcohol, oil and common solvent.

The Structure Diagram of Longer Thread Cable Gland:

Double-Locked Cable Gland Vendor_Brass Cable Gland drawing
