Double-Locked Cable Gland manufacturer

YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.

Tel: +86-577-61118056

Fax: +86-577-61118055

Mobile: +86-18958708338

Email: jx@jxljq.com

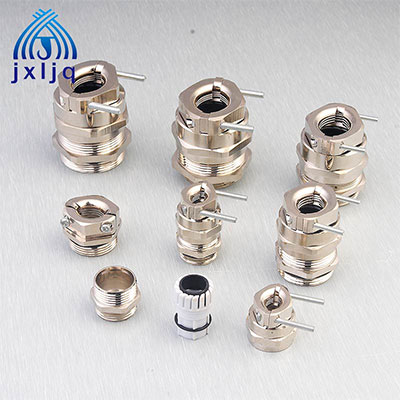

                     Brass Double-Locked Cable Gland

Material: Brass with nickel plated

Clamping part: Nylon PA (UL File No: E240925). Refer to Ul94-V2

Sealing element: NBR

Thread Type: PG according to DIN40430

Test Standard: EN50262/EN62444

Protection Class: IP68

Working Temperature: -40 deg to 100 deg

Product Certification: CE certification and ISO9001.

Function: Suitable for all sealing, fixed, non-slip, the occasion of high temperature requirements.

The Drawing of Double-Locked Cable Gland:

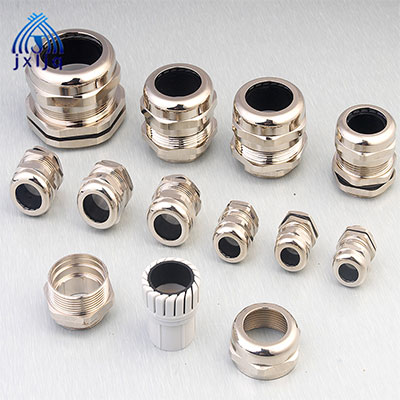

                      Brass Cable Gland Through Type

The joint body parts are made of nickel plated brass, the clamping part is made of plastic(PA), and the seals and O-ring seals are made of nitrile rubber (NBR).Brass is an alloy composed of copper and zinc. Brass composed of copper and zinc is called ordinary brass. If it is a mixture of two or more elements, it is called special brass. Brass has strong wear resistance and is often used in the manufacture of valves, water pipes, air conditioning inside and outside machine connecting pipes and radiators.

Operating temperature:

Static: -40℃ to 100℃, short time up to 120℃.

Dynamic: -20℃ to 80℃, short time up to 100℃.

Thread length: The short thin thread is suitable for holes in thin board or devices with internal thread, while the long thread is available for thick board. Long threads can be customized.

Features: The Cable gland is a product of large range, high tensile strength, waterproof, dustproof, salt, acid, alcohol, grease and common solvent resistant.

Function: Metal Cable Gland is cable supporting products, connector cable can be locked, the other end of the device can access the devices through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.
