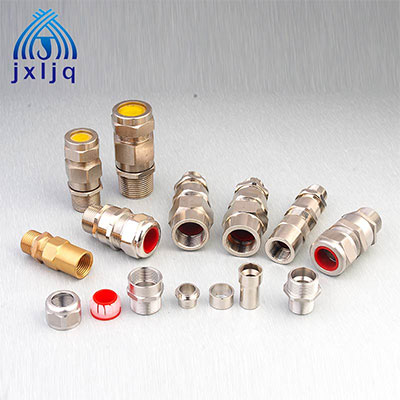

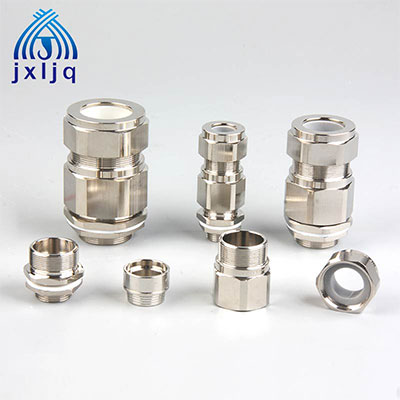

CW Cable Gland Supplier
product description
Type: CW (Single Compression Gland)
Material: Brass with or without nickel plated
Standard: BS6121
Protection Rate: IP66 & IP67
Temperature: -20°C- +80°C
Thread Options: Metric, NPT, BSP & PG
Application: For indoor or outdoor use with all types of SWA Cables.
Accessories: Matching accessories available like PVC Shrouds, locknuts and earth tag
Function: CW Type glands provide a seal on the outer sheath and a specific armour clamp for armored cable. The armor clam provides an electrical bond for armor cable and the gland.
CW Cable Gland – Armored, Metric, NPT Thread
| Code | Entry Thread | Cable Dia | Thread length L(mm) | Entry Hole Size (mm) | Armor | Braid | Hexagon Dimensions “H” | Length “ L” (mm) | |||
| Metric | NPT | Metric | NPT | Metric | NPT | ||||||
| Outer A | Size | Size | |||||||||
| JX-CW-16A | M16/M20 | 1/2’’ | 43325 | 15 | 15 | 17/21 | 22 | 0.9/1.25 | 0.05/0.8 | H25*27 | 59 |
| JX-CW-16B | M16/M20 | 1/2’’ | 12-15.1 | 15 | 15 | 17/21 | 22 | 0.9/1.25 | 0.05/0.8 | H25*27 | 59 |
| JX-CW-20A | M20 | 1/2’’/ 3/4’’ | 13-17.5 | 15 | 15/16 | 21 | 22/27 | 0.9/1.25 | 0.05/0.8 | H31*34 | 65 |
| JX-CW-20B | M20 | 1/2’’/ 3/4’’ | 16-19.5 | 15 | 15/16 | 21 | 22/27 | 0.9/1.25 | 0.05/0.8 | H31*34 | 65 |
| JX-CW-25A | M25 | 3/4’’ / 1’’ | 17.5-22 | 15 | 16/18 | 26 | 27/34 | 1.25/1.6 | 0.05/0.8 | H36*39 | 70 |
| JX-CW-25B | M25 | 3/4’’ / 1’’ | 21-26 | 15 | 16/18 | 26 | 27/34 | 1.25/1.6 | 0.05/0.8 | H36*39 | 70 |
| JX-CW-32A | M32 | 1’’ / 1.1/4’’ | 22-28 | 15 | 18/19 | 33 | 34/43 | 1.6/2.0 | 0.05/1.2 | H45*49 | 74 |
| JX-CW-32B | M32 | 1’’ / 1.1/4’’ | 27-32 | 15 | 18/19 | 33 | 34/43 | 1.6/2.0 | 0.05/1.2 | H55*59 | 74 |
| JX-CW-40A | M40 | 1.1/4’’ / 1.1/2’’ | 30-35 | 15 | 19/21 | 41 | 43/50 | 1.6/2.0 | 0.05/1.2 | H55*59 | 82 |
| JX-CW-40B | M40 | 1.1/4’’ / 1.1/2’’ | 35.1-40 | 15 | 19/21 | 41 | 43/50 | 1.6/2.0 | 0.05/1.2 | H68*73 | 82 |
| JX-CW-50A | M50 | 1.1/2’’ / 2’’ | 38-45 | 15 | 21/24 | 51 | 50/62 | 1.8/2.5 | 0.05/1.2 | H68*73 | 88 |
| JX-CW-50B | M50 | 1.1/2’’ / 2’’ | 43-50 | 15 | 21/24 | 51 | 50/62 | 1.8/2.5 | 0.05/1.2 | H82*88 | 88 |
| JX-CW63A | M63 | 2’’ / 2’’ | 48-53 | 15 | 24/24 | 64 | 62/74 | 1.8/2.5 | 0.05/1.2 | H82*88 | 100 |
| JX-CW63B | M63 | 2’’ / 2.1/2’’ | 51-56 | 15 | 24/27 | 64 | 62/74 | 1.8/2.5 | 0.05/1.2 | H82*88 | 100 |
| JX-CW63C | M63 | 2’’ / 2.1/2’’ | 55-60 | 15 | 24/27 | 64 | 62/74 | 1.8/2.5 | 0.05/1.2 | H98*106 | 100 |
| JX-CW75A | M75 | 2.1/2’’ / 2.1/2’’ | 56-62 | 20 | 27/27 | 76 | 74/90 | 1.8/2.5 | 0.05/1.2 | H98*106 | 121 |
| JX-CW75B | M75 | 2.1/2’’ / 2.1/2’’ | 62.1-66 | 20 | 27/27 | 76 | 74/90 | 1.8/2.5 | 0.05/1.2 | H98*106 | 121 |
| JX-CW75C | M75 | 2.1/2’’ / 3’’ | 66.1-70 | 20 | 27/30 | 76 | 74/90 | 1.8/2.5 | 0.05/1.2 | H98*106 | 121 |
| JX-CW75D | M75 | 2.1/2’’ / 3’’ | 68-75 | 20 | 27/30 | 76 | 74/90 | 1.8/2.5 | 0.05/1.2 | H98*106 | 121 |
| JX-CW90A | M90 | 3’’ / 3.1/2’’ | 74-83 | 25 | 30/32 | 91 | 90/102 | 1.8/3.0 | 0.05/1.6 | H110*120 | 133 |
| JX-CW90B | M90 | 3’’ / 3.1/2’’ | 82-90 | 25 | 30/32 | 91 | 90/102 | 1.8/3.0 | 0.05/1.6 | H110*120 | 133 |
Single Sealed EX Cable Wiring JX7 Series
Material: Stainless Steel304,316L,H62
Cable: With packing seal
Protection Class: IP66
Explosion Mark: Exd II
Features:
With quick installation, safety, reliability and other characteristics of good protection.
1. It is Made of copper or stainless steel material;
2. Cable is sealed with gasketing;
3. With reliable installation, good protection and explosion-proof function;
4. Isolating gasket tube in suitable for clamping and fixing steel wire knit of armored cable, it is cable core and enclosure gas sealing protection most be lP66
Function: Suitable for clamping and fixing various types of armored cable.
It is widely used for clamping oil exploitation, oil refining and chemical industry, military and other hazardous locations and sealed cable;
It is applicable to explosive gas environment 1 zone, 2 zone places;
It is suitable for places of combustible dust environment 20 zone, 21 zone 22 zone;
It is suitable forⅡA，ⅡB，ⅡC explosive gas environment.

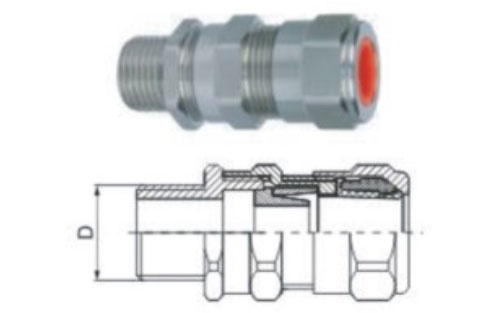

The Drawing:
Company Profile
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.
