Compression Cable Gland Supplier
Company Profile
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.
To create a better brand image, JIXAING takes good faith for the business, keeps innovative through development and completely implements good service. Strongly believe that our company will be presented itself as a brand-mew image among the enterprises in our country or even in the world.
Tel: +86-577-61118056
Fax: +86-577-61118055
Mobile: +86-18958708338
Email: jx@jxljq.com
product description

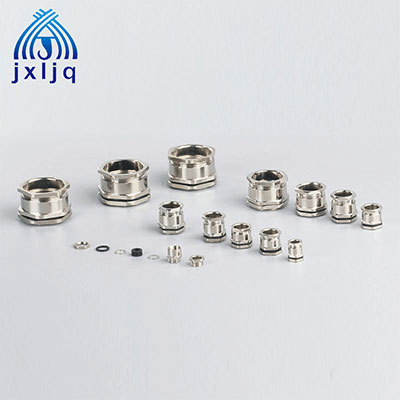

Single Compression Cable Gland
Thread Size: PG Thread
Material: Brass with nickel plated
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Working temperature: -40℃to 100℃short time to 120℃
Function:
Single compression Brass Cable Gland for unarmored Cable, helps in providing electrical continuity between unarmored cable and gland entry component. Also, it provides a seal on the outer sheath of the cable, thus ensuring no damage to cable sheathing. It is used both in indoor and outdoor applications, in all climatic conditions, as these are weather proof and waterproof.
Technical Parameter:
| Product Code | Thread AG | Cable range(mm) | Thread O.D. (mm) | Thread length GL(mm) | Joint Length (mm) | Spanner Size (mm) |
| JX-PG7-SIN | PG7 | 43592 | 12.5 | 5 | 16.5 | 14/15 |
| JX-PG9-SIN | PG9 | 43628 | 15.2 | 6.2 | 17.5 | 18/18 |
| JX-PG11-SIN | PG11 | 43784 | 18.6 | 6.5 | 17.5 | 20/21 |
| JX-PG13.5-SIN | PG13.5 | 14-18 | 20.4 | 7.5 | 20.5 | 22/23 |
| JX-PG16-SIN | PG16 | 17-23 | 22.5 | 8 | 22.2 | 24/25 |
| JX-PG21-SIN | PG21 | 22-27 | 28.3 | 8 | 23.5 | 30/32 |
| JX-PG29-SIN | PG29 | 26-33 | 37 | 8 | 25.5 | 40/41 |
| JX-PG36-SIN | PG36 | 32-41 | 47 | 10 | 29 | 50/52 |
| JX-PG42-SIN | PG42 | 40-49 | 54 | 11 | 33 | 57/57 |
| JX-PG48-SIN | PG48 | 48-57 | 59.3 | 12 | 34 | 64/64 |

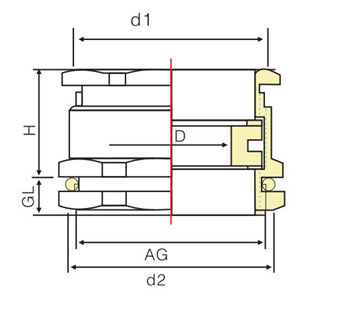

The Drawing of Marine Cable Gland:

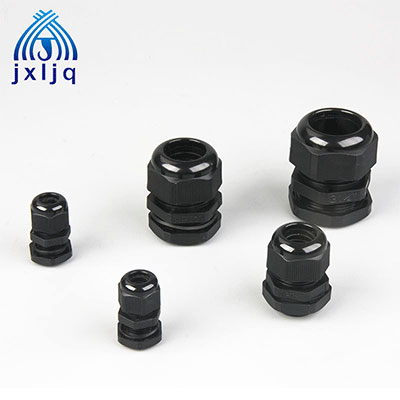

Nylon Cable Gland Standard PG Thread
Material: Adopting Nylon PA66 certificated by UL
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature:
-40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics: IP68 (Rotate the part and use O ring)
Colors: Black (RAL9005),Gray(RAL7035), other colors are available upon requests.
Function:
1. Can be used in liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.
2.Use to positively bond the conduit to a box or enclosure.
The Drawing of Marine Cable Gland:
