Cable Gland Supplier Recommend

Company Profile

YUEQING JIXIANG CONNECTOR CO.,LTD  is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

Tel: +86-577-61118056

Fax: +86-577-61118055

Mobile: +86-18958708338

Email: jx@jxljq.com

product description

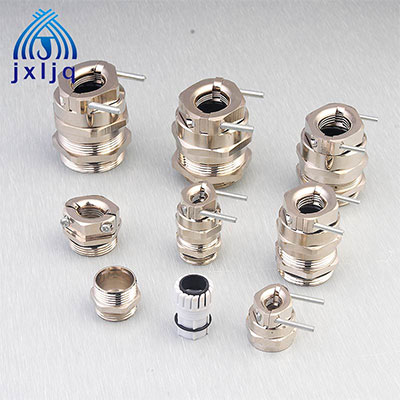

Brass Double-Locked Cable Gland

Material: Brass with nickel plated

Clamping part: Nylon PA (UL File No: E240925). Refer to Ul94-V2

Sealing element: NBR

Thread Type: PG according to DIN40430

Test Standard: EN50262/EN62444

Protection Class: IP68

Working Temperature: -40 deg to 100 deg

Product Certification: CE certification and ISO9001.

Function: Suitable for all sealing, fixed, non-slip, the occasion of high temperature requirements.

The Drawing of Double-Locked Cable Gland:

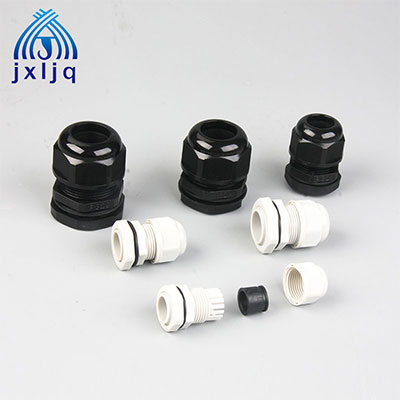

Nylon Cable Gland United Structure Metric Thread

Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).

Product Certification: CE certification, ROHS certification and ISO9001.

Protection Degree: IP68- 10 BAR

Working temperature:

-40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.

Characteristics:

The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.

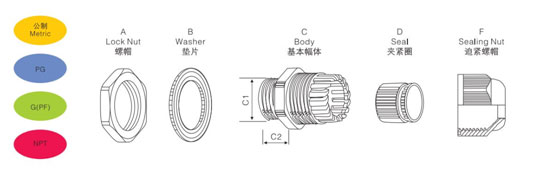

The Drawing of United Structure Nylon Cable Gland:
