Cable Gland supplier
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.
To create a better brand image, JIXAING takes good faith for the business, keeps innovative through development and completely implements good service. Strongly believe that our company will be presented itself as a brand-mew image among the enterprises in our country or even in the world.
Tel: +86-577-61118056
Fax: +86-577-61118055
Mobile: +86-18958708338
Email: jx@jxljq.com
product description

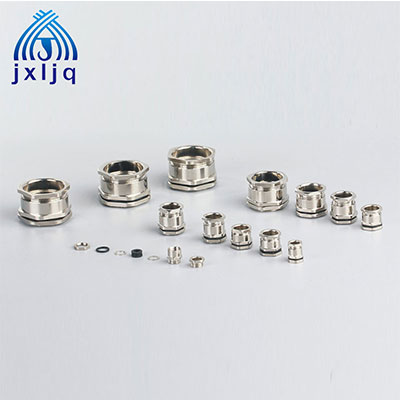

Single Compression Cable Gland
Thread Size: PG Thread
Material: Brass with nickel plated
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Working temperature: -40℃ to 100℃ short time to 120℃
Function: Single compression Brass Cable Gland for unarmored Cable, helps in providing electrical continuity between unarmored cable and gland entry component. Also, it provides a seal on the outer sheath of the cable, thus ensuring no damage to cable sheathing. It is used both in indoor and outdoor applications, in all climatic conditions, as these are weather proof and waterproof.
Single Compression Brass Cable Gland- PG Thread
| Product Code | Thread AG | Cable range(mm) | Thread O.D. (mm) | Thread length GL(mm) | Joint Length (mm) | Spanner Size (mm) |
| JX-PG7-SIN | PG7 | 43592 | 12.5 | 5 | 16.5 | 14/15 |
| JX-PG9-SIN | PG9 | 43628 | 15.2 | 6.2 | 17.5 | 18/18 |
| JX-PG11-SIN | PG11 | 43784 | 18.6 | 6.5 | 17.5 | 20/21 |
| JX-PG13.5-SIN | PG13.5 | 14-18 | 20.4 | 7.5 | 20.5 | 22/23 |
| JX-PG16-SIN | PG16 | 17-23 | 22.5 | 8 | 22.2 | 24/25 |
| JX-PG21-SIN | PG21 | 22-27 | 28.3 | 8 | 23.5 | 30/32 |
| JX-PG29-SIN | PG29 | 26-33 | 37 | 8 | 25.5 | 40/41 |
| JX-PG36-SIN | PG36 | 32-41 | 47 | 10 | 29 | 50/52 |
| JX-PG42-SIN | PG42 | 40-49 | 54 | 11 | 33 | 57/57 |
| JX-PG48-SIN | PG48 | 48-57 | 59.3 | 12 | 34 | 64/64 |

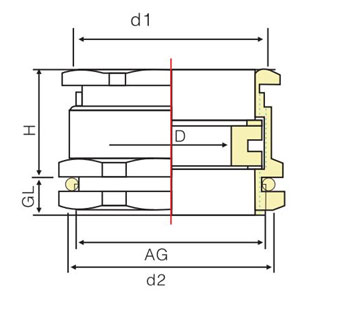

The Drawing of Single Compression Cable Gland:
Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Working temperature: -40℃ to 100℃ short time to 120℃
Function: Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured. These cable glands are designed to withstand water,dust,salt,acid-based,alcohol, oil and common solvent.

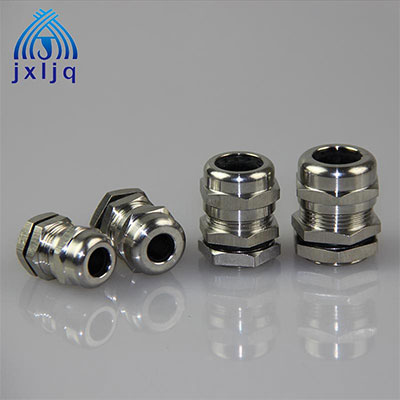

Stainless Steel Cable Gland - G,NPT Thread
| Product Code | Thread AG | Cable range(mm) | Thread O.D. (mm) | Thread No. Per Inch | Thread length GL(mm) | Joint Length (mm) | Spanner Size (mm) |
| JX-G1/4-SS | G1/4 | 3-6.5 | 13.1 | 19 | 7 | 19 | 14 |
| JX-G3/8-SS | G3/8 | 43563 | 16.6 | 19 | 8 | 19 | 18 |
| JX-G1/2-SS | G1/2 | 43628 | 20.9 | 14 | 8 | 22 | 22 |
| JX-G3/4-SS | G3/4 | 13-18 | 26.4 | 14 | 9 | 25 | 30 |
| JX-G1-SS | G1 | 18-25 | 33.2 | 11 | 11 | 29 | 40 |
| JX-G11/4-SS | G1-1/4 | 25-33 | 41.9 | 11 | 13 | 35 | 50 |
| JX-G11/2-SS | G1-1/2 | 32-38 | 47.8 | 11 | 14 | 37 | 57 |
| JX-G2-SS | G2 | 37-44 | 59.6 | 11 | 14 | 38 | 64 |
| JX-G21/2-SS | G2-1/2 | 42-52 | 75.1 | 11 | 15 | 38 | 77 |
| JX-G3-SS | G3 | 65-70 | 87.8 | 11 | 15 | 48 | 94 |
| JX-NPT1/4-SS | NPT1/4 | 3-6.5 | 13.6 | 18 | 7 | 19 | 14 |
| JX-NPT3/8-SS | NPT3/8 | 43563 | 17 | 18 | 8 | 19 | 18 |
| JX-NPT1/2-SS | NPT1/2 | 43628 | 21.2 | 14 | 8 | 22 | 22 |
| JX-NPT3/4-SS | NPT3/4 | 13-18 | 26.5 | 14 | 9 | 25 | 30 |
| JX-NPT1-SS | NPT1 | 18-25 | 33.2 | 11.5 | 11 | 29 | 40 |
| JX-NPT11/4-SS | NPT1-1/4 | 25-33 | 41.9 | 11.5 | 13 | 35 | 50 |

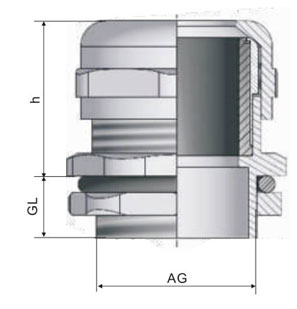

The Drawing of Stainless Steel Gland
