Cable Gland Manufacturer
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.
To create a better brand image, JIXAING takes good faith for the business, keeps innovative through development and completely implements good service. Strongly believe that our company will be presented itself as a brand-mew image among the enterprises in our country or even in the world.
Tel: +86-577-61118056
Fax: +86-577-61118055
Mobile: +86-18958708338
Email: jx@jxljq.com
product description
Explosion-Proof Cable Gland JX1 Series
Material: H62, SS304,316
Surface Treatment: Nickel Plating, passivation
Sealing Material: silastic, Neoprene
Explosion-proof Mark: Exd II
Fireproof Classification: V0 (UL94)
Protection Grade: IP66-10 Bars, (screwed – on part)
Working Temperature:
Static from -40°C to 100°C, short time to 120°C
Dynamic from -20°C to 80°C, short time to 100 without halide
Environmental Conditions: High-temperature and atrocious.

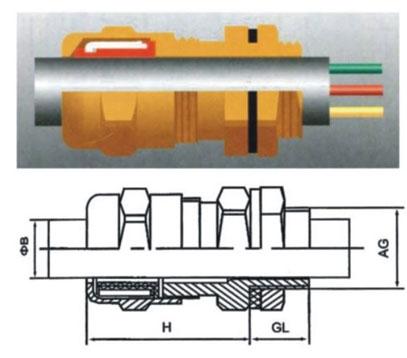

The Drawing :
| Code | AG Thread | Cable Outer diameter (B) | Max. Length (H) | Thread Length (mm) | Six Angle Size | ||
| Metric | NPT,G | Min | Max | On the edge | |||
| JX-1-EX-12 | M20*1.5 | 1/2’’ | 5.5 | 12 | 30 | 15 | 24 |
| JX-1-EX-16 | M20*1.5 | 1/2’’ | 9.5 | 16 | 30 | 15 | 24 |
| JX-1-EX-20.5 | M20*1.5 | 1/2’’-3/4’’ | 12.5 | 20.5 | 35 | 15 | 30 |
| JX-1-EX-26 | M25*1.5 | 3/4’’-1’’ | 16.9 | 26 | 35 | 15 | 36 |
| JX-1-EX-33 | M32*1.5 | 1’’-11/4’’ | 22 | 33 | 39 | 15 | 46 |
| JX-1-EX-41 | M40*1.5 | 11/4’’-11/2’’ | 28 | 41 | 48 | 15 | 55 |
| JX-1-EX-52.6 | M50*1.5 | 11/2’’-2’’ | 36 | 52.6 | 53 | 15 | 65 |
| JX-1-EX-65.3 | M63*1.5 | 2’’-21/2’’ | 46 | 65.3 | 58 | 15 | 80 |
| JX-1-EX-78 | M70*2.0 | 21/2’’-3’’ | 57 | 78 | 65 | 15 | 90 |
Single Sealed EX Cable Wiring JX7 Series
Material: Stainless Steel304,316L,H62
Cable: With packing seal
Protection Class: IP66
Explosion Mark: Exd II
Features:
With quick installation, safety, reliability and other characteristics of good protection.
1. It is Made of copper or stainless steel material;
2. Cable is sealed with gasketing;
3. With reliable installation, good protection and explosion-proof function;
4. Isolating gasket tube in suitable for clamping and fixing steel wire knit of armored cable, it is cable core and enclosure gas sealing protection most be lP66
Function:
Suitable for clamping and fixing various types of armored cable.
It is widely used for clamping oil exploitation, oil refining and chemical industry, military and other hazardous locations and sealed cable;
It is applicable to explosive gas environment 1 zone, 2 zone places;
It is suitable for places of combustible dust environment 20 zone, 21 zone 22 zone;
It is suitable forⅡA，ⅡB，ⅡC explosive gas environment.

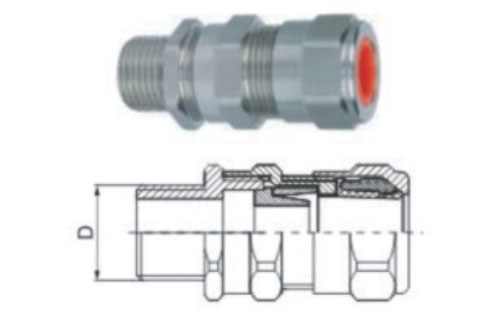

The Drawing:
