Breathable Cable Gland supplier

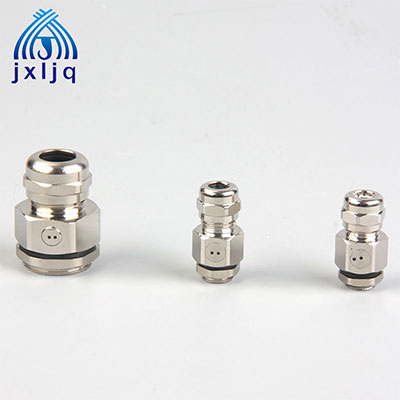

               Breathable Cable Gland-Metric Thread

Thread Size: Metric Thread

Material: The joint body parts are made of nickel plated brass, the clamping insert is made of Nylon PA, and the seal is made up of nitrile rubber(NBR) ,using weathering rubber (EDPM) .

Product Certification: CE, ROHS, IP68 and ISO9001.

Protection Degree: in the specific cable range, the using of the O-ring helps tighten head, so that to reach IP68-10 bar pressure.

Working temperature: Static: -40℃to 100℃, Short time to 120℃.

Thread length: The short  thread is suitable for holes in the  board or equipment with inner thread, while the long thread is available for thick planted.

Usage: Fix the machine board with the body, and press the tight head tightly to fix the cable.

More options: Customization is acceptable. Welcome to inquire.

Draft of Drawing

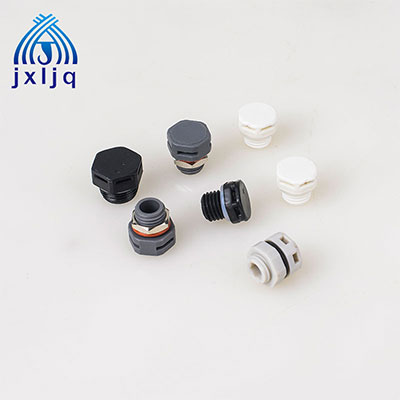

                        Nylon Breathable Vent Plug

Material: Nylon PA66

Product Certification: CE certification,ROHS and UL.

Protection Degree: The Depth of Waterproof to 3-5 M, The O-ring up to IP68 Waterproof Level: Anti-Vibration and shock tested IEC-60077-1999,according with ROHS

Working temperature:  -40℃to 120℃, short time up to 150℃.

Airflow: 325ml/min (0.07 bar)

Water entry pressure: >5 bar

Function:

• 1. Waterproof and dustproof;
• 2.Vent,protect the inside equipment operation normally and long in the serious environment
• 3.Heat dissipation,replace or assist in heat sink to lower inside temperature.
• 4.Prolong the product’s service life.
• 5.Color: Grey,white and black.

Supplier Information

YUEQING JIXIANG CONNECTOR CO.,LTD  is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

To create a better brand image, JIXAING takes good faith for the business, keeps innovative through development and completely implements good service. Strongly believe that our company will be presented itself as a brand-mew image among the enterprises in our country or even in the world.
