Brass cable connector manufacturers

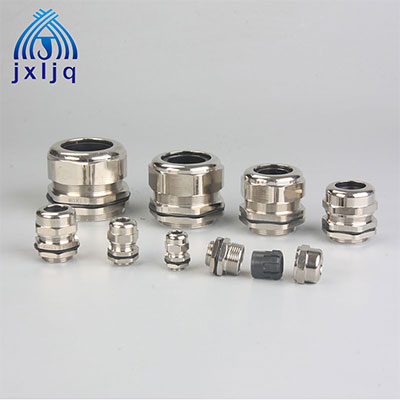

1. Brass Cable Gland MG Series G,NPT Thread

Cap nut: Brass with nickel Plated

Clamping Insert: PA66 ( Flammability UL 94V-2)

Sealing Ring: EPDM

Gland Body: Brass with nickel plated

Certificate: CE, IP68, ISO9001, TUV

Protection Class : IP68-10 BAR

Operating Temperature: -40 DEG to +100 DEG, (short time to 120 DEG); -20 DEG to 80 DEG, (short time to 100 DEG)

Features: The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.

Function: Metal Cable Gland is cable supporting products, connector cable  can be locked, the other end of the device can access the device through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.

More options: Customization is acceptable. Welcome to inquire when ordering.

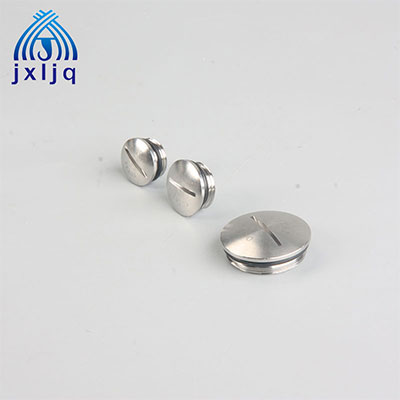

2. Stainless Steel Screw Cap

Material: Stainless Steel 304/316

Sealing: Modified Rubber

Shape: Hexagonal,Round

Protection Degree: IP66

Temperature:  -40 DEG to 100 DEG, short time to 120 DEG

Features: In order to close the reserved holes or extra holes, make the product beautiful, it can keep waterproof, dust-proof, salt, acid, alcohol, oil and solvent resistant.

Certificate: CE, Exd IIC Gb/Ex e II GB

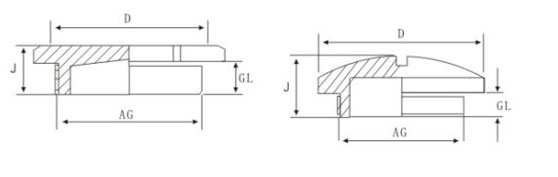

The Drawing of Stainless Steel Screw Cap:

Manufacturer information

YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.
