Thread Size: TJ
Material: Brass, chromium plated
Product Certification: CE certificationand ISO9001.
Protection Degree: IP54
Working temperature: -40℃to 110℃, short time up to 120℃.
Function: Can be used in meter,machines,transportation,medicine,and all types of unarmored marine electrical cable fittings.
More options: Customization is accept.Welcome to inquire.
| Marine Stuffing Box- TJ Clamping Type | |||||||
| Product Code | Cable Range (mm) | d (mm) | D (mm) | d1(mm) | D1(mm) | H1(mm) | H(mm) |
| JX-TJ8 | 5-7 | 8 | M16*1 | M14*1 | 20 | 9 | 32 |
| JX-TJ13 | 6-12 | 13 | M20*1 | M18*1 | 24 | 10 | 35 |
| JX-TJ16 | 11-15 | 16 | M27*1.5 | M22*1.5 | 31.5 | 12 | 40 |
| JX-TJ19 | 14-18 | 19 | M30*1.5 | M27*1.5 | 34.5 | 12 | 42 |
| JX-TJ24 | 17-23 | 24 | M35*1.5 | M30*1.5 | 39.6 | 12 | 44 |
| JX-TJ28 | 22-27 | 28 | M42*2 | M36*1.5 | 46.5 | 15 | 46 |
| JX-TJ34 | 26-33 | 34 | M47*2 | M42*2 | 54 | 15 | 49 |
| JX-TJ42 | 32-41 | 42 | M55*2 | M52*2 | 62 | 15 | 54 |
| JX-TJ50 | 40-49 | 50 | M62*2 | M58*27 | 68.5 | 15 | 56 |
| JX-TJ58 | 48-57 | 58 | M71*2 | M68*2 | 77.5 | 20 | 56 |

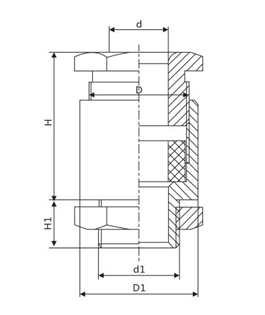

The Drawing of Marine Cable Gland:
