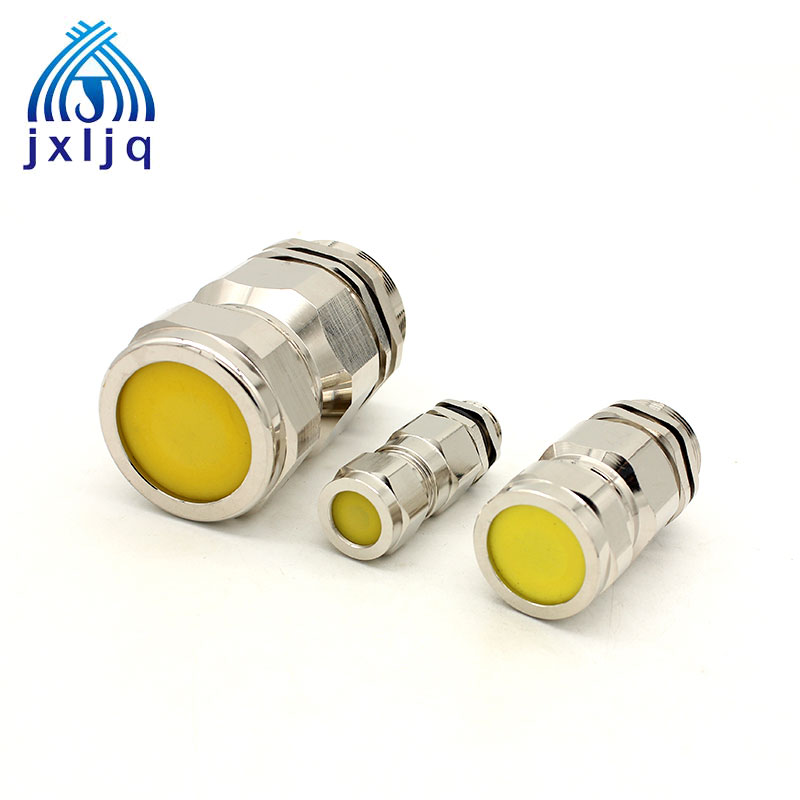

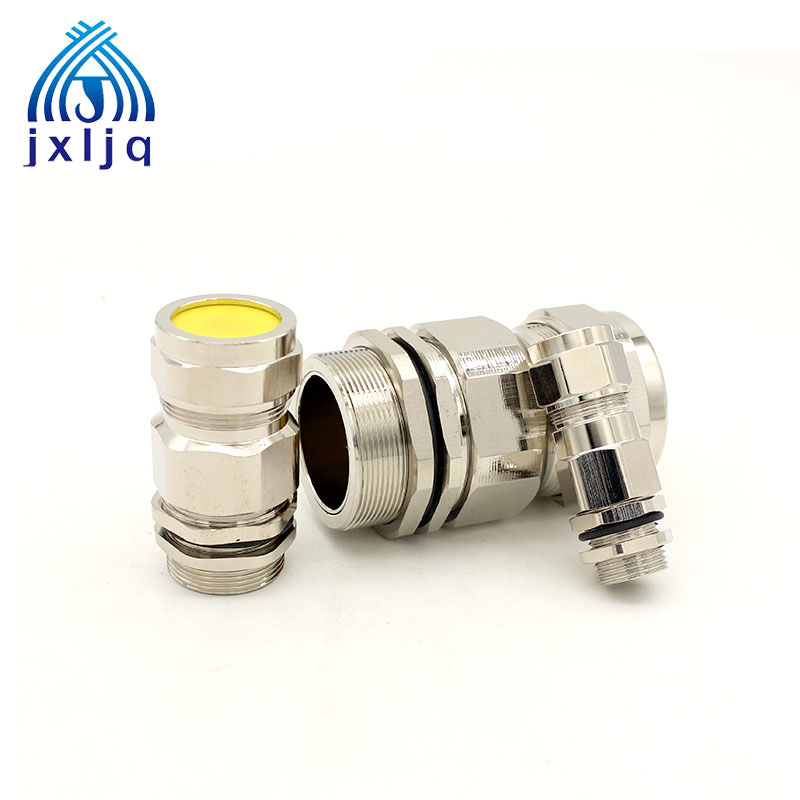

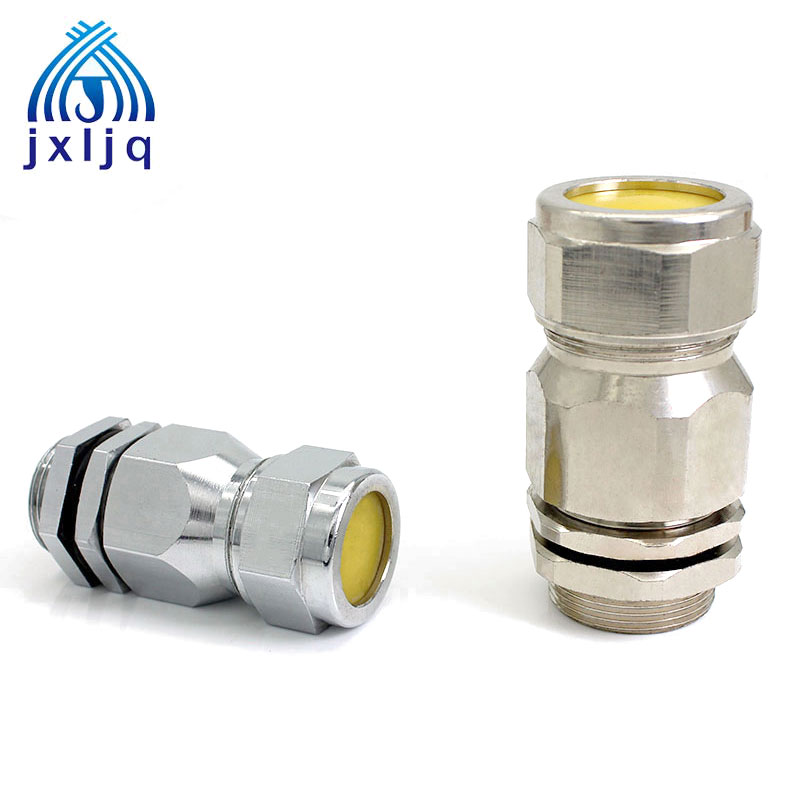

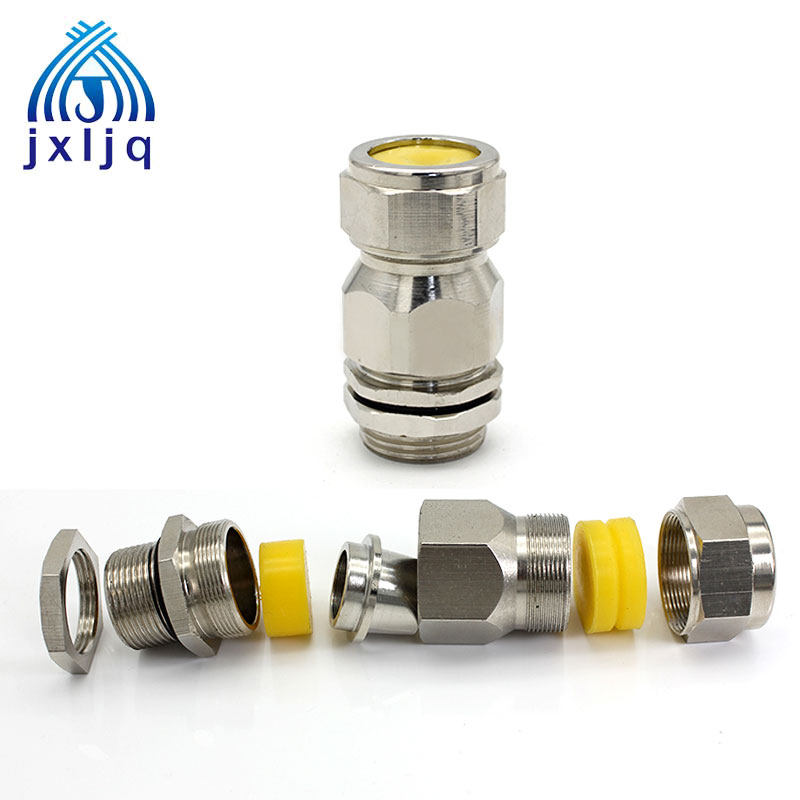

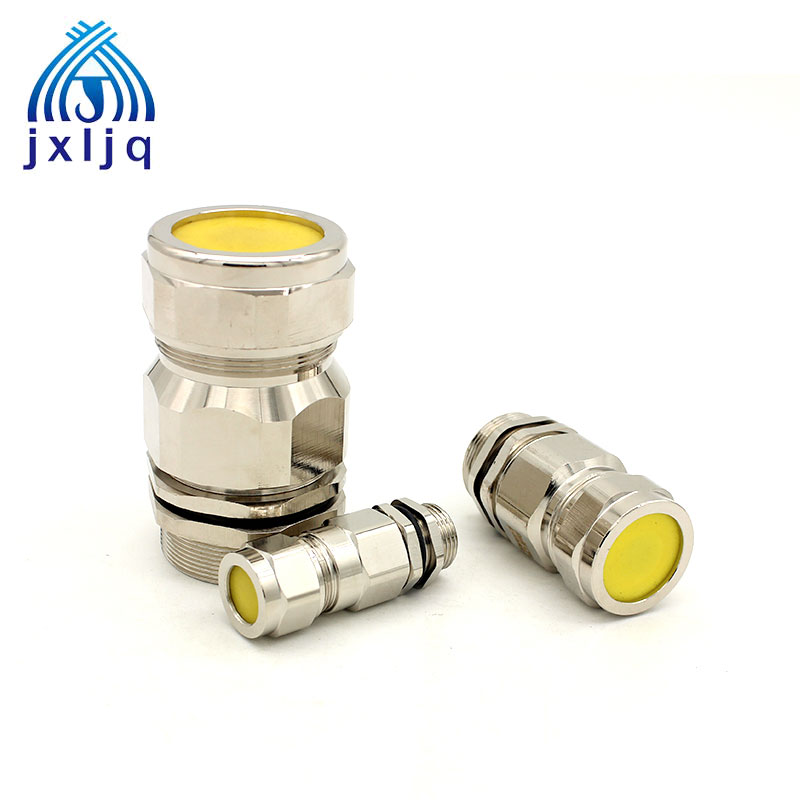

Explosion Proof Cable Gland is widely used in oil, chemical, coal mines, ships, aerospace and other fields.It has the characteristics of high strength, corrosion corrosion, high temperature resistance, pressure resistance, etc., and can run stably in a harsh working environment for a long time.
Inquiry Now >>
Material: H62, SS304,316
Surface Treatment: Nickel Plating, passivation
Sealing Material: silastic, Neoprene
Explosion-proof Mark: Exd II
Fireproof Classification: V0 (UL94)
Protection Grade: IP66-10 Bars, (screwed – on part)
Working Temperature: Static from -40°C to 100°C, short time to 120°C
Dynamic from -20°C to 80°C, short time to 100 without halide
Environmental Conditions: High-temperature and atrocious.

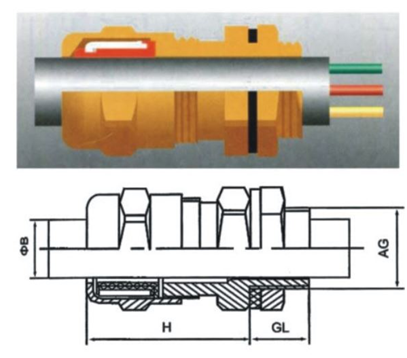

The Drawing :
| Code | AG Thread | Cable Outer diameter (B) | Max. Length (H) | Thread Length (mm) | Six Angle Size | ||
| Metric | NPT,G | Min | Max | On the edge | |||
| JX-1-EX-12 | M20*1.5 | 1/2’’ | 5.5 | 12 | 30 | 15 | 24 |
| JX-1-EX-16 | M20*1.5 | 1/2’’ | 9.5 | 16 | 30 | 15 | 24 |
| JX-1-EX-20.5 | M20*1.5 | 1/2’’-3/4’’ | 12.5 | 20.5 | 35 | 15 | 30 |
| JX-1-EX-26 | M25*1.5 | 3/4’’-1’’ | 16.9 | 26 | 35 | 15 | 36 |
| JX-1-EX-33 | M32*1.5 | 1’’-11/4’’ | 22 | 33 | 39 | 15 | 46 |
| JX-1-EX-41 | M40*1.5 | 11/4’’-11/2’’ | 28 | 41 | 48 | 15 | 55 |
| JX-1-EX-52.6 | M50*1.5 | 11/2’’-2’’ | 36 | 52.6 | 53 | 15 | 65 |
| JX-1-EX-65.3 | M63*1.5 | 2’’-21/2’’ | 46 | 65.3 | 58 | 15 | 80 |
| JX-1-EX-78 | M70*2.0 | 21/2’’-3’’ | 57 | 78 | 65 | 15 | 90 |
