Explosion Proof Cable Gland is widely used in oil, chemical, coal mines, ships, aerospace and other fields.It has the characteristics of high strength, corrosion corrosion, high temperature resistance, pressure resistance, etc., and can run stably in a harsh working environment for a long time.
Inquiry Now >>
Material: Brass,nickel plated / SS304/SS316L
Surface treatment: nickel plating, passivation
Sealing materials: silastic、Neoprene
Explosion-proof mark: ExdllC GB
Fireproof classification: V0(UL94)
Protection grade: IP66-10 bars,(screwed-on part)
Ambinent temperature: Static from -60°C to 100°C, short time 120°C
Dymamic from -20°C to 80°C, short time 100°C Without halide
Environmental conditions: high-temperature and harsh environment

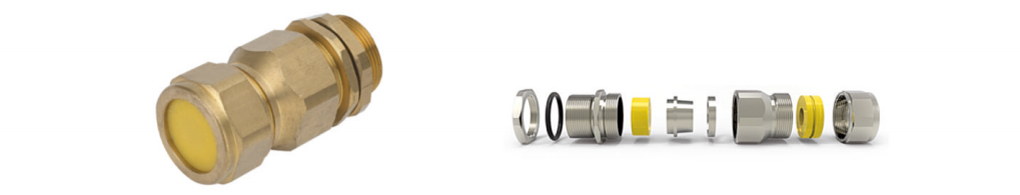

JX-6 series Explosion-proof Cable Gland
Double compression
1.Material: Brass, nickel plated/SS304/SS316L
2.cable with packing seal;
3.with quick installation, safety, reliability, and other characteristics of good protection;
4.suitable for clamping and fixing various types of armored cable.
|
|

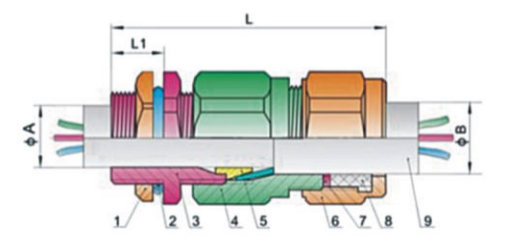

1 nut 2 sealing ring 3 inlet connecting body 4 middle connecting body 5 taper sleeve 6 taper nut 7 gasket 8 sealing ring 9 armored cable
|
|
Code |
Metric thread (M) |
Inch screw threads(G) |
(NPT)thread |
Outerdiameter of cable |
Ll Thread length (mm) |
L length (mm) |
Ex-mark |
Protection level |
|
|
Outlet Amm |
IncominglingB mm |
||||||||
|
JX-6-EX-16 |
M16X1.5 |
- |
- |
9 |
5-15 |
16 |
72 |
ExdllCGb |
IP66 |
|
JX-6-EX-20 |
M20X1.5 |
Gl/2 |
NPT 1/2 |
9 |
5-15 |
16 |
72 |
||
|
JX-6-EX-25 |
M25X1.5 |
G3/4 |
NPT 3/4 |
15 |
8-20 |
16 |
72 |
||
|
JX-6-EX-32 |
M32X1.5 |
G1 |
NPT1 |
19 |
10-25 |
18 |
81 |
||
|
JX-6-EX-40 |
M40X1.5 |
Gll/4 |
NPT 11/4 |
27 |
12-30 |
20 |
94 |
||
|
JX-6-EX-50 |
M50X1.5 |
Gll/2 |
NPT 11/2 |
35 |
14-38 |
20 |
96 |
||
|
JX-6-EX-63 |
M63X1.5 |
G2 |
NPT 2 |
42 |
20-48 |
20 |
99 |
||
|
JX-6-EX-75 |
M75X1.5 |
G21/2 |
NPT 2 1/2 |
52 |
24-58 |
22 |
110 |
||
|
JX-6-EX-88 |
M88X1.5 |
G3S |
NPT3S |
65 |
30-70 |
22 |
115 |
||
|
JX-6-EX-90 |
M90X1.5 |
G3 |
NPT3 |
65 |
30-70 |
22 |
115 |
||
|
JX-6-EX-100 |
M100X1.5 |
G4S |
NPT4S |
86 |
45-102 |
23 |
121 |
||
|
JX-6-EX-110 |
M110X1.5 |
G4 |
NPT4 |
90 |
45-102 |
23 |
121 |
||
