M etric thread type

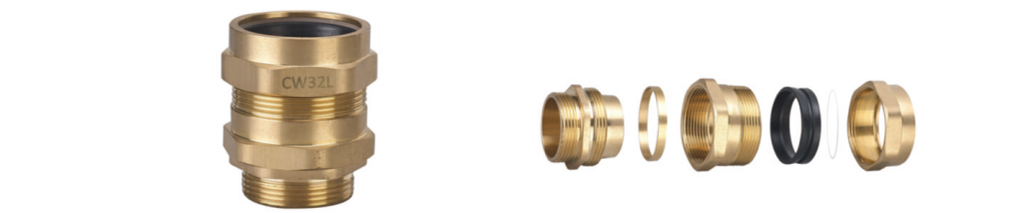

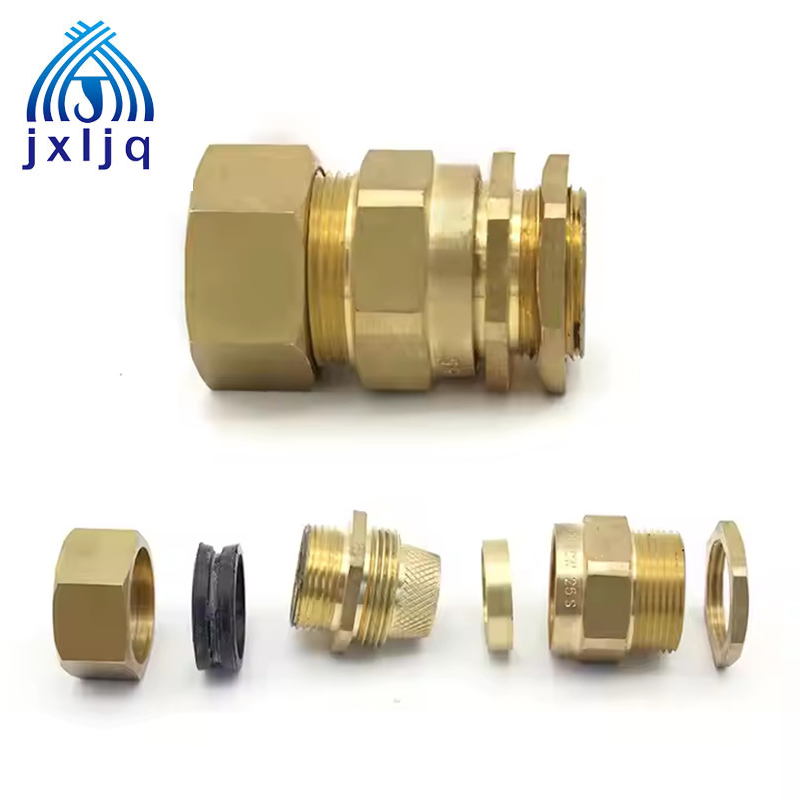

Armoured Cable Glands CW Series Type:CW (single Compression Gland) Material:Brass With Or Without Nickel Plated
Standard:BS6121
Protection Class:IP66&IP67
Temperature:-20°C+80°C
Thread Options: Metric, NPT, BSP & PG
Application;For indoor or outdoor use with all types of SWA cables
Accessories: Matching accessories available like PVC Shrouds locknuts & earth tag
Function:CW type glands provide a seal on the outer sheath and a specific armour clamp for armoured cable.The armour clamp provides an electrical bond for armour cable gland.
|
Thread |
Thread size "C" |
Minimum length ofthread"D" |
Cable Range Max"A"(mm) |
Cable Range Max"B"(mm) |
|
JX-CW20S |
20 |
10 |
11.8 |
17.8 |
|
JX-CW20L |
20 |
10 |
14.0 |
20.8 |
|
JX-CW25S |
25 |
10 |
18.0 |
24.0 |
|
JX-CW25L |
25 |
10 |
20.3 |
27.4 |
|
JX-CW32S |
32 |
10 |
24.5 |
31.0 |
|
JX-CW32L |
32 |
10 |
26.5 |
34.2 |
|
JX-CW40S |
40 |
13 |
30.4 |
38.5 |
|
JX-CW40L |
40 |
13 |
33.2 |
41.0 |
|
JX-CW50S |
50 |
13 |
40.0 |
47 |
|
JX-CW50L |
50 |
13 |
44.0 |
53.5 |
|
JX-CW63S |
63 |
14 |
50.0 |
59.0 |
|
JX-CW63L |
63 |
13.5 |
56.0 |
66.0 |
|
JX-CW75S |
75 |
15 |
63.5 |
73.0 |
|
JX-CW75L |
75 |
15 |
69.0 |
73.0 |
