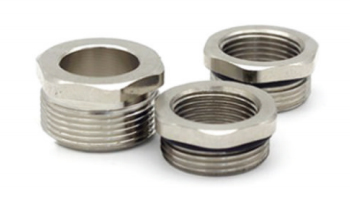

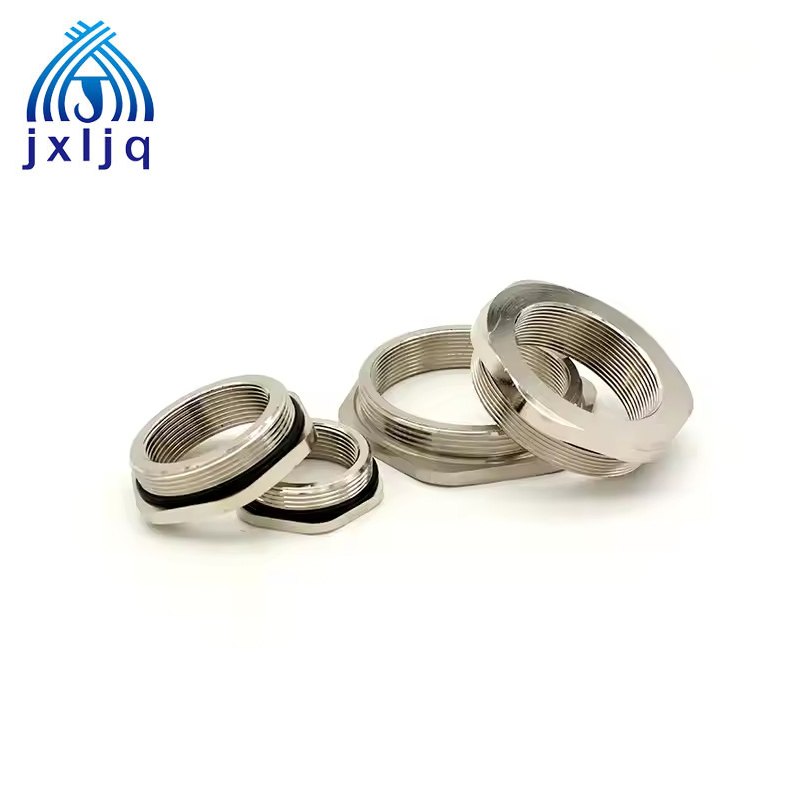

Cable Gland Reducer

Material: Brass with nickel plated/SS304/SS316L

Ambient temperature: - 40°C~ 100°C, temporary: to 120°C

Functien: Change larger Thread to smaller Thread.

Application: A reducer is used if the dimensions of existing tapped Holes are too large for a given gland. It provides a means of connection between cable entry devices and equipment having different threads.

Accessories: Locknut, Sealing Washer

Code

Hexagon series

Size

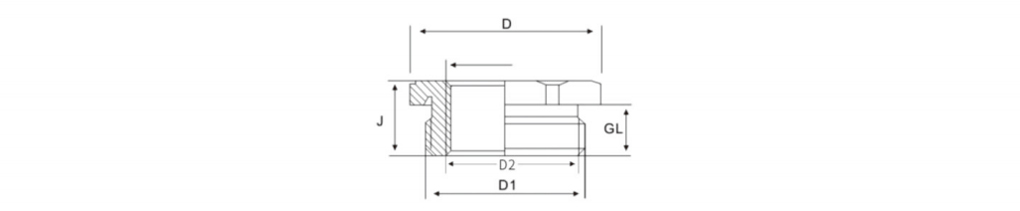

Thread Length GL(mm)

Height (h)mm

Hexagon size(D)mm

Outer Thread(Dl)

Inner Thread(D2)

JX-M16/12A-RE

JX-M16/12B-RE

M16X1.5

M 12X1.5

6

8.5

18

JX-M20/16A-RE

JX-M20/16B-RE

M 20X1.5

M 16X1.5

6.5

9

24

JX-M25/20A-RE

JX-M25/20B-RE

M25X1.5

M20X1.5

7.5

10

30

JX-M32/25A-RE

JX-M32/25B-RE

M32X1.5

M25X1.5

8

11.5

40

JX-M40/32A-RE

JX-M40/32B-RE

M40X1.5

M32X1.5

9

12.5

43

JX-M50/40A-RE

JX-M50/40B-RE

M50X1.5

M40X1.5

10

14

57

JX-M63/50A-RE

JX-M63/50B-RE

M63X1.5

M50X1.5

10

14

64

JX-PG9/7A-RE

JX-PG9/7B-RE

PG9

PG7

6

8.5

17

JX-PG11/9A-RE

JX-PG11/9B-RE

PG11

PG9

6.5

8.5

20

JX-PG13.5/11A-RE

JX-PG13.5/11B-RE

PG13.5

PG11

6.5

9

22

JX-PG16/13.5A-RE

JX-PG16/13.5B-RE

PG16

PG13.5

6.5

9.5

24

JX-PG21/16A-RE

JX-PG21/16B-RE

PG21

PG 16

7.5

10

30

JX-PG29/21A-RE

JX-PG29/21B-RE

PG29

PG21

8

11.5

40

JX-PG36/29A-RE

JX-PG36/29B-RE

PG36

PG29

9

12.5

50

JX-PG42/36A-RE

JX-PG42/36B-RE

PG42

PG36

10

14

57

JX-PG48/42A-RE

JX-PG48/42B-RE

PG48

Pg42

10

14

64

JX-NPT1/2-NPT3/8A-RE

JX-NPT1/2-NPT3/8B-RE

NPTl/2 "

NPT3/8 "

6.5

9

24

JX-NPT3/4-NPT1/2A-RE

JX-NPT3/4-NPT1/2B-RE

NPT3/4 "

NPTl/2 "

7.5

10

30

JX-NPT1-NPT3/4A-RE

JX-NPT1-NPT3/4B-RE

NPT1 H

NPT3/4 "

8

11.5

40

JX-NPT1-1/4-NPT1A-RE

JX-NPT1-1/4-NPT1B-RE

NPTl-l/4 "

NPT1 "

9

12.5

50
