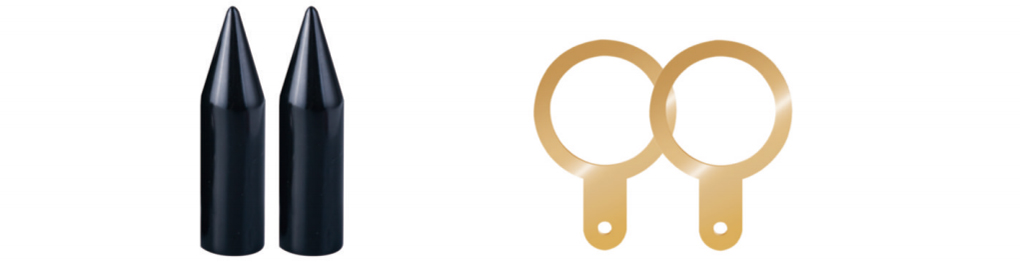

Earth tag
Specifications |
Size(mm) |
Thickness(mm) |
|||||
M |
G |
NPT |
A |
B |
H |
1 |
|
M20 |
G1/2 |
NPT1/2 |
20.9 |
7 |
53.4 |
1 |
|
M25 |
G3/4 |
NPT3/4 |
25.9 |
7 |
59.4 |
1.5 |
|
M32 |
G1 |
NPT1 |
32.9 |
12.9 |
76.9 |
1.5 |
|
M40 |
G1 1/4 |
NPT1 1/4 |
40.9 |
14 |
88.6 |
1.5 |
|
M50 |
G1 1/2 |
NPT1 1/2 |
50.9 |
14 |
111 |
1.5 |
|
M63 |
G2 |
NPT2 |
63.9 |
14 |
128.4 |
1.5 |
|
M75 |
G2 1/2 |
NPT2 1/2 |
75.8 |
19.9 |
151.7 |
1.5 |
|
M90 |
G3 |
NPT3 |
90 |
20 |
182 |
1.5 |
|
M100 |
G3 1/2 |
NPT3 1/2 |
101.5 |
20 |
194 |
1.5 |

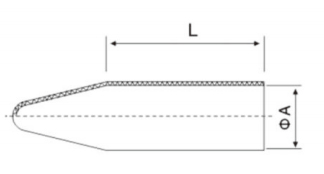

PV Shroud
Specifications |
Size(mm) |
Order No. |
||||
M |
G |
NPT |
ΦA |
L |
||
M20 |
G1/2 |
NPT1/2 |
26.8 |
80 |
JX-PVC01 |
|
M20 |
G1/G2 |
NPT1/2 |
27 |
58 |
JX-PVC02 |
|
M25 |
G3/4 |
NPT3/4 |
33 |
62 |
JX-PVC03 |
|
M25 |
G3/4 |
NPT3/4 |
34 |
85 |
JX-PVC04 |
|
M32 |
G1 |
NPT1 |
38 |
80 |
JX-PVC05 |
|
M32 |
G1 |
NPT1 |
40 |
91 |
JX-PVC06 |
|
M40 |
G1 1/4 |
NPT1 1/4 |
48.5 |
90 |
JX-PVC07 |
|
M40 |
G1 1/4 |
NPT1 1/4 |
51 |
105 |
JX-PVC08 |
|
M50 |
G1 1/2 |
NPT1 1/2 |
58.5 |
90 |
JX-PVC09 |
|
M50 |
G1 1/2 |
NPT1 1/2 |
60.5 |
120 |
JX-PVC10 |
|
M63 |
G2 |
NPT2 |
71.5 |
100 |
JX-PVC11 |
|
M63 |
G2 |
NPT2 |
73 |
160 |
JX-PVC12 |
|
M88 |
G3 |
NPT2 |
108 |
120 |
JX-PVC13 |
