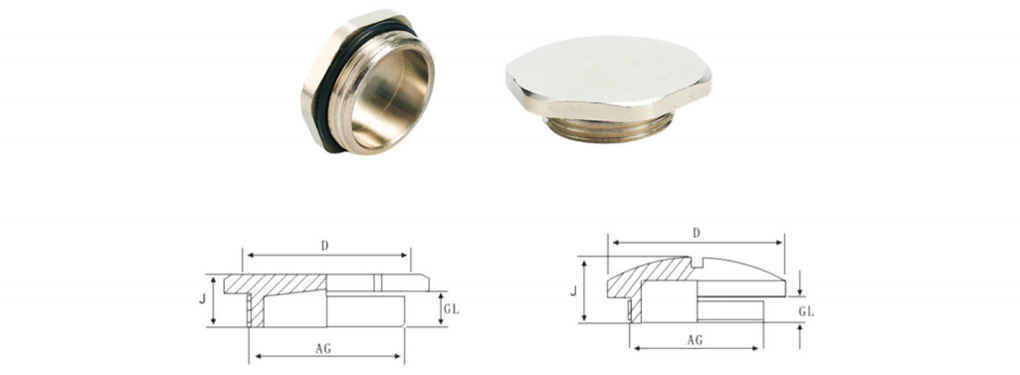

Brass Screw Plug

Circle series Code

Hexagon series Code

Thread AG

Thread Length GL(mm)

H(mm)

D(mm)

JX-PG7-HSC

JX-PG7B-SC

PG7

5

8

14

JX-PG9-HSC

JX-PG9B-SC

PG9

6

9

17

JX-PGll-HSC

JX-PG11B-SC

PGll

6

9

20

JX-PG13.5-HSC

JX-PG13.5B-SC

PG13.5

6.5

9.5

22

JX-PG16-HSC

JX-PG16B-SC

PG16

6.5

9.5

24

JX-PG21-HSC

JX-PG21B-SC

PG21

7

11

30

JX-PG29-HSC

JX-PG29B-SC

PG29

8

12

39

JX-PG36-HSC

JX-PG36B-SC

PG36

9

15

50

JX-PG42-HSC

JX-PG42B-SC

PG42

10

16

57

JX-PG48-HSC

JX-PG48B-SC

PG48

10

16

64

JX-M12-HSC

JX-M12B-SC

M12

5

8

14

JX-M16-HSC

JX-M16B-SC

M16

6

9

17

JX-M18-HSC

JX-M18B-SC

M18

6

9

20

JX-M20-HSC

JX-M20B-SC

M20

6.5

9.5

22

JX-M22-HSC

JX-M22B-SC

M22

6.5

9.5

24

JX-M24-HSC

JX-M24B-SC

M24

6.5

10

27

JX-M25-HSC

JX-M25B-SC

M25

6.5

10

27

JX-M30-HSC

JX-M30B-SC

M30

6.5

10

33

JX-M32-HSC

JX-M32B-SC

M32

7

11

35

JX-M36-HSC

JX-M36B-SC

M36

8

12

39

JX-M40-HSC

JX-M40B-SC

M40

8

13

43

JX-M47-HSC

JX-M47B-SC

M47

9

15

50

JX-M50-HSC

JX-M50B-SC

M50

9

15

55

JX-M54-HSC

JX-M54B-SC

M54

10

16

57

JX-M60-HSC

JX-M60B-SC

M60

10

16

64

JX-M63-HSC

JX-M63B-SC

M63

10

16

66

JX-M72-HSC

JX-M72B-SC

M72

10

16

75
