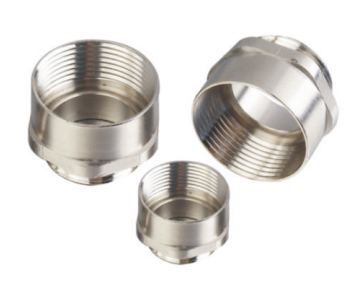

Cable Gland Adaptor

Material: Brass with nickel plated/SS304/SS316L

Ambient temperature: - 40°C- 100°C, temporary: to 120°C

Functien: Change Smaller Thread to Larger thread.

Application: It provides a means of connection between cable entry devices and equipment having dissmilar threads.

Accessories: Locknut, Sealing Washer

Circle series Code

Hexagon series

Size

Thread Length

GL(mm)

Heighr

(h)mm

Hexagon sizemm

OuterThread

Inner Thread

JX-M12/16A-EN

JX-M12/16B-EN

M12X1.5

M16X1.5

6

8.5

18

JX-M16/20A-EN

JX-M16/20B-EN

M16X1.5

M20X1.5

6.5

9

24

JX-M20/25A-EN

JX-M20/25B-EN

M20X1.5

M25X1.5

7.5

10

30

JX-M25/32A-EN

JX-M25/32B-EN

M25X1.5

M32X1.5

8

11.5

39

JX-M32/40A-EN

JX-M32/40B-EN

M32X1.5

M40X1.5

9

12.5

43

JX-M40/50A-EN

JX-M40/50B-EN

M40X1.5

M50X1.5

10

14

57

JX-M50/63A-EN

JX-M50/63B-EN

M50X1.5

M63X1.5

10

14

64

JX-PG7/9A-EN

JX-PG7/9B-EN

PG7

PG9

6

8.5

17

JX-PG9/11A-EN

JX-PG9/11B-EN

PG9

PG11

6.5

8.5

20

JX-PG11/13.5A-EN

JX-PG11/13.5B-EN

PGU

PG13.5

6.5

9

22

JX-PG13.5/16A-EN

JX-PG13.5/16B-EN

PG13.5

PG 16

6.5

9.5

24

JX-PG16/21A-EN

JX-PG16/21B-EN

PG16

PG21

7.5

10

30

JX-PG21/29A-EN

JX-PG21/29B-EN

PG21

PG29

8

11.5

39

JX-PG29/36A-EN

JX-PG29/36B-EN

PG29

PG36

9

12.5

50

JX-PG36/42A-EN

JX-PG36/42B-EN

PG36

PG42

10

14

57

JX-PG42/48A-EN

JX-PG42/48B-EN

PG42

PG48

10

14

64

JX-NPT3/8-NPT1/2A-EN

JX-NPT3/8-NPT1/2B-EN

NPT3/8 "

NPTl/2 "

6.5

9

24

JX-NPT1/2-NPT3/4A-EN

JX-NPT1/2-NPT3/4B-EN

NPT1/2 "

NPT3/4 "

7.5

10

30

JX-NPT3/4-NPT1A-EN

JX-NPT3/4-NPT1B-EN

NPT3/4 "

NPT1 "

8

11.5

39

JX-NPT1-NPT1-1/4A-EN

JX-NPT1-NPT1-1/4B-EN

NPT1 "

NPTl-l/4 "

9

12.5

50
