Waterproof Brass Cable Gland G ,NPT

Thread specification: G,NPT

Product material: The joint body parts are made of brass, the clamping part is made of nylon ( PA ), and the seals and O-ring are made of nitride rubber ( NBR ).

Certificates: CE, IP68, ISO9001, TUV.

Protection Degree: In the specific cable range, and the use of O-ring helps tighten head so that to reach IP68-10 bar.

Working Temperature:

static: -40 DEG to 100 DEG C, short time of up to 120 DEG C.

Dynamic: - 20 DEG to 80 DEG C, short time of up to 100 DEG C

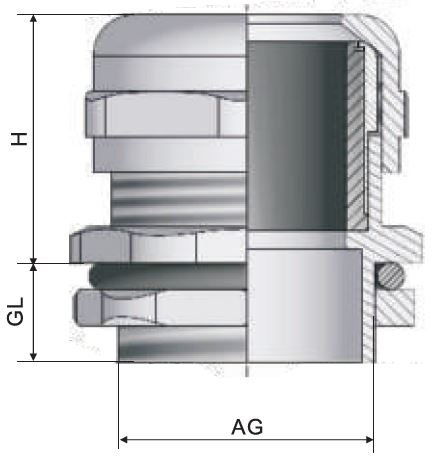

Thread Length: The short thread is suitable for holes in thin board holes or equipment with inner thread, while the long thread is available for thick plate. Threaded extension can be customized.

Features: The cable gland is the product of high tensile strength, waterproof, dustproof, salt resistance, acid and alkali, alcohol, oil and solvent resistance.

Function: Waterproof metal cable gland is the product forms a complete set of the cable, connector cable can be cable lock, the other end can access the devices through the box body, also can choose thread access according to the entry and outlet of the internal thread electric equipment.

More options: Customization is acceptable. Welcome to inquire.
