Products Description

The metal cable waterproof joint is a supporting product of the cable. The joint can lock the cable, and the other end can be connected to the equipment box, or can be connected to the electric equipment with internal thread at the inlet and outlet according to the selected thread.

Inquiry Now >>

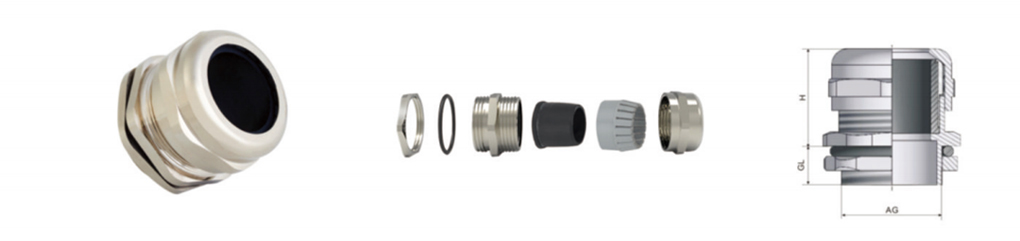

Product Description

Thread: Metric, PG,G(PF),NPT thread;

Materials: Brass with nickel plated for body,Nylon PA for plastic claw, NBR for sealing insert and O-sealing ring.

Protection degree: IP68-10 Bar;

Working temperature:-40°C to100C in static state,or instantaneous heat resistanceup to 120°C;

Features: The claws and seals of excellent design, sealing nut have a "click" soundand re-open, can hold cable firmly and have a wider cable range. Resistant tosalt water,weak acid, alcohol, oil, grease and common solvency.

Remark: Customization is available.



Metric thread type

Code

Thread AG

Cable range (mm)

Thread O.D.(mm)

Mounting hole diameter(mm)

Thread length

GL(mm)

Joint length H(mm)

Spanner size (mm)

JX-M6-NP

M6X1

3.5-1

6

6-6.2

5

11

8

JX-M8-NP

M8X1

5.5-2

8

8-8.2

5

16

12

JX-M10-NP

M10X1

6.5-3

10

10-10.2

7

19

14

JX-M12-NP

M 12X1.5

6.5-3

12

12-12.2

7

19

14

JX-M14-NP

M 14X1.5

8-4

14

14-14.2

7

19

17

JX-M16-NP

M16X1.5

8-4

16

16-16.2

8

20

18

JX-M18-NP

M18X1.5

10-5

18

18-18.2

8

21

20

JX-M20-NP

M20X1.5

12-6

20

20-20.2

8

22

22

JX-M22-NP

M 22X1.5

14-10

22

22-22.2

8

23

24

JX-M24-NP

M24X1.5

14-10

24

24-24.2

9

25

24/27

JX-M25A-NP

M 25X1.5

14-10

25

25-25.2

9

25

24/27

JX-M25B-NP

M25X1.5

16-8

25

25-25.2

9

27

27

JX-M25C-NP

M25X1.5

18-13

25

25-25.2

9

27

30/27

JX-M27A-NP

M27X1.5

18-13

27

27-27.2

9

27

30

JX-M27B-NP

M27X2

18-13

27

27-27.2

9

27

30

JX-M28A-NP

M28X1.5

18-13

28

28-28.2

9

27

30

JX-M28B-NP

M28X2

18-13

28

28-28.2

9

27

30

JX-M30A-NP

M30X1.5

18-13

30

30-30.2

9

29

30/32

JX-M30B-NP

M30X2

18-13

30

30-30.2

9

29

30/32

JX-M32A-NP

M32X1.5

22-15

32

32-32.2

10

29

35

JX-M32B-NP

M32X1.5

20-16

32

32-32.2

10

29

35

JX-M32B-NP

M32X1.5

20-16

32

32-32.2

10

29

35

JX-M32C-NP

M32X2

22-15

32

32-32.2

10

29

35

JX-M33A-NP

M33X1.5

22-15

33

33-33.2

10

29

35

JX-M33B-NP

M33X2

22-15

33

33-33.2

10

29

35

JX-M36A-NP

M36X1.5

25-18

36

36-36.2

10

31

40

JX-M36B-NP

M36X2

25-18

36

36-36.2

10

31

40

JX-M37A-NP

M37X1.5

25-18

37

37-37.2

10

31

40

JX-M37B-NP

M37X2

25-18

37

37-37.2

10

31

40

JX-M40A-NP

M40X1.5

25-18

40

40-40.2

11

31

40/45

JX-M40B-NP

M40X2

25-18

40

40-40.2

11

31

40/45

JX-M40C-NP

M40X1.5

30-22

40

40-40.2

11

35

45

JX-M40D-NP

M40X2

30-22

40

40-40.2

11

35

45

JX-M42A-NP

M42X1.5

30-22

42

42-42.2

11

35

45

JX-M42B-NP

M42X2

30-22

42

42-42.2

11

35

45

JX-M47A-NP

M47X1.5

33-25

47

47-47.2

11

37

50

JX-M47B-NP

M47X2

33-25

47

47-47.2

11

37

50

JX-M48A-NP

M48X1.5

33-25

48

48-48.2

11

37

50/52

JX-M48B-NP

M48X2

33-25

48

48-48.2

11

37

50/52

Code

Thread AG

Cable range (mm)

Thread O.D.(mm)

Mounting hole diameter(mm)

Thread length GL(mm)

Joint length H(mm)

Spanner size (mm)

JX-M50A-NP

M50X1.5

38-32

50

50-50.2

12

37

57/55

JX-M50B-NP

M50X2

38-32

50

50-50.2

12

37

57/55

JX-M54A-NP

M54X1.5

38-32

54

54-54.2

12

38

57

JX-M54B-NP

M54X2

38-32

54

54-54.2

12

38

57

JX-M56A-NP

M56X1.5

38-32

56

56-56.2

12

38

57/59

JX-M56B-NP

M56X2

38-32

56

56-56.2

12

38

57/59

JX-M60A-NP

M60X1.5

44-37

60

60-60.2

13

38

64

JX-M60B-NP

M60X2

44-37

60

60-60.2

13

38

64

JX-M63A-NP

M63X1.5

44-37

63

63-63.2

13

38

64/68

JX-M63B-NP

M63X2

44-37

63

63-63.2

13

38

64/68

JX-M64A-NP

M64X1.5

44-37

64

64-64.2

13

38

64/68

JX-M64B-NP

M64X2

44-37

64

64-64.2

13

38

64/68

JX-M72-NP

M72X2

52-42

72

72-72.2

15

42

78

JX-M75-NP

M75X2

55-45

75

75-75.2

15

42

78

JX-M80-NP

M80X2

62-50

80

80-80.2

18

46

86/88

JX-M88-NP

M88X2

70-60

88

88-88.2

18

46

98

JX-M100-NP

M100X2

80-70

100

100-100.2

20

50

no

JX-M110-NP

M110X2

90-80

110

110-110.2

20

57

120

JX-M120-NP

M120X2

102-90

120

120-120.2

20

57

135

JX-M125-NP

M125X2

108-98

125

125-125.2

24

65

135

JX-M150-NP

M150X2

125-110

150

150-150.5

25

70

160



Small thread with large range series

Code

Thread AG

Cable range (mm)

Thread O.D.(mm)

Mounting hole diameter(mm)

Thread length GL(mm)

Joint length H(mm)

Spanner size (mm)

JX-M12-NP

M12X1.5

8-4

12

12-12.2

7

19

17

JX-M14-NP

M14X1.5

10-5

14

14-14.2

8

21

20

JX-M16-NP

M16X1.5

10-5

16

16-16.2

8

21

20

JX-M20-NP

M20X1.5

14-10

20

20-20.2

8

23

24

JX-M20-NP

M20X1.5

16-9

20

20-20.2

9

27

27

JX-M25-NP

M25X1.5

22-15

25

25-25.2

9

29

35

JX-M32-NP

M32X1.5

25-18

32

32-32.2

10

31

40/35

JX-M40-NP

M40X1.5

33-25

40

40-40.2

10

36

50/45

JX-M50-NP

M50X1.5

44-37

50

50-50.2

12

37

64/55

JX-M63-NP

M63X1.5

52-42

63

63-63.2

13

41

78/68

JX-M72-NP

M72X1.5

62-50

72

72-72.2

15

45

86/78

JX-M80-NP

M80X1.5

70-60

80

80-80.2

18

46

98/86

JX-M88-NP

M88X1.5

80-70

88

88-88.2

18

46

110/98



PG thread type

Code

Thread AG

Cable range (mm)

Thread O.D.(mm)

Mounting hole diameter(mm)

Thread length GL(mm)

Joint length H(mm)

Spanner size (mm)

JX-PG7-NP

PG7

6.5-3

12.5

12.5-12.7

7

19

14

JX-PG9-NP

PG9

8-4

15.2

15.2-15.4

8

20

18

JX-PG11-NP

PG11

10-5

18.6

18.6-18.8

8

21

20/21

JX-PG13.5-NP

PG13.5

12-6

20.4

20.4-20.6

8

22

22

JX-PG16-NP

PG 16

14-10

22.5

22.5-22.7

9

23

24

JX-PG19A-NP

PG19

14-10

25

25-25.2

9

25

24/27

JX-PG19B-NP

PG 19

16-8

25

25-25.2

9

25

27

JX-PG21A-NP

PG21

18-13

28.3

28.3-28.5

9

27

30/32

JX-PG21B-NP

PG21

16-9

28.3

28.3-28.5

9

27

30/32

JX-PG25-NP

PG25

22-15

32

32-32.2

10

29

35

JX-PG29-NP

PG29

22-18

37

37-37.2

11

31

40

JX-PG36-NP

PG36

33-25

47

47-47.2

12

37

50

JX-PG42-NP

PG42

38-32

54

54-54.2

13

38

57

JX-PG48-NP

PG48

44-37

59.3

59.3-59.5

14

38

64

JX-PG63-NP

PG63

52-42

72

72-72.2

15

42

78



G,NPT thread type

Code

Thread AG

Cable range (mm)

Thread O.D.(mm)

Thread no. Per inch

Thread length GL(mm)

Joint length H(mm)

Spanner size (mm)

JX-G1/4-NP

Gl/4

6.5-3

13.1

19

7

19

14

JX-G3/8-NP

G3/8

8-4

16.6

19

8

19

18

JX-G1/2-NP

Gl/2

12-6

20.9

14

8

22

22

JX-G3/4-NP

G3/4

18-13

26.4

14

9

25

30

JX-G1-NP

G1

25-18

33.2

11

11

29

40

JX-G1-1/4-NP

G1-1/4

33-25

41.9

11

13

35

50

JX-G1-1/2-NP

G1-1/2

38-32

47.8

11

14

37

57

JX-G2-NP

G2

44-37

59.6

11

14

38

64

JX-G2-1/2-NP

G2-1/2

52-42

75.1

11

15

38

78

JX-G3-NP

G3

70-65

87.8

11

15

48

98

JX-NPT1/4-NP

NPTl/4

6.5-3

13.6

18

7

19

14

JX-NPT3/8-NP

NPT3/8

8-4

17

18

8

19

18

JX-NPT1/2-NP

NPT1/2

12-6

21.2

14

8

22

22

JX-NPT3/4-NP

NPT3/4

18-13

26.5

14

9

25

30

JX-NPT1-NP

NPT1

25-18

33.2

11.5

11

29

40

JX-NPT1-1/4-NP

NPTl-l/4

33-25

41.9

11.5

13

35

50

JX-NPT1-1/2-NP

NPT1-1/2

38-32

48

11.5

14

37

57

JX-NPT2-NP

NPT2

44-37

60

11.5

14

38

64

JX-NPT2-1/2-NP

NPT2-1/2

52-42

72.6

8

15

38

78

JX-NPT3-NP

NPT3

70-65

88.6

8

15

45

98
