RUWaterproof&Dustproof
Special designs for clamplng jaw andsealants fitted with the sealing nut can saveboth time and energy.
Connectors are mainly for SPR-AS Or FEXAgraff-AS conduitsuswpConnectors are mainly for SOR-PVC-AS, SPR-PU-AS, FLEXAgraff-PU-AS metal conduits.
|
Item Name
|

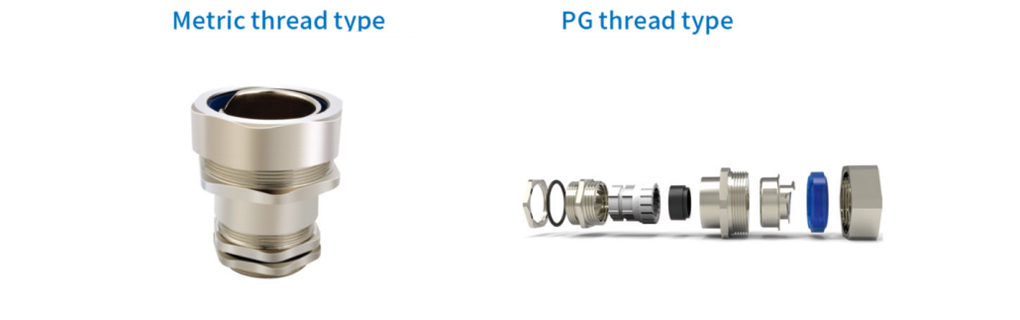

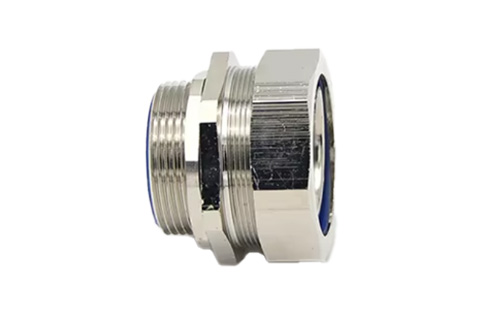

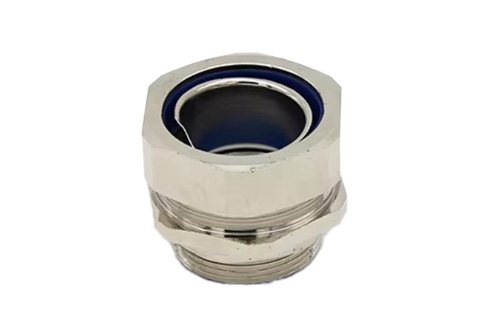

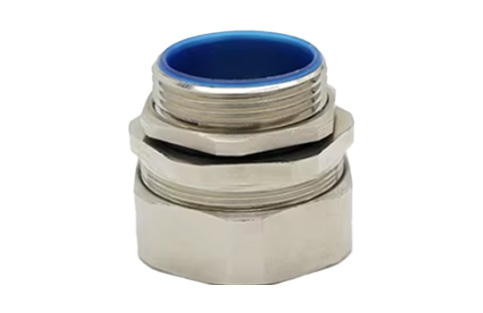

Brass Hose Connector MH Series |
|
Matetrial
|
External Metal : Nickel Plated Brass
Seal: NBR, PA6
Ferrule: Brass
Sealing Ring:
thermoplastic elastomer or PTEE
|
|
Approvals
|
IP65, ISO9000,CE
|
|
Working Temperature
|
Static : -40°C ~ 100°C, temporary to 120°C
Dynamic: -20°C ~ 80°C, temporary to 100°C
|
Inquiry Now >>
Material: external metal: nicke-plated brass;
Seal: NBR, PA6; Ferrule: brass
Sealing ring: thermoplastic elastomer or PTEE
Protection degree: IP65
Temeperature Range: Static:- 40°℃ to100°℃, Short time to 120℃
|
NO. |
(mm) Thread |
Card pin range |
(mm) Thread length |
(mm) Spanner size |
(mm) Fits to tubing size (Nominalinner)mm |
|
JX-M12-MH |
M 12X1.5 |
3-6.5 |
7 |
20 |
Φ6 |
|
JX-M16-MH |
M16X1.5 |
4-8 |
8 |
22 |
Φ8 |
|
JX-M18-MH |
M 18X1.5 |
5-10 |
8 |
24 |
Φ10 |
|
JX-M20-MH |
M20X1.5 |
6-12 |
8 |
26 |
Φ12 |
|
JX-M22-MH |
M20X1.5 |
10-14 |
8 |
30 |
Φ15 |
|
JX-M24-MH |
M24X1.5 |
10-14 |
9 |
30 |
Φ15 |
|
JX-M25-MH |
M 25X1.5 |
10-16 |
9 |
30 |
Φ15 |
|
JX-M27-MH |
M27X2.0 |
13-18 |
9 |
36 |
Φ20 |
|
JX-M30-MH |
M30X2.0 |
13-18 |
9 |
36 |
Φ20 |
|
JX-M32-MH |
M32X1.5 |
15-22 |
10 |
36 |
Φ20 |
|
JX-M36-MH |
M36X2.0 |
18-25 |
10 |
43 |
Φ25 |
|
JX-M40-MH |
M40X1.5 |
22-30 |
11 |
52 |
Φ32 |
|
JX-M48-MH |
M48X2.0 |
25-32 |
11 |
55 |
Φ32 |
|
JX-M50-MH |
M50X1.5 |
32-38 |
12 |
60 |
Φ38 |
|
JX-M56-MH |
M56X2.0 |
32-38 |
12 |
60 |
Φ38 |
|
NO. |
(mm) Thread |
Card pin range |
(mm) Thread length |
(mm) Spanner size |
(mm) Fits to tubing size (Nominal inner)mm |
|
JX-PG7-MH |
PG7 |
3-6.5 |
7 |
20 |
Φ6 |
|
JX-PG9-MH |
PG9 |
4-8 |
8 |
22 |
Φ8 |
|
JX-PG11-MH |
PG11 |
5-10 |
8 |
24 |
Φ10 |
|
JX-PG13.5-MH |
PG13.5 |
6-12 |
8 |
26 |
Φ12 |
|
JX-PG16-MH |
PG16 |
8-16 |
8 |
30 |
Φ15 |
|
JX-PG21-MH |
PG21 |
13-18 |
9 |
36 |
Φ20 |
|
JX-PG29-MH |
PG29 |
18-25 |
11 |
43 |
Φ25 |
|
JX-PG36-MH |
PG36 |
25-32 |
12 |
52 |
Φ32 |
|
JX-PG42-MH |
PG42 |
32-38 |
13 |
60 |
Φ38 |
|
JX-PG48-MH |
PG48 |
37-44 |
14 |
60 |
Φ38 |
Special designs for clamplng jaw andsealants fitted with the sealing nut can saveboth time and energy.
Statlc :-40℃-120'C instantanepislycan reach 120℃Dynamic :-20℃-100'C instantanepislycan reach 100℃c
Good thermoplasticity and flexility,light chemical corrosion resistant
