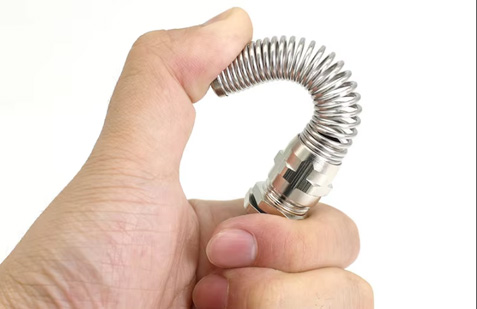

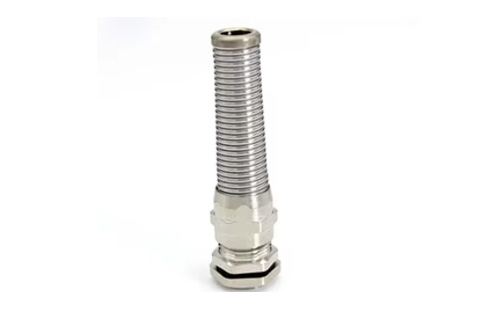

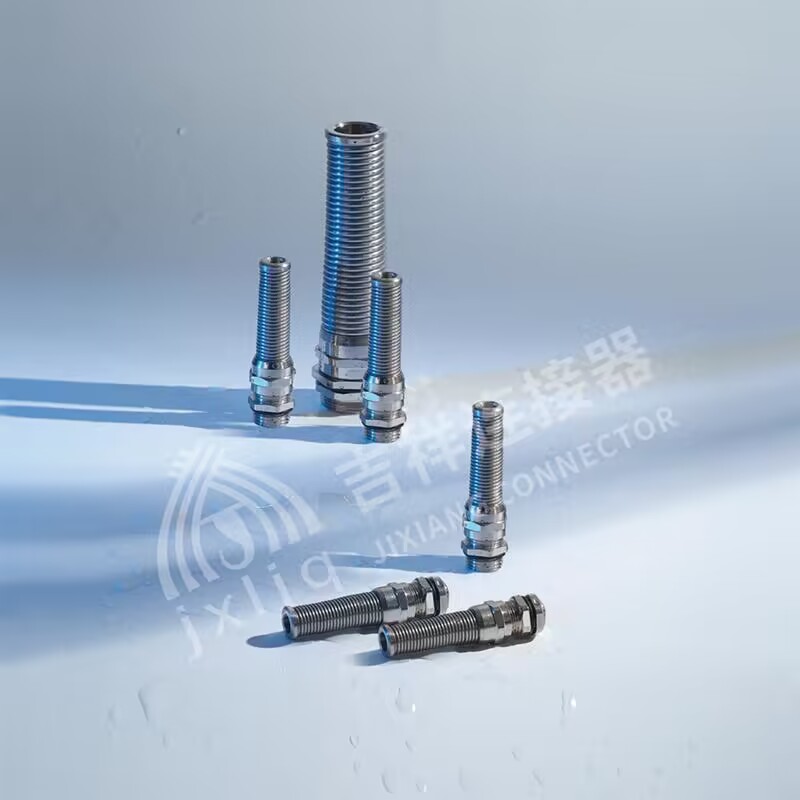

The metal cable waterproof joint is a supporting product of the cable. The joint can lock the cable, and the other end can be connected to the equipment box, or can be connected to the electric equipment with internal thread at the inlet and outlet according to the selected thread.
| Test Report | CE, RoHS, IP68, TUV, ISO9001 |
| Gland thread | Metric /PG |
| Gland Temperature | -40 to 100 degree Celsius |
Inquiry Now >>
1.Can be used in flexible metallic conduit or liquid tight conduit in Power plant,Power transmission system, communication system, building factory, railway,train, transportation system project, air conditioner, various machines, automates controlling plant.And protecting the electrical wire or cable outside the construction and plant.
2.Positively bond the conduit to a box or enclosure

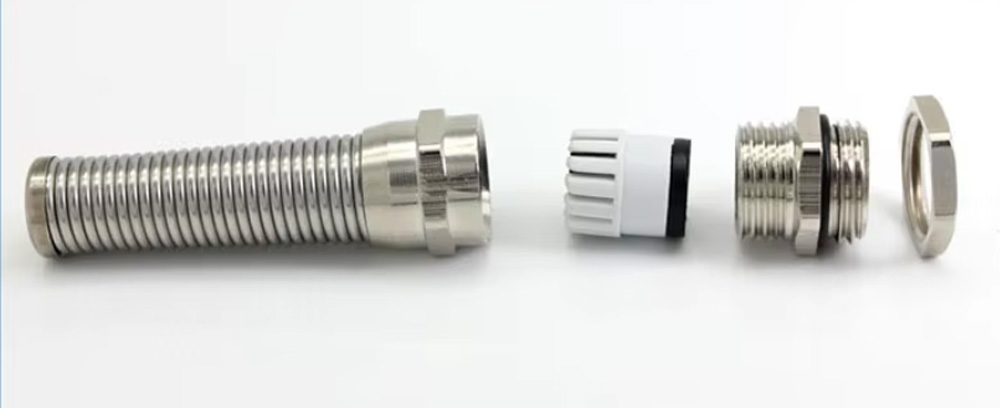

Material: Brass with nickel plated
Protection rating: IP67
Furnished with insulating liner

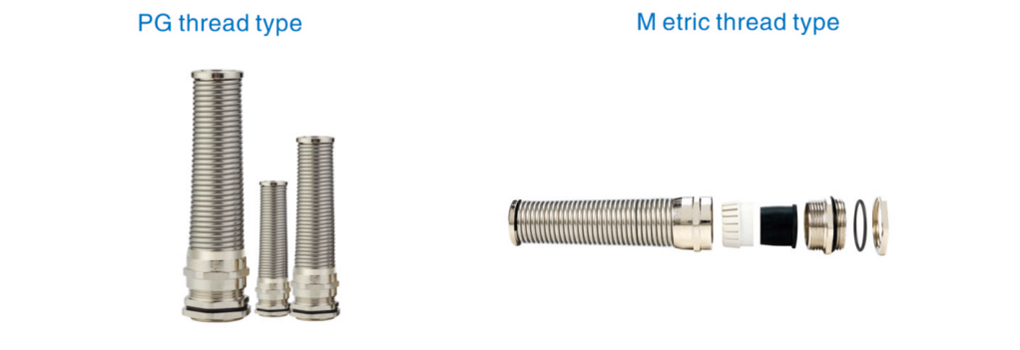

PG Thread and G thread can also be produced
|

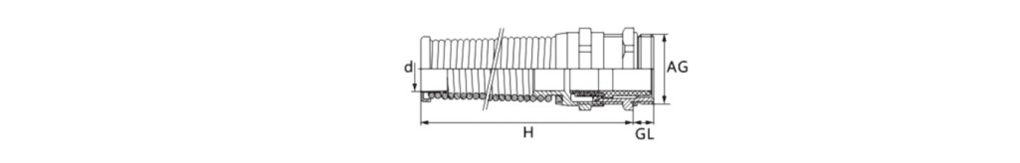

AG Thread |
Cable Range mm |
Thread Length mm |
Body Height mm |
Spanner Size mm |
Thread O.D mm |
Panel Mounting Hole mm |
|
JX-PG7-FL |
3-6.5 |
8 |
53 |
14 |
12.5 |
12.5-12.8 |
|
JX-PG9-FL |
4-8 |
8.2 |
66 |
17 |
15.2 |
15.2-15.5 |
|
JX-PG11-FL |
5-10 |
8.6 |
77 |
20 |
18.6 |
18.6-18.9 |
|
JX-PG13.5-FL |
6.7-12 |
9 |
88 |
22 |
20.4 |
20.4-20.7 |
|
JX-PG16A-FL |
10.2-14 |
10 |
98 |
24 |
22.5 |
22.5-22.8 |
|
JX-PG16B-FL |
6-12 |
10 |
98 |
24 |
22.5 |
22.5-22.8 |
|
JX-PG21A-FL |
13-18 |
10 |
111 |
30 |
28.3 |
28.3-28.6 |
|
JX-PG21B-FL |
9-16 |
10 |
111 |
30 |
28.3 |
28.3-28.6 |
|
AG Thread |
Cable Range mm |
Thread Length mm |
Body Height mm |
Spanner Size mm |
Thread O.D mm |
Panel Mounting Hole mm |
|
JX-M12-FL |
3-6.5 |
8 |
53 |
14 |
12 |
12-12.3 |
|
JX-M16-FL |
4-8 |
8.2 |
66 |
17 |
16 |
16-16.3 |
|
JX-M20-FL |
6.7-12 |
9 |
88 |
22 |
20 |
20-20.3 |
|
JX-M22-FL |
10-14 |
8 |
90 |
24 |
22 |
22-22.3 |
|
JX-M25A-FL |
13-18 |
10 |
111 |
30 |
25 |
25-25.3 |
|
JX-M25B-FL |
9-16 |
10 |
111 |
30 |
25 |
25-25.3 |
|
JX-M32-FL |
15-22 |
11 |
120 |
35 |
32 |
32-32.5 |
