The metal cable waterproof joint is a supporting product of the cable. The joint can lock the cable, and the other end can be connected to the equipment box, or can be connected to the electric equipment with internal thread at the inlet and outlet according to the selected thread.
|
Material |
Brass with nickel plated |
|
Clamp Jaw |
Nylon PA |
|
Sealing element |
NBR |
|
Thread Type |
PG according to DIN 40430 |
|
Test standard |
EN50262/EN62444 |
|
Range of temperature |
-40℃-+100℃ |
Inquiry Now >>
Material: Brass with nickel platedClaw: Nylon PA
Sealing : NBR
Thread Type: Metric/PG
Test Standard: EN50262/EN62444
Protection class: IP68 (the wire/cable is in clamping range, and assemble O-Ring on the groove)
Range of temperature:-40°℃ to + 100℃
Application: Suitable for all sealing, fixed, non-slip, the occasion of high temper-ature requirements.
Remark: If you need other materials of sealing element. such asSilicone, EPDM, etc.Pls feel free to contact us!
|

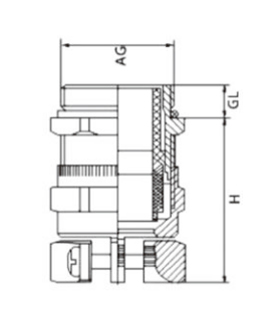

AG Thread |
Cable Range mm |
Thread Length mm |
Body Height mm |
SpannerSize mm |
Thread O.D mm |
Panel Mounting Hole mm |
 |
|
JX-PG7-DL |
3-6.5 |
5 |
25 |
14 |
12.5 |
12.5-12.8 |
|
|
JX-PG9-DL |
4-8 |
6 |
27 |
17 |
15.2 |
15.2-15.5 |
|
|
JX-PG11-DL |
5-10 |
6 |
29 |
20 |
18.6 |
18.6-18.9 |
|
|
JX-PG13.5-DL |
6-12 |
6.5 |
31 |
22 |
20.4 |
20.4-20.7 |
|
|
JX-PG16-DL |
10-14 |
6.5 |
31 |
24 |
22.5 |
22.5-22.8 |
|
|
JX-PG21-DL |
13-18 |
7 |
37 |
30 |
28.3 |
28.3-28.6 |
|
|
JX-PG29-DL |
18-25 |
8 |
42 |
40 |
37 |
37-37.3 |
|
|
JX-PG36-DL |
22-32 |
8 |
48 |
50 |
47 |
47-47.3 |
|
|
JX-PG42-DL |
32-38 |
9 |
50 |
57 |
54 |
54-54.3 |
|
|
JX-PG48-DL |
37-44 |
10 |
51 |
64 |
59.3 |
59.3-59.6 |
| AG Thread |
Cable Range mm |
,Thread Length mm |
Body Height mm |
SpannerSize mm |
Thread O.D mm |
Panel Mounting Hole mm |
 |
|
JX-M12A-DL |
3-6.5 |
5 |
25 |
14 |
12 |
12-12.3 |
|
|
JX-M12B-DL |
4-8 |
6 |
27 |
17 |
12 |
12-12.3 |
|
|
JX-M14-DL |
4-8 |
6 |
27 |
17 |
14 |
14-14.3 |
|
|
JX-M16A-DL |
4-8 |
6 |
27 |
17 |
16 |
16-16.3 |
|
|
JX-M16B-DL |
5-10 |
6 |
29 |
20 |
16 |
16-16.3 |
|
|
JX-M18-DL |
5-10 |
6 |
29 |
20 |
18 |
18-18.3 |
|
|
JX-M20A-DL |
6-12 |
6.5 |
31 |
22 |
20 |
20-20.3 |
|
|
JX-M20B-DL |
10-14 |
6.5 |
31 |
24 |
20 |
20-20.3 |
|
|
JX-M22-DL |
10-14 |
6.5 |
31 |
24 |
22 |
22-22.3 |
|
|
JX-M24-DL |
10-14 |
6.5 |
31 |
24/27 |
24 |
24-24.3 |
|
|
JX-M25-DL |
13-18 |
7 |
37 |
30 |
25 |
25-25.3 |
|
|
JX-M27-DL |
13-18 |
7 |
37 |
30 |
27 |
27-27.3 |
|
|
JX-M28-DL |
13-18 |
7 |
37 |
30 |
28 |
28-28.3 |
|
|
JX-M30-DL |
13-18 |
8 |
37 |
30/32 |
30 |
30-30.3 |
|
|
JX-M32-DL |
18-25 |
8 |
42 |
40 |
32 |
32-32.3 |
|
|
JX-M33-DL |
18-25 |
8 |
42 |
40 |
33 |
33-33.3 |
|
|
JX-M36-DL |
18-25 |
8 |
42 |
40 |
36 |
36-36.3 |
|
|
JX-M37-DL |
18-25 |
8 |
42 |
40 |
37 |
37-37.3 |
|
|
JX-M40-DL |
22-32 |
8 |
48 |
50 |
40 |
40-40.3 |
|
|
JX-M42-DL |
22-32 |
8 |
48 |
50 |
42 |
42-42.3 |
|
|
JX-M47-DL |
22-32 |
8 |
48 |
50 |
47 |
47-47.3 |
|
|
JX-M48-DL |
22-32 |
8 |
48 |
50/52 |
48 |
48-48.3 |
|
|
JX-M50-DL |
32-38 |
9 |
50 |
57 |
50 |
50-50.3 |
|
|
JX-M54-DL |
32-38 |
9 |
50 |
57 |
54 |
54-54.3 |
|
|
JX-M56-DL |
32-38 |
9 |
50 |
57/59 |
56 |
56-56.3 |
|
|
JX-M60-DL |
37-44 |
10 |
51 |
64 |
60 |
60-60.3 |
|
|
JX-M63-DL |
37-44 |
10 |
51 |
64/68 |
63 |
63-63.3 |
|
|
JX-M64-DL |
37-44 |
10 |
51 |
64 |
64 |
64-64.3 |
