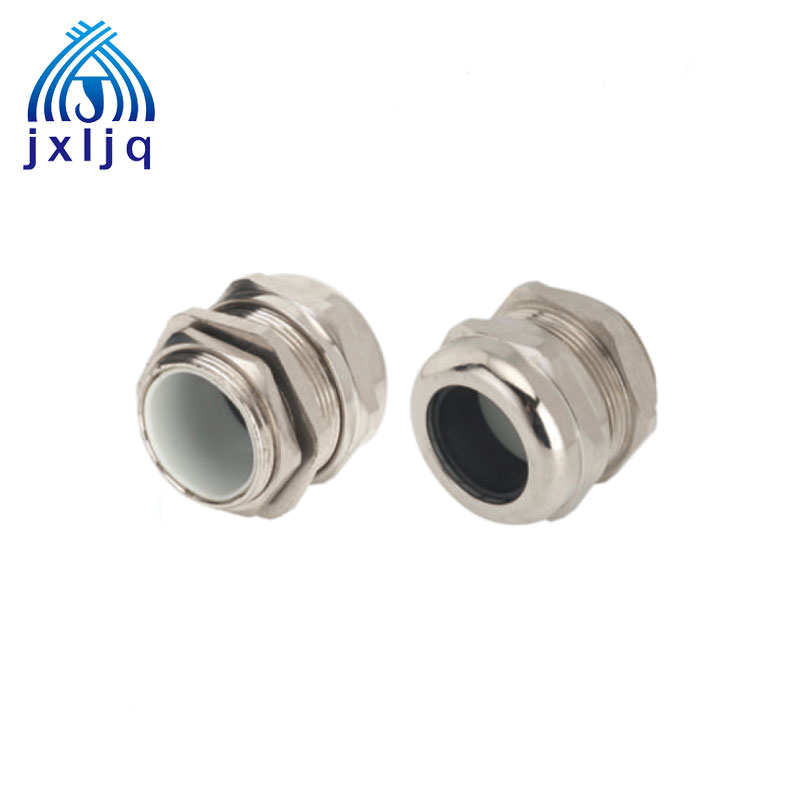

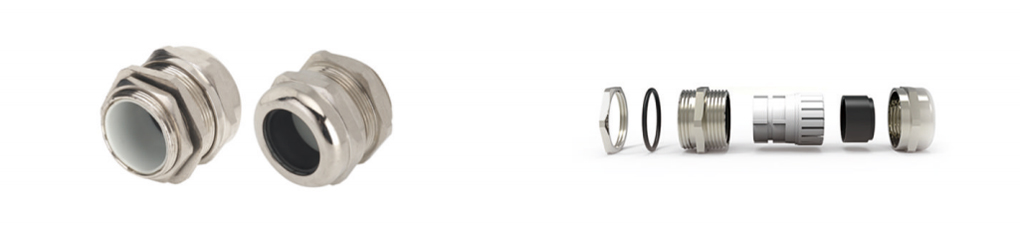

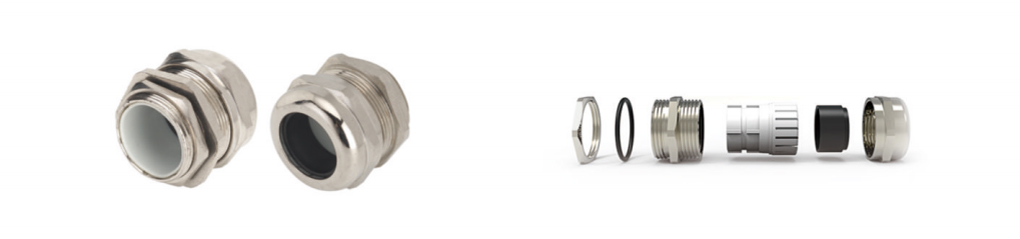

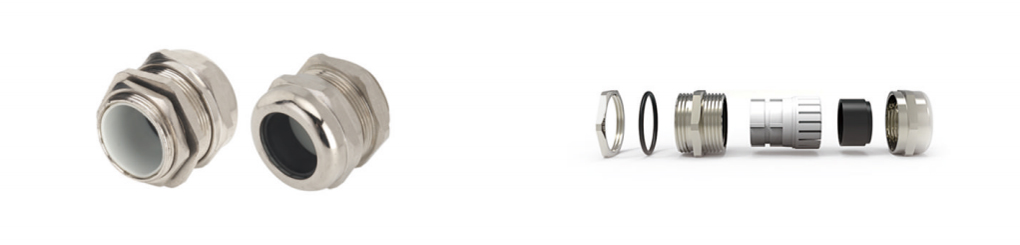

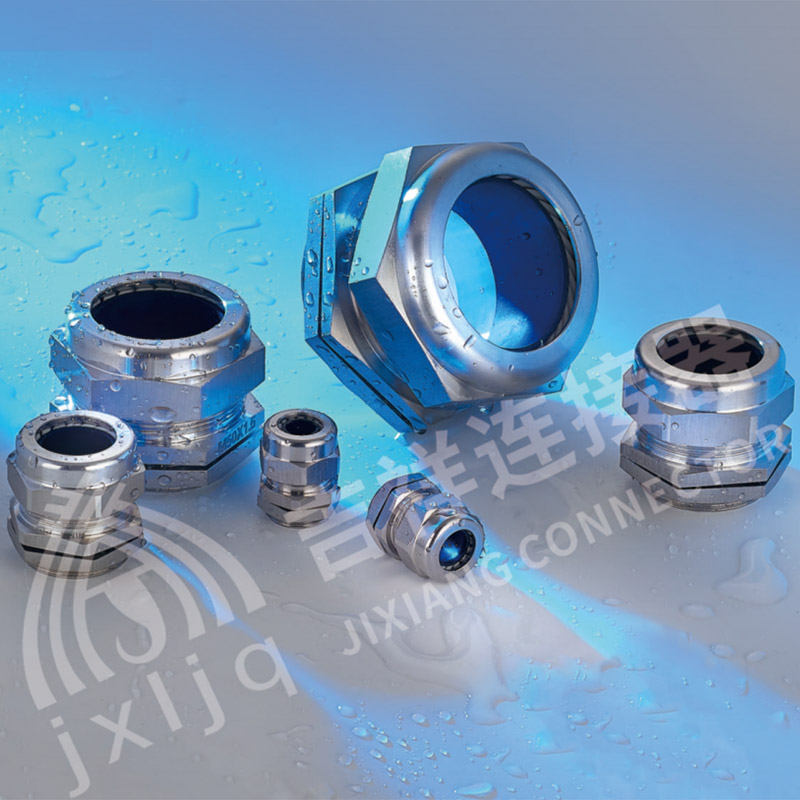

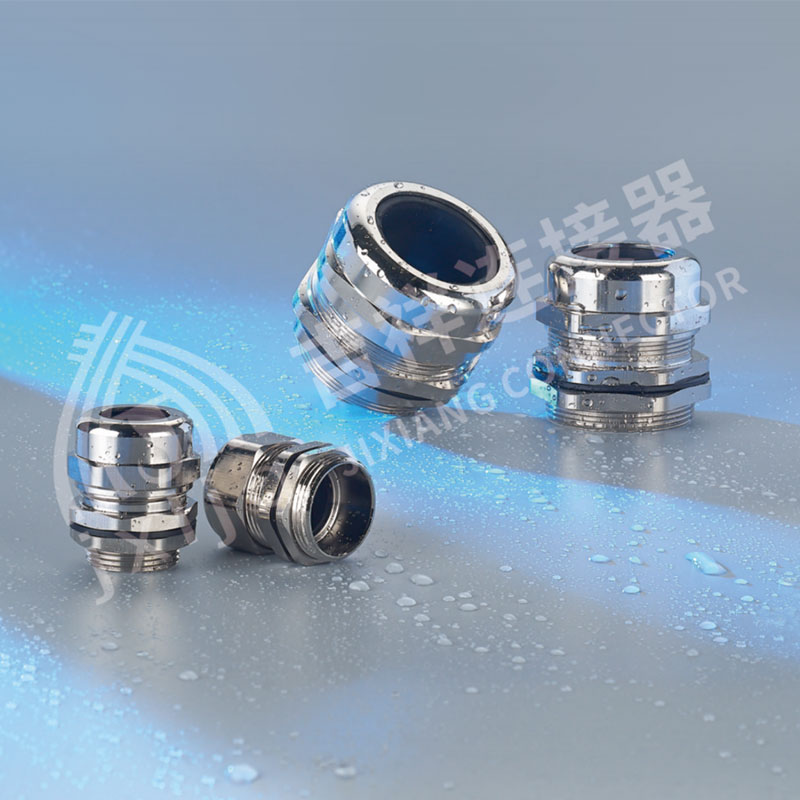

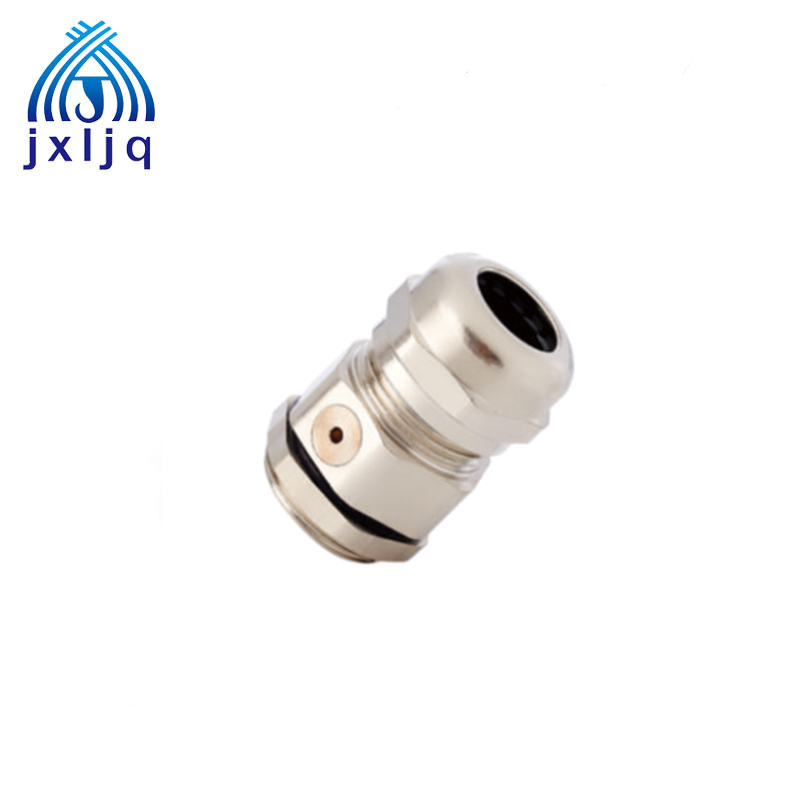

The metal cable waterproof joint is a supporting product of the cable. The joint can lock the cable, and the other end can be connected to the equipment box, or can be connected to the electric equipment with internal thread at the inlet and outlet according to the selected thread.
Inquiry Now >>
Material: Brass, nickel plated
Claw: PA
Sealing and sealing ring: NBR
Approvals: IP68.ISO9001、TUV
Protection degree: lP68
Temperature Resistance: -40℃ to 10o"C,short time to 120°℃.
Thread length: Standard Thread type is used for the equipment which has innerThread or for the thin board.Longer Thread type is used for the thick board.
Function: Easy installation, simply insert cable through the assembled gland andtighten gland locknut until cable is secured.These cable glands are designed to withstand water, dust, salt, acid-base, alcohol, oil and commonsolvent.
Metric thread type
|
Code |
Thread AG |
Cable range (mm) |
Thread O.D.(mm) |
Mounting hole diameter(mm) |
Thread length GL(mm) |
Joint length H(mm) |
Spanner size (mm) |
|
JX-M12-TR |
M 12X1.5 |
6.5-3 |
12 |
12-12.2 |
7 |
19 |
14 |
|
JX-M14-TR |
MMX 1.5 |
8-4 |
14 |
14-14.2 |
7 |
19 |
17 |
|
JX-M16-TR |
M16X1.5 |
8-4 |
16 |
16-16.2 |
8 |
20 |
18 |
|
JX-M18-TR |
M18X1.5 |
10-5 |
18 |
18-18.2 |
8 |
21 |
20 |
|
JX-M20-TR |
M20X1.5 |
12-6 |
20 |
20-20.2 |
8 |
22 |
22 |
|
JX-M22-TR |
M22X1.5 |
14-10 |
22 |
22-22.2 |
8 |
23 |
24 |
|
JX-M24-TR |
M24X1.5 |
14-10 |
24 |
24-24.2 |
9 |
25 |
24/27 |
|
JX-M25A-TR |
M25X1.5 |
14-10 |
25 |
25-25.2 |
9 |
25 |
24/27 |
|
JX-M25B-TR |
M25X1.5 |
16-8 |
25 |
25-25.2 |
9 |
27 |
27 |
|
JX-M25C-TR |
M25X1.5 |
18-13 |
25 |
25-25.2 |
9 |
27 |
30/27 |
|
JX-M27A-TR |
M27X1.5 |
18-13 |
27 |
27-27.2 |
9 |
27 |
30 |
|
JX-M27B-TR |
M27X2 |
18-13 |
27 |
27-27.2 |
9 |
27 |
30 |
|
JX-M28A-TR |
M28X1.5 |
18-13 |
28 |
28-28.2 |
9 |
27 |
30 |
|
JX-M28B-TR |
M28X2 |
18-13 |
28 |
28-28.2 |
9 |
27 |
30 |
|
JX-M30A-TR |
M30X1.5 |
18-13 |
30 |
30-30.2 |
9 |
29 |
30/32 |
|
JX-M30B-TR |
M30X2 |
18-13 |
30 |
30-30.2 |
9 |
29 |
30/32 |
|
JX-M32A-TR |
M32X1.5 |
22-15 |
32 |
32-32.2 |
10 |
29 |
35 |
|
JX-M32B-TR |
M32X1.5 |
20-16 |
32 |
32-32.2 |
10 |
29 |
35 |
|
JX-M32C-TR |
M32X2 |
22-15 |
32 |
32-32.2 |
10 |
29 |
35 |
Metric thread type
|
Code |
Thread AG |
Cable range (mm) |
Thread O.D.(mm) |
Mounting hole diameter(mm) |
Thread length GL(mm) |
Joint length H(mm) |
Spanner size (mm) |
|
JX-M36A-TR |
M36X1.5 |
25-18 |
36 |
36-36.2 |
10 |
31 |
40 |
|
JX-M36B-TR |
M36X2 |
25-18 |
36 |
36-36.2 |
10 |
31 |
40 |
|
JX-M37A-TR |
M37X1.5 |
25-18 |
37 |
37-37.2 |
10 |
31 |
40 |
|
JX-M37B-TR |
M37X2 |
25-18 |
37 |
37-37.2 |
10 |
31 |
40 |
|
JX-M40A-TR |
M40X1.5 |
25-18 |
40 |
40-40.2 |
11 |
31 |
40/45 |
|
JX-M40B-TR |
M40X2 |
25-18 |
40 |
40-40.2 |
11 |
31 |
40/45 |
|
JX-M40C-TR |
M40X1.5 |
30-22 |
40 |
40-40.2 |
11 |
35 |
45 |
|
JX-M40D-TR |
M40X2 |
30-22 |
40 |
40-40.2 |
11 |
35 |
45 |
|
JX-M42A-TR |
M42X1.5 |
30-22 |
42 |
42-42.2 |
11 |
35 |
45 |
|
JX-M42B-TR |
M42X2 |
30-22 |
42 |
42-42.2 |
11 |
35 |
45 |
|
JX-M60A-TR |
M60X1.5 |
44-37 |
60 |
60-60.2 |
13 |
38 |
64 |
|
JX-M60B-TR |
M60X2 |
44-37 |
60 |
60-60.2 |
13 |
38 |
64 |
|
JX-M63A-TR |
M63X1.5 |
44-37 |
63 |
63-63.2 |
13 |
38 |
64/68 |
|
JX-M63B-TR |
M63X2 |
44-37 |
63 |
63-63.2 |
13 |
38 |
64/68 |
|
JX-M64A-TR |
M64X1.5 |
44-37 |
64 |
64-64.2 |
13 |
38 |
64/68 |
|
JX-M64B-TR |
M64X2 |
44-37 |
64 |
64-64.2 |
13 |
38 |
64/68 |
|
JX-M72-TR |
M72X2 |
52-42 |
72 |
72-72.2 |
15 |
42 |
78 |
|
JX-M75-TR |
M75X2 |
52-42 |
75 |
75-75.2 |
15 |
42 |
78 |
|
JX-M80-TR |
M80X2 |
62-50 |
80 |
80-80.2 |
15 |
45 |
86/88 |
|
JX-M88-TR |
M88X2 |
70-60 |
88 |
88-88.2 |
15 |
45 |
98 |
|
JX-M100-TR |
M100X2 |
80-70 |
100 |
100-100.2 |
15 |
45 |
110 |
PG thread type
|
Code |
Thread AG |
Cable range (mm) |
Thread O.D.(mm) |
Mounting hole diameter(mm) |
Thread length GL(mm) |
Joint length H(mm) |
|
JX-PG7-TR |
PG7 |
6.5-3 |
12.5 |
12.5-12.7 |
7 |
14 |
|
JX-PG9-TR |
PG9 |
8-4 |
15.2 |
15.2-15.4 |
8 |
17 |
|
Jx-PG11-TR |
PG11 |
10-5 |
18.6 |
18.6-18.8 |
8 |
20/21 |
|
JX-PG13.5-TR |
PG13.5 |
12-6 |
20.4 |
20.4-20.6 |
8 |
22 |
|
JX-PG16-TR |
PG16 |
14-10 |
22.5 |
22.5-22.7 |
9 |
24 |
|
JX-PG21-TR |
PG21 |
18-13 |
28.3 |
28.3-28.5 |
9 |
30 |
|
JX-PG25-TR |
PG25 |
22-15 |
32 |
32-32.2 |
10 |
35 |
|
JX-PG29-TR |
PG29 |
25-18 |
37 |
37-37.2 |
11 |
40 |
|
JX-PG36-TR |
PG36 |
33-25 |
47 |
47-47.2 |
12 |
50 |
|
JX-PG42-TR |
PG42 |
38-32 |
54 |
54-54.2 |
13 |
57 |
|
JX-PG48-TR |
PG48 |
44-37 |
59.3 |
59.3-59.5 |
14 |
64 |
|
JX-PG63-TR |
PG63 |
52-42 |
72 |
72-72.2 |
15 |
78 |
