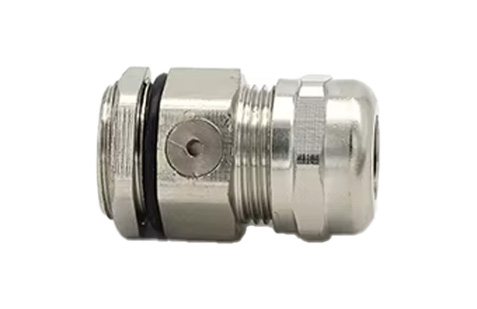

Waterproof&Dustproof
Special designs for clamplng jaw andsealants fitted with the sealing nut can saveboth time and energy.
Brass breathable cable gland was designed in a compact size, combining the function of normal cable gland and venting hole.Brass breathable cable gland could act as cable gland clamping and avoiding the condensation formation.
|
Matetrial |
Nickel Plated Brass |
|
Approvals |
IP68, ISO9000,CE,IP68 |
|

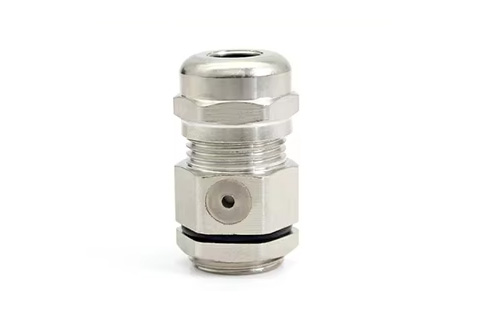

Working Temperature |
-40°C ~ 100°C short time to 120°C |
Inquiry Now >>
|

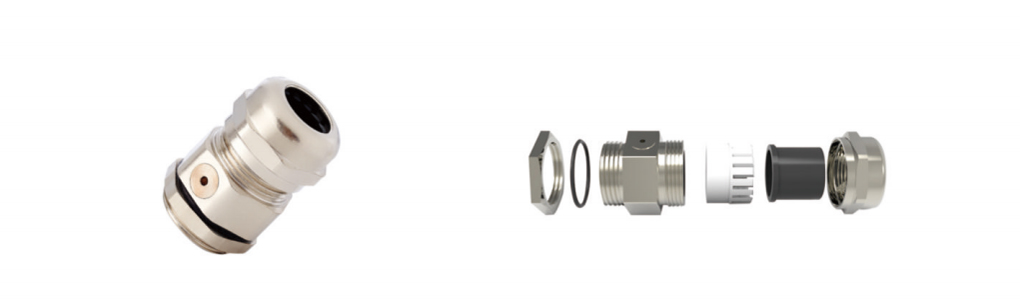

Material: nickel-plated brass Clamping insert: Nylon PA Seal: nitrile rubber(NBR) Protection class:lP68 Ambient temperature: -40°℃ to 100°℃, short time to 120°℃
|
|
|

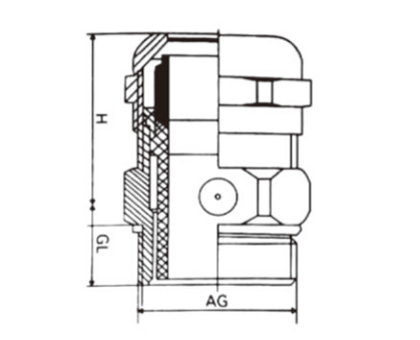

Thread Length |
cable Range (mm) |
Thread Length GL(mm) |
Thread O.D (mm) |
Spanner Size (mm) |
AG(mm) |
|
JX-M12-BR |
3-6.5 |
7 |
11.9 |
17 |
12 |
|
JX-M14-BR |
4-8 |
7 |
13.9 |
19 |
14 |
|
JX-M16-BR |
4-8 |
7 |
15.9 |
21 |
16 |
|
JX-M18-BR |
5-10 |
8 |
17.9 |
22 |
18 |
|
JX-M20-BR |
6-12 |
8 |
19.9 |
24 |
20 |
|
JX-M22-BR |
10-14 |
8 |
21.9 |
27 |
22 |
|
JX-M25-BR |
10-16 |
9 |
24.9 |
27 |
25 |
|
JX-M27-BR |
13-18 |
9 |
26.9 |
30 |
27 |
|
JX-M28-BR |
13-18 |
9 |
27.9 |
30 |
28 |
|
JX-M30-BR |
13-18 |
10 |
29.9 |
36 |
30 |
|
JX-M32-BR |
15-22 |
10 |
31.9 |
38 |
32 |
|
JX-M37-BR |
18-25 |
12 |
36.9 |
42 |
37 |
|
JX-M40-BR |
22-30 |
12 |
39.9 |
46 |
40 |
Special designs for clamplng jaw andsealants fitted with the sealing nut can saveboth time and energy.
Statlc :-40'c-120'C instantanepisly can reach 120℃Dynamic :-20℃-100'C instantanepislycan reach 100℃

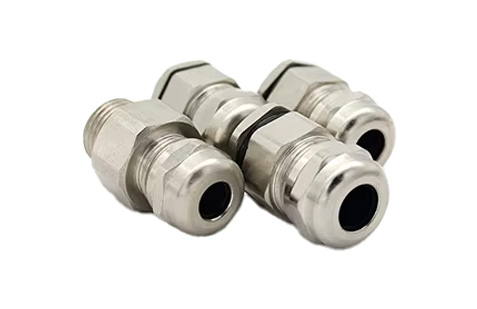

Good thermoplasticity and flexility,light chemical corrosion resistant.
