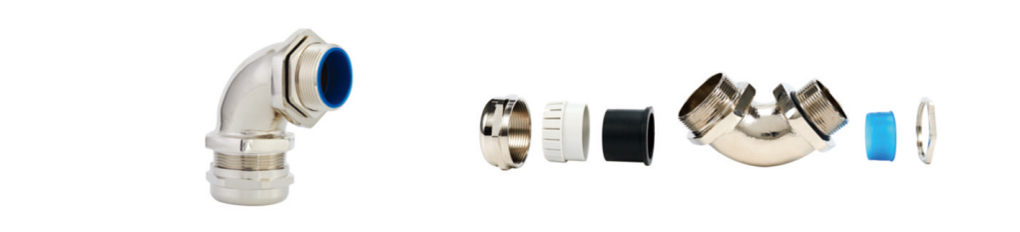

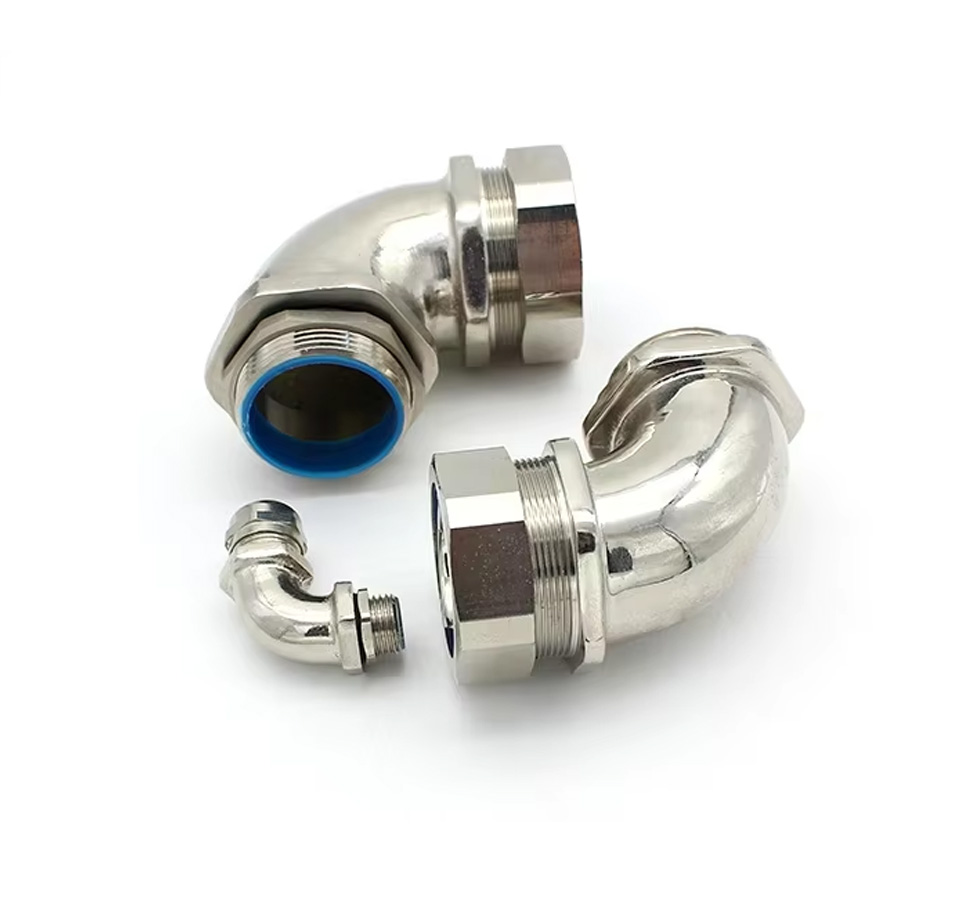

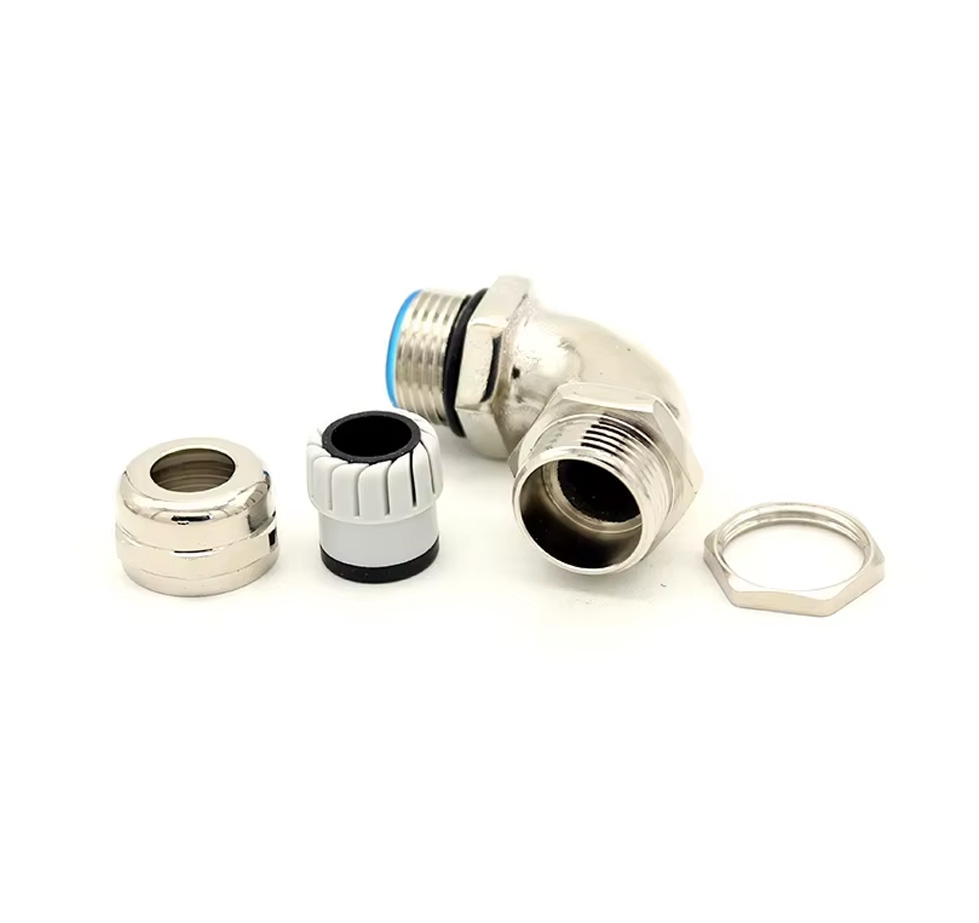

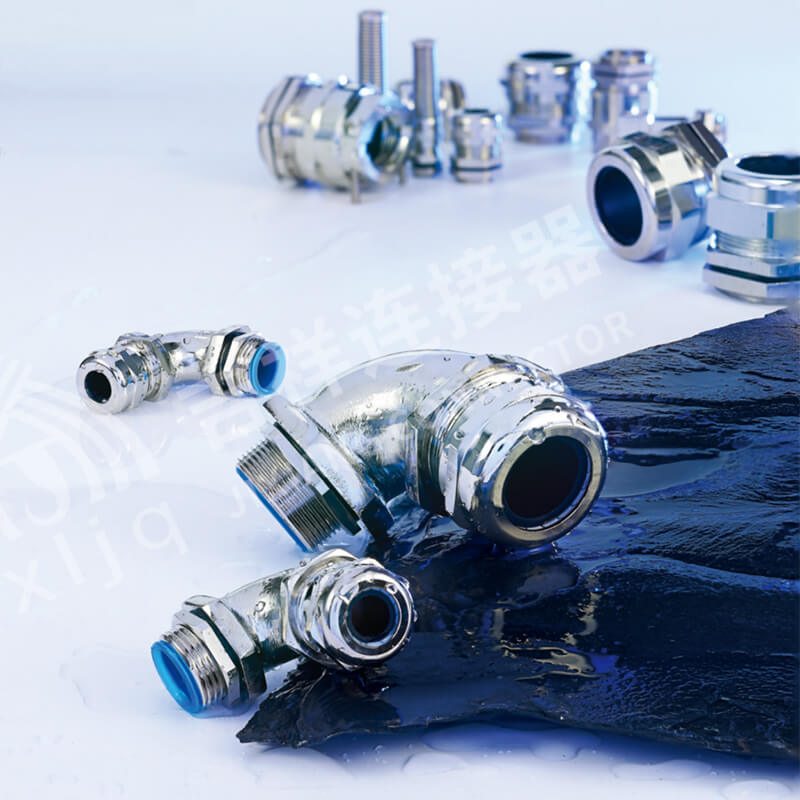

90 Degree Elbow Brass Cable Gland

1. It can be used in flexible metallic conduit or liquid tight conduit in power plant, power transmission system, building factor,etc. And it protects the electrical wire or cable outside the construction and plant.2.Use to positively bone the conduit to a box or enclosure.

Item Name	90 Degree Elbow Metal Conduit Fittings
Matetrial	Nickel Plated Brass
Approvals	IP68, ISO9000,CE
Working Temperature	-40°C ~ 100°C, temporary to 120°

Inquiry Now >>

Product Details

* Seal & clamp system allows the cord connector to tighten in a circular sequence on the sealing ring to give
outstanding strain relief w/o twisting or damaging the cable.
* Nylon material resistant to most common chemicals & solvents.
* Internal Ratchet with Self-Locking feature protects against vibrations
* No disassembly required

Metric thread type

NO.	Cable range	(mm) Thread O.D.	(mm) Thread length	(mm) Total length	(mm) Spanner size
JX-M12-6.5-9D	3-6.5	12	9	45	20/21
JX-M16-6.5-9D	3-6.5	16	9	45	20/21
JX-M16-8-9D	4-8	16	9	45	20/21
JX-M16-10-9D	5-10	16	10	57	20/25
JX-M18-10-9D	5-10	18	10	57	20/25
JX-M20-10-9D	5-10	20	10	57	20/25
JX-M20-12-9D	6-12	20	10	57	24/25
JX-M20-14-9D	10-14	20	15	58	24/30
JX-M22-14-9D	10-14	22	15	58	24/30
JX-M24-12-9D	6-12	24	15	58	24/30
JX-M24-14-9D	10-14	24	15	58	24/30
JX-M25-14-9D	10-14	25	15	58	24/30
JX-M25-16-9D	10-16	25	15	75	28/34
JX-M25-18-9D	13-18	25	15	75	30/34
JX-M27-16-9D	10-16	27	15	75	28/34
JX-M27-18-9D	13-18	27	15	75	30/34
JX-M30-16-9D	10-16	30	15	75	28/34
JX-M30-18-9D	13-18	30	15	75	30/34
JX-M32-18-9D	13-18	32	15	75	30/34
JX-M32-22-9D	15-22	32	15	75	30/34
JX-M32-25-9D	18-25	32	15	90	40/43
JX-M33-25-9D	18-25	33	15	90	40/43
JX-M36-22-9D	15-22	36	15	90	36/43
JX-M36-25-9D	18-25	36	15	90	40/43
JX-M40-25-9D	18-25	40	15	90	40/43
JX-M40-30-9D	22-30	40	15	105	50/55
JX-M40-32-9D	22-32	40	15	115	50/55
JX-M42-9D	22-32	42	15	115	50/55
JX-M48-9D	22-32	48	15	115	50/55
JX-M50-9D	30-38	50	15	115	55/60
JX-M56-9D	30-38	56	15	115	55/60
JX-M60-9D	37-44	60	18	125	65/70
JX-M63-9D	37-44	63	18	125	75/75
JX-M64-9D	37-44	64	18	125	65/70
